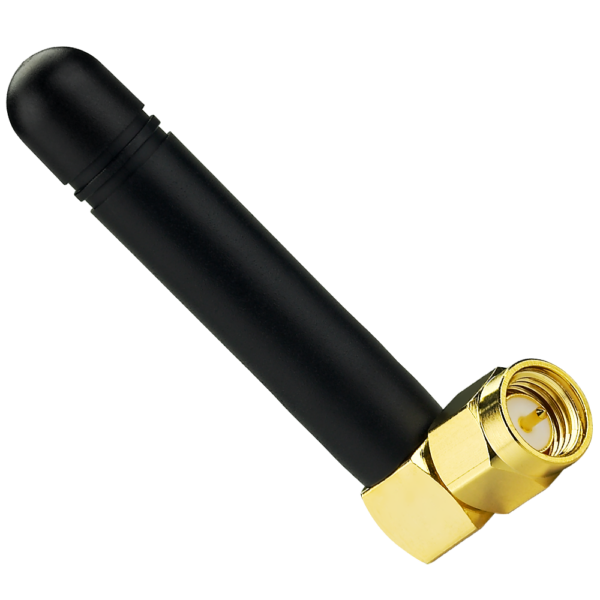

0dBi Penta -Band Monopole Helical Antenna
GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA
824~896/880~960/1710~1880/1850~1990/1710~2170MHz
SMA(M)RA Fixed
Dims: 45*17mm Ø: 7.8mm
Suitable for Non-Terrestrial Network applications
TG.22 3G/2G Cellular Connector Mount Monopole, SMA(M)RA
TG.22.0112
TG.22.0112
TG.22 3G/2G Cellular Connector Mount Monopole, SMA(M)RA
Overview
The TG.22.0112 Penta-band GSM-DCS-PCS-UMTS-CDMA-GPRS-EDGE-HSPA 824MHz to 2170MHz monopole helical antenna is a quality robust antenna with high gain in small form factor.
The TG.22.0112 antenna is recommended for NTN (Non-Terrestrial Network) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Connection is made via fixed right angle SMA(M) connector with a hardened waterproof PU casing, this antenna is the ideal GSM antenna for telematics devices.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Cellular, NTN/SatCom |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 8 |
| Width (mm) | 17 |
| Height (mm) | 44.8 |
| Connector Body Style | Right Angle |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| VSWR | <3.5 |
| Weight (g) | 8 |
| RoHS | Yes |
| Gain (Max) | 4.42 |
