TG.59.0113 – 1.4-6GHz High-Band 5G Terminal Mount Monopole Antenna


5GNR High-Band (1.4-6GHz)
Monopole Antenna Design
90° Rotatable Hinge Design for Optimal Positioning
Dimensions: 72 x Ø10 mm when fully extended
Connector: Hinged SMA Male
CE Certified for RoHS Compliance
REACH Compliant

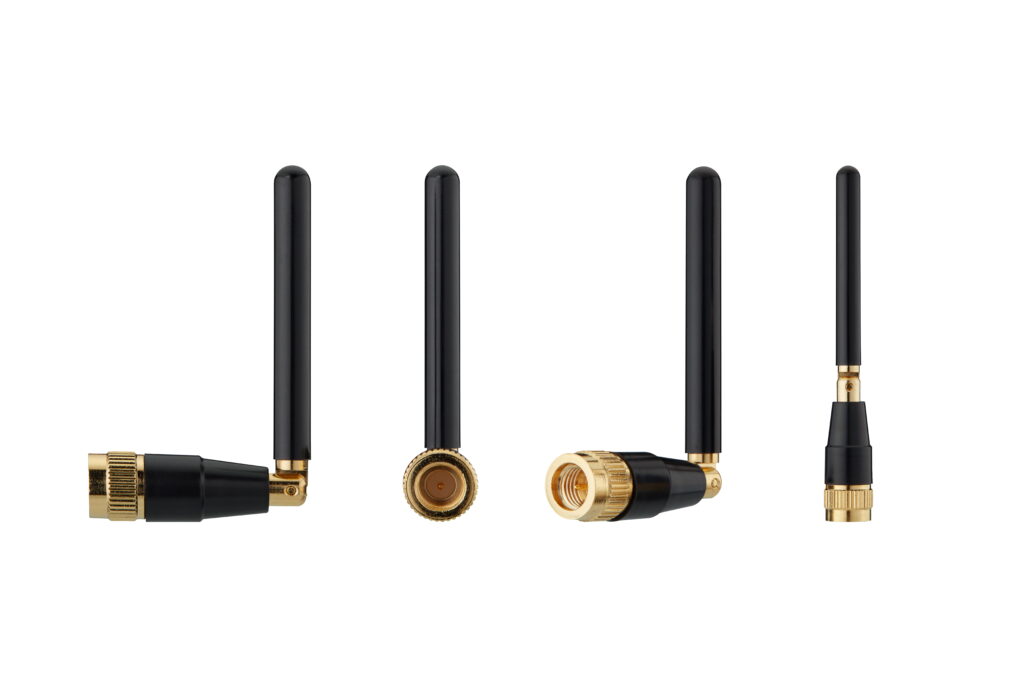

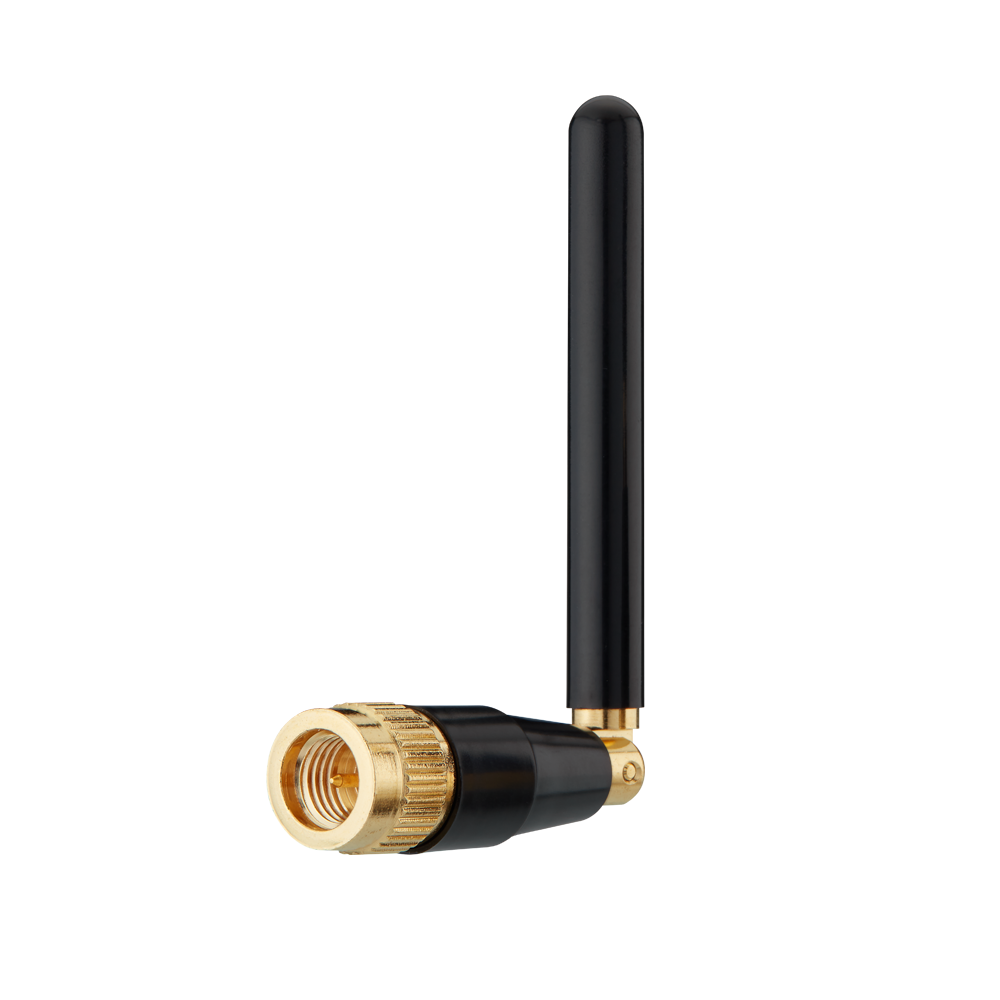

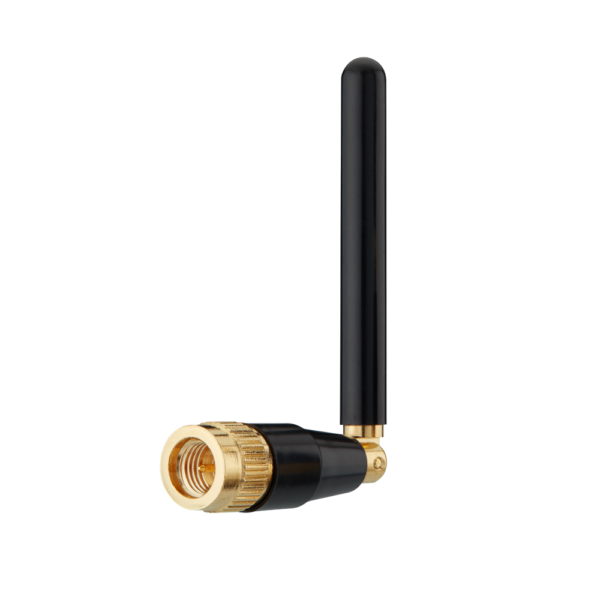

Image TG.59.0113


TG.59.0113 – 1.4-6GHz High-Band 5G Terminal Mount Monopole Antenna


High-Band 5G Terminal Mount Monopole Antenna

The Taoglas TG.59 is a High-band 5G Terminal Mount Antenna. It is one of the smallest high band terminal mount antennas on the market and covers all new worldwide 5G bands between 1400 – 6000MHz as well as legacy 4G/3G bands. Compared to other much larger antennas on the market, it has superior wide-band efficiency characteristics over worldwide 5G/4G higher frequency bands, reaching up to 84% on some bands. The TG.59 is also compatible with most 5G Sub 6GHz cellular bands between 3500-3800MHz and is an Omni-directional antenna that exhibits a uniform 360° radiation pattern on all bands.

The unique rotatable hinge design enables the user to rotate the antenna to the best angle to optimize cellular signal reception. The upper antenna element can rotate in any direction, making it resistant to damage from impact forces, compared to a traditional right angle or fixed angle designs. The small form factor of this antenna, coupled with excellent RF performance and an aesthetic high-end design, make it the ideal cellular antenna choice for typical applications include:
• Gateways, Routers, and Wireless Access Points
• Smart & Connected Home
• Transportation & Telematics
• Telemedicine Devices
• Digital Signage and POS Terminals.
• AR/VR Headsets and Devices
The TG.59, as do all monopole antennas, works best when connected directly to the ground-plane of the device’s main-board. Ideally, it should be directly connected to ground-planes with dimensions greater than 90mm*150mm. Taoglas offers support services to characterize antenna efficiency on your individual device ground-plane.

Contact your regional Taoglas customer support team if you wish to conduct PTCRB or network approvals with this antenna attached to your device. Taoglas can check that the RF integration is correct, and we can also conduct pre-tests to ensure optimized passive and active performance and a smooth and quick certification approval process.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Hinged
Polarity Linear
Frequency Range 1700-6000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
RoHS Yes
Gain (Max) 3.97
Length (mm) 10
Width (mm) 10
Height (mm) 72
Weight (g) 8
