Thunder THDRX2PP Integrated Wideband 5G/4G Directional Antenna for DIGI IX20 including PoE Passive

Integrated Wideband 5G/4G Directional Antenna for DIGI IX20

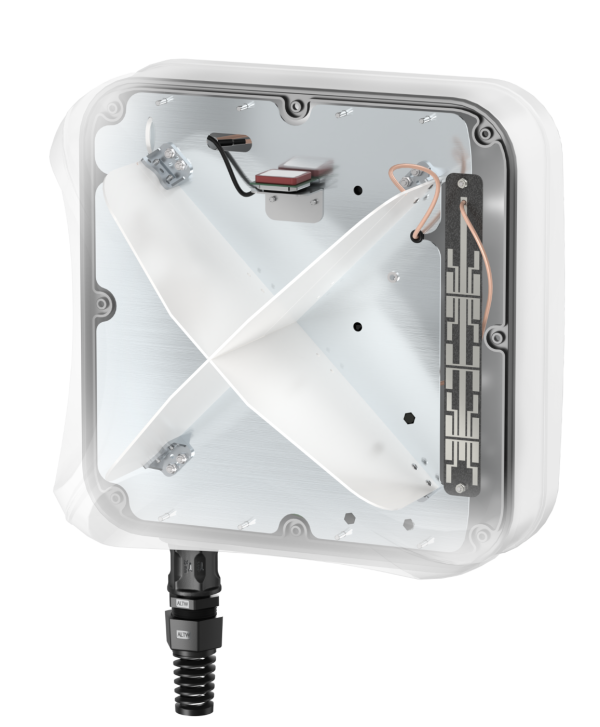

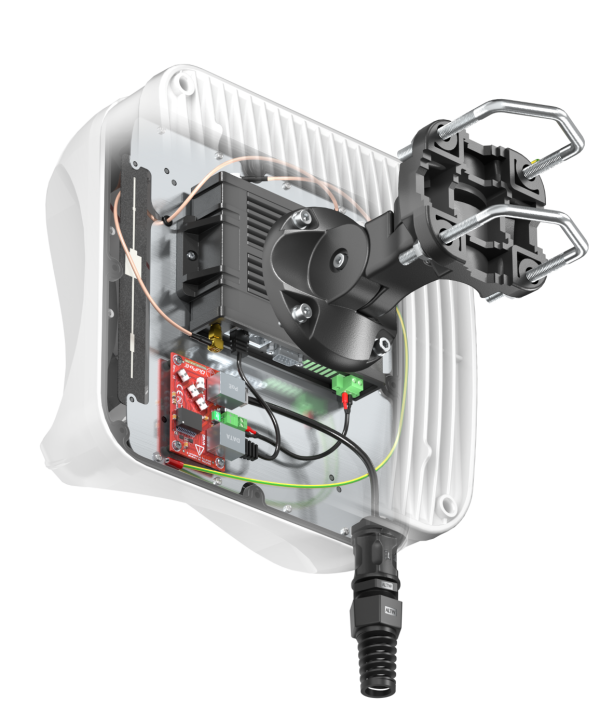

The Taoglas THDRX2PP for DIGI IX20 Routers is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. It delivers reliable, high-speed wireless connectivity in even the most demanding environments. This all-in-one unit integrates high-gain directional 5G/4G and omni Wi-Fi® antennas with DIGI routers into a compact, rugged IP67-rated enclosure. If you use DIGI IX20 with the THDRX2PP Thunder Directional antenna, you get an integrated complete solution with embedded router and multi-band antennas in one enclosure.

Typical applications include:

• Remote and Hybrid Work Environments
• Branch and Retail Locations
• Industrial and Rugged Environments
• High-Bandwidth Applications
• Critical Communications and Public Safety

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THDRX2PP is a fantastic solution for wideband cellular and Wi-Fi® applications.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source.

Contact your regional Taoglas customer support team for more information.
