- Integrated Wideband 5G/4G Omni Antenna for DIGI IX20
- Wideband 5G/4G, covering 600-6000 MHz
- 2x 5G/4G Antennas
- 1x Wi-Fi® Antenna
- 1x GNSS Antenna
- Wall / Pole mount antenna
- IP67 rated waterproof enclosure
- Connector: RJ45
- Dimensions: 272 x 276 x 96 mm
- RoHS and Reach Compliant
Thunder THORX2PP Integrated Wideband 5G/4G Omnidirectional Antenna for DIGI IX20 including PoE Passive
THORX2PP
THORX2PP
Thunder THORX2PP Integrated Wideband 5G/4G Omnidirectional Antenna for DIGI IX20 including PoE Passive
Contact for Pricing/Information
Reach out to our Public Safety & Critical Infrastructure Team for more information and pricing.
Overview
Integrated Wideband 5G/4G Omnidirectional Antenna for DIGI IX20

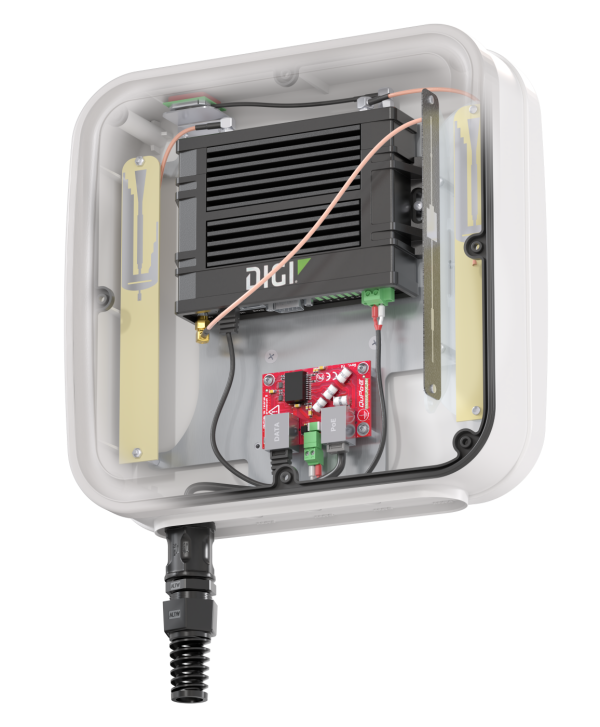

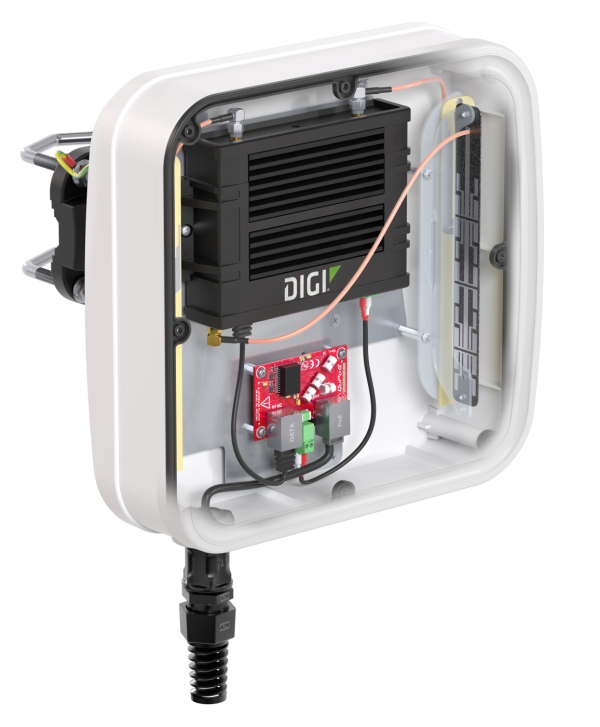

The Taoglas THORX2PP for DIGI IX10 Routers is a perfect outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. It delivers reliable, high-speed wireless connectivity in even the most demanding environments. This all-in-one unit integrates high-gain omnidirectional 5G/4G, Wi-Fi®, and GNSS antennas with DIGI routers into a compact, rugged IP67-rated enclosure. If you use DIGI IX20 with the THORX2PP Thunder Omnidirectional antenna, you get an integrated complete solution with embedded router and multi-band antennas in one enclosure
Typical applications include:
- Remote and Hybrid Work Environments
- Branch and Retail Locations
- Industrial and Rugged Environments
- High-Bandwidth Applications
- Critical Communications and Public Safety
The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-6000 MHz, the THORX2PP is a fantastic solution for wideband cellular applications.
The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit tor improper connection.
Contact your regional Taoglas customer support team for more information.
Video
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 75 |
| Mounting Style | Pole, Wall |
| Termination Style | Connector Mount |
| Connector Type | RJ45 |
| Length (mm) | 276 |
| Width (mm) | 272 |
| Height (mm) | 100 |
| Cable Type | n/a |
| Connector Body Style | Straight |
| Polarization | Vertical |
| Frequency Range | 600 - 6000 MHz |
| Connector Polarity | Normal |
| VSWR | <2 |
| Weight (g) | 1800 |
| RoHS | Yes |
| Gain (Max) | 7 |
