New Released Apr 23, 2025

Thunder Integrated 5G/LTE Directional Antenna for Ericsson R1900

THDR19

Integrated 5G/LTE Directional Antenna for Ericsson R1900
Multi-band 5G, Wi-Fi®, Bluetooth®, and GPS, covering 600-7125 MHz
Wall / Pole mount antenna
IP68 rated waterproof enclosure
Connector: RJ45
Dimensions: 486 x 292.2 x 210mm
RoHS and Reach Compliant

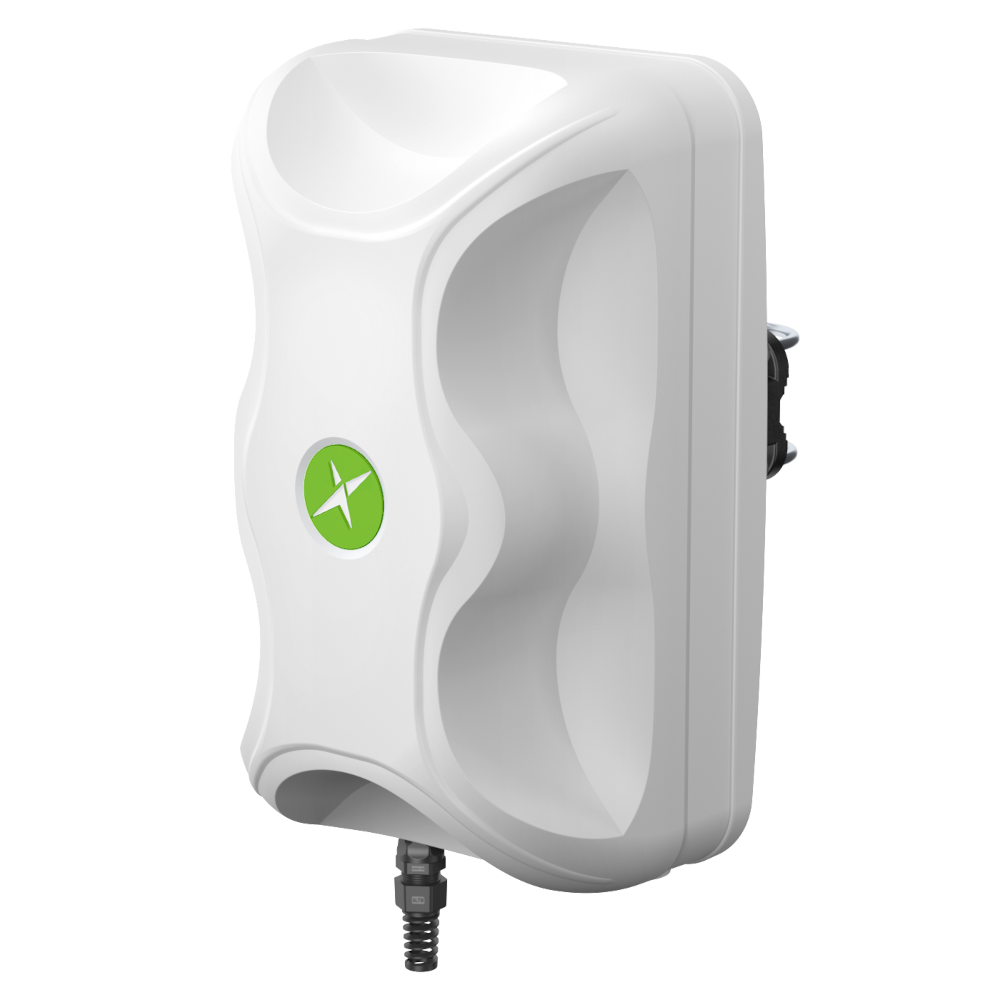

Image THDR19

THDR19

Thunder Integrated 5G/LTE Directional Antenna for Ericsson R1900

Overview

Integrated Multi-Band 5G/LTE Directional Antenna for Ericsson (Cradlepoint) R1900

The Taoglas THDR19 Integrated Directional all-in-one antenna for Ericsson R1900 routers is ideal for connections over long distances to base station. It has embedded directional 5G, Wi-Fi®, Bluetooth®, and GNSS antennas. If you use the Ericsson R1900 router with the THDR19 Thunder Integrated Directional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure. It is the first choice for fixed installations in industrial environment.

Typical applications include:

– Critical Communications and Public Safety
– Transportation & Fleet Management
– Industrial and Rugged Environments
– Enterprise & IoT Deployments

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THDR19 is a fantastic solution for 5G, Wi-Fi®, Bluetooth®, and GNSS applications.

Contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
IP Rating IP67
Impedance 50
Minimum Operating Temperature -40
Maximum Operating Temperature 75
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type RJ45
Length (mm) 486
Width (mm) 292.2
Height (mm) 210
Cable Type n/a
Connector Body Style Straight
Polarity RHCP, Vertical
Frequency Range 600MHz - 7125MHz
Connector Polarity Normal
VSWR <2
Weight (g) 1800
RoHS Yes
Gain (Max) 7.5
