WCM.01.0151W 2.4GHz Button Antenna


2400MHz to 2500MHz Antenna
2dBi-5dBi Peak Gain
60%+ Efficiency
RP SMA(M) Connector
IP67 Housing
Dimensions: 19.8*14.3*16.4mm
RoHS and REACH Compliant

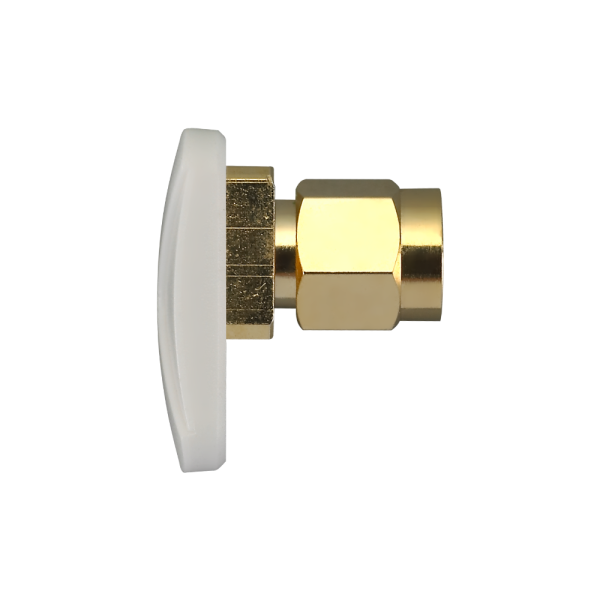

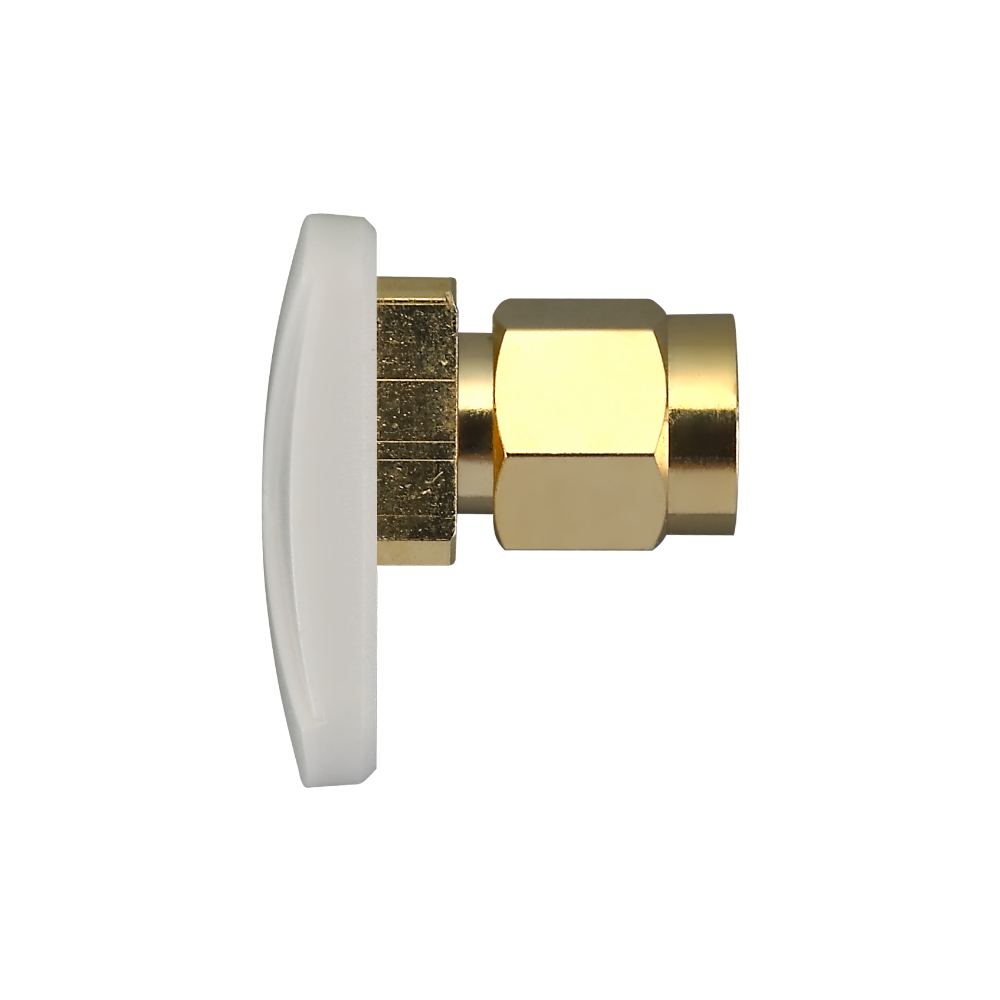

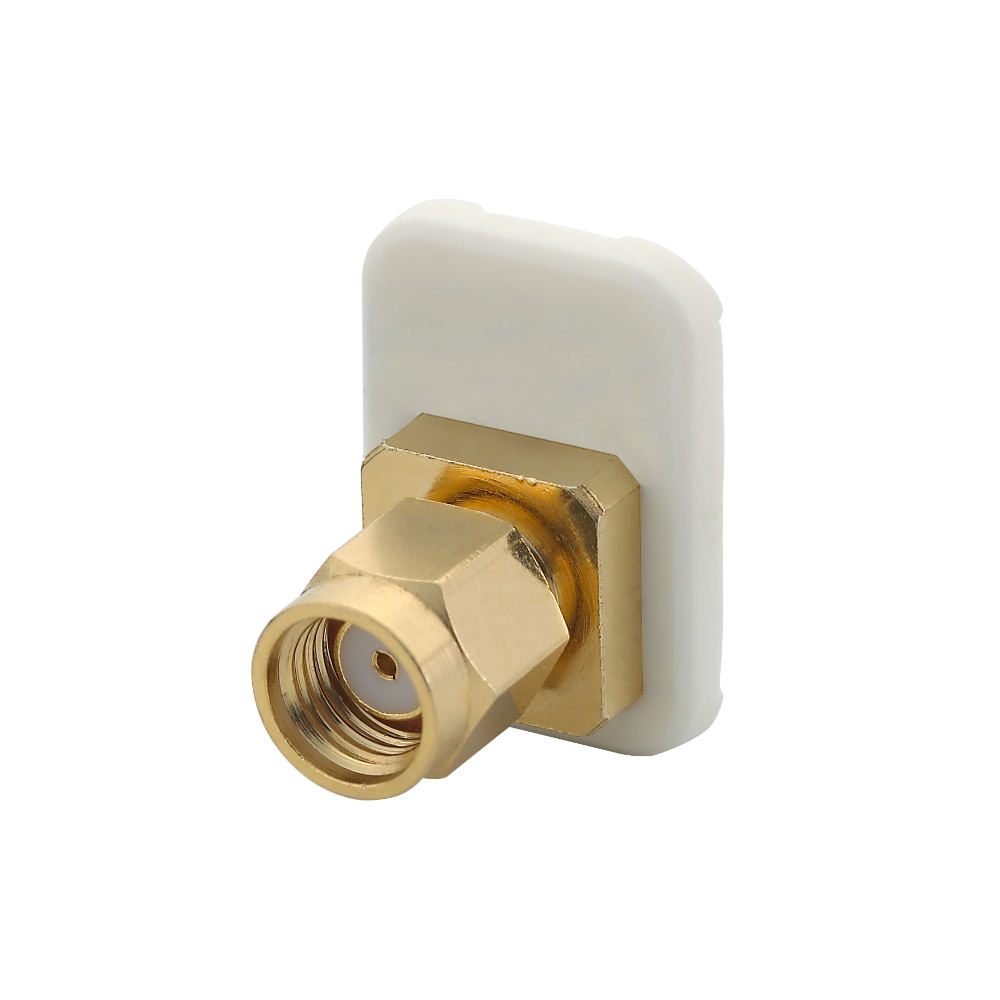

Image WCM.01.0151W


WCM.01.0151W 2.4GHz Button Antenna


Smallest External Wi-Fi/Bluetooth Antenna

The WCM.01W 2.4GHz antenna is the smallest external Wi-Fi/Bluetooth antenna in the market, fitting into spaces other traditional monopoles, dipole or rubber ducky antenna cannot go. A unique PIFA design ensures omnidirectional gain across 2.4GHz to 2.5GHz ensuring constant reception and transmission to make it a great antenna for 2.4GHz Wi-Fi and Bluetooth applications.

This antenna is the ideal antenna for UAV applications as it is one of the Smallest External Wi-Fi/Bluetooth Antenna’s on the market

This antenna features greater than 60% efficiency when connected directly to the ground plane of the device. Typical applications include Application Points, Routers, IoT M2M devices, Smart Home applications. This antenna comes with an RP SMA(M) to be compatible with most Wi-Fi applications and routers in the market. The WCM.01 antenna housing is also IP67 water resistant. The antenna should be mounted on the edge of the main PCB ground-plane of the device. Due to its monopole design, relatively larger ground-planes will increase the
efficiency and peak gain of the antenna. The ideal position for the antenna to radiate is mounted clear of metal housings. The connector is customizable subject to minimum order quantities and possible NRE. Contact us at your regional Taoglas sales office for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type RP-SMA
Connector Body Style Straight
Polarity RHCP
Frequency Range 2.4GHz
Connector Polarity Reverse
Cable Length (mm) n/a
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 5.8
Wi-Fi Bands 2.4GHz
Length (mm) 19.8
Width (mm) 16.4
Height (mm) 14.3
Weight (g) 6
