WM.24 – Cyclops 2.4GHz Wall Mount Flexible Whip Antenna

WM.24.A.305111

Wi-Fi 2.4GHz Whip Antenna
Wall-Mount Bracket
Flexible Inner Steel Core Whip
IP65 Waterproof
SMA(M) ST connector
3m Low loss CFD-200 cable
The cable is hidden internally in the Bracket
RoHS and REACH Compliant

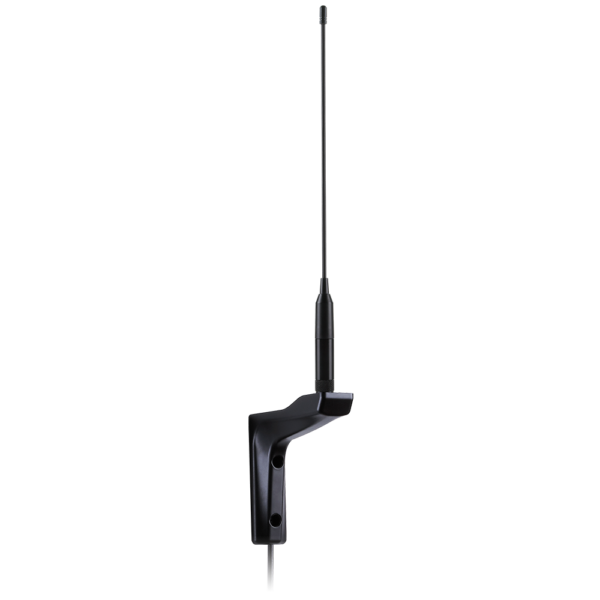

Image WM.24.A.305111

WM.24.A.305111

WM.24 – Cyclops 2.4GHz Wall Mount Flexible Whip Antenna

Overview

The WM.24 is a 2.4GHzflexible whip antenna with a screw mounted wall mount L bracket. The radiation pattern is omnidirectional in the azimuth, allowing for large coverage range in typical indoor or outdoor installations. Peak gain, average gain/efficiency are both optimized to provide extended coverage area in the azimuth (horizontal direction), while also maintaining an Omni-directional pattern forclose in reception/transmission.

Typical Applications include:
  • Remote Monitoring
  • Connected Enterprise
  • Agriculture
  • Security

This antenna provides high efficiency while fixed on the L-bracket. The whip is made up of a flexible inner steel core covered by TPU, so it is extremely resistant to collisions and maintaining its original shape and RF performance. The whip and the internal connection to the bracket is IP65 rated waterproof. The whip can be removed by unscrewing. The bracket allows complete concealment of the cable for a more secure integration and cleaner installation. The cable can also be routed out of the back wall of the bracket into the interior of the mounting wall for added security against vandalism. The standard version comes with 3 metres of extremely low loss CFD-200 cable (0.3dB against 0.7dB for RG-58) to allow for flexibility of placement.

Technical Specification
Name Value
Antenna Type Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Solder
Termination Style SMD/SMT
Antenna Connector Type SMA
Cable Type None
Connector Body Style Straight
Polarity Linear
Frequency Range 2400-2500/4900-5800MHz
Connector Polarity Normal
Cable Length (mm) 300
Packaging PE Bag, Carton
VSWR 2:1
IP Rating IP65
RoHS Yes
Gain 3.35
Length (mm) 16
Width (mm) 16
Height (mm) 307
Weight (g) 330

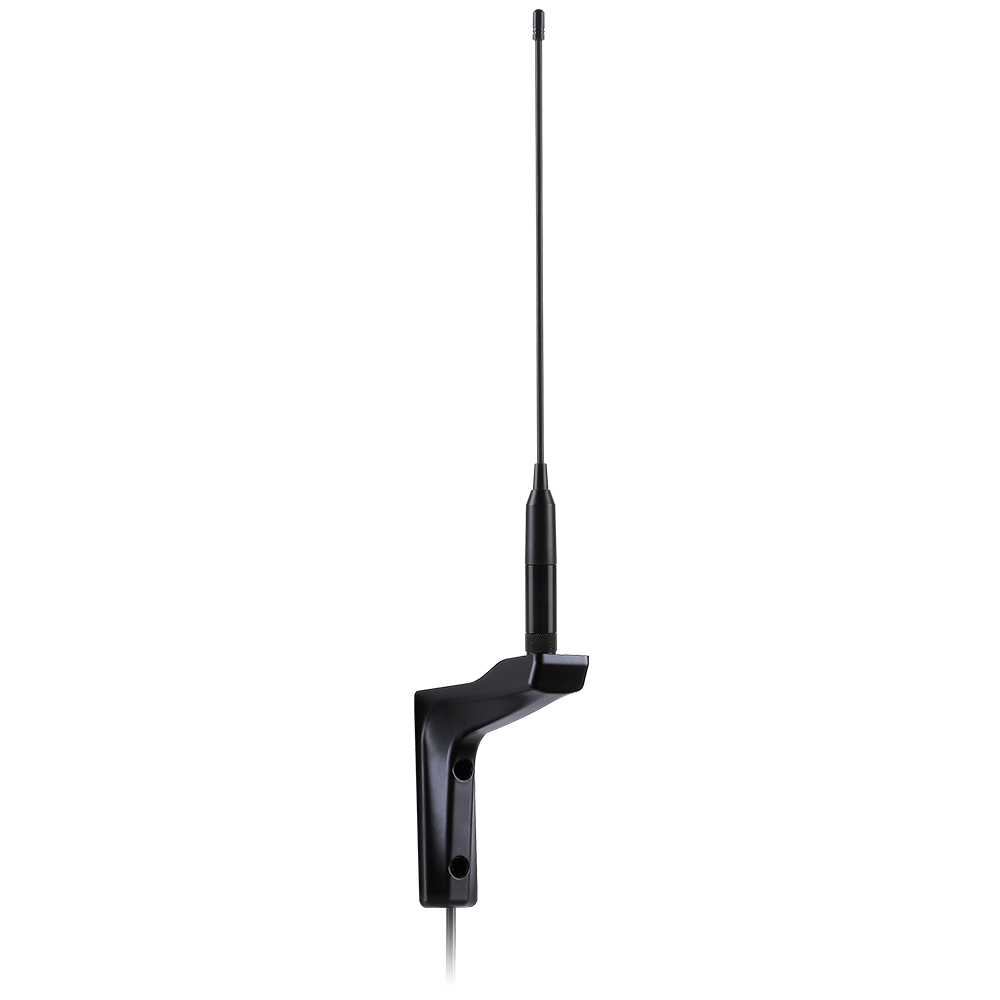

Image WM.24.A.305111
