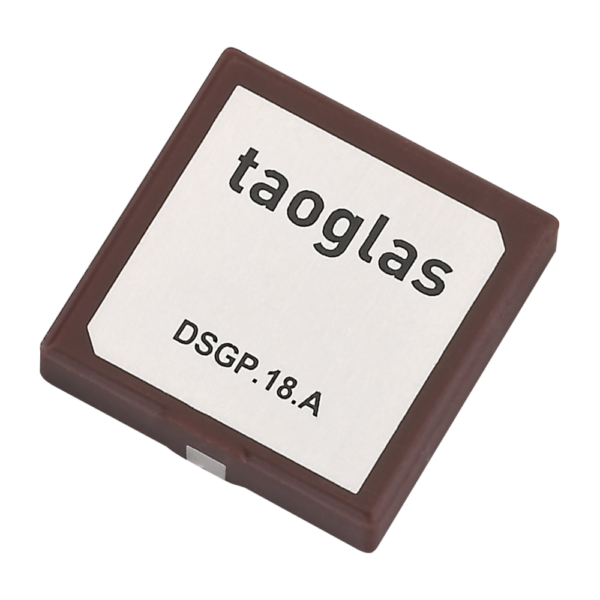

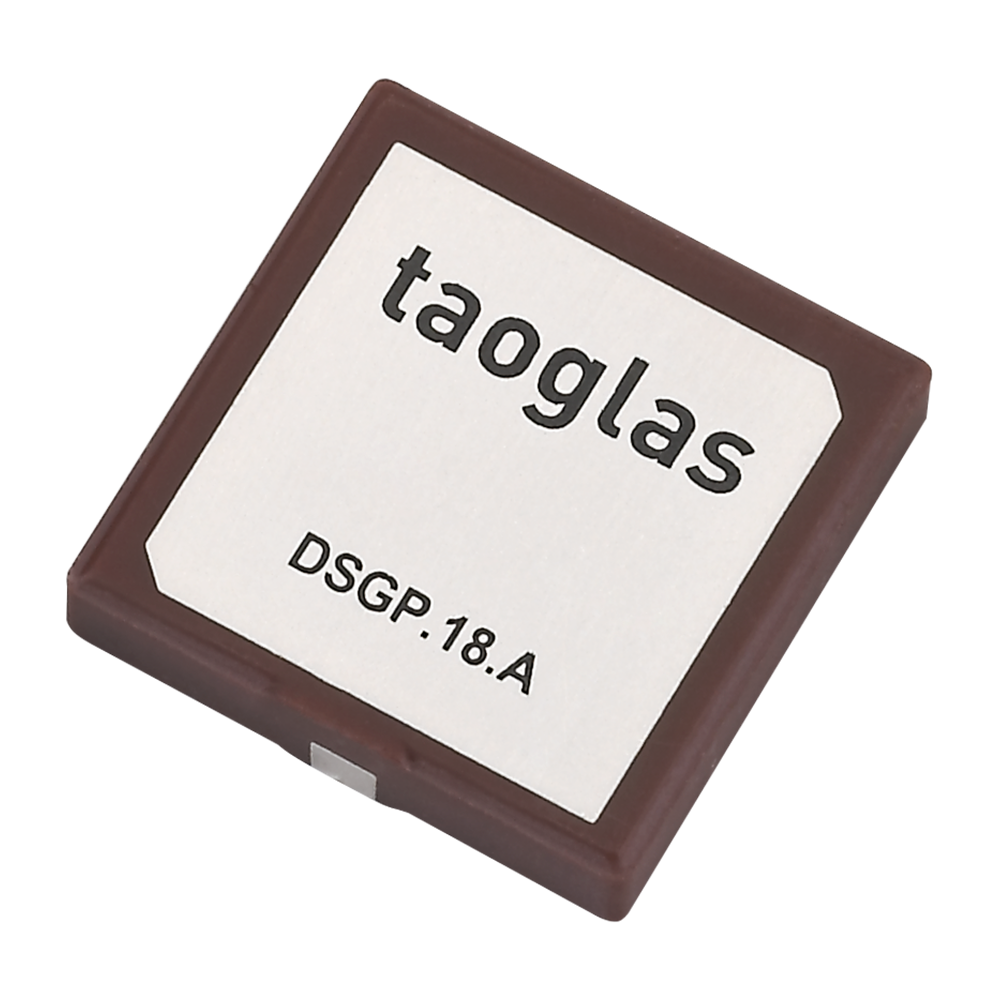

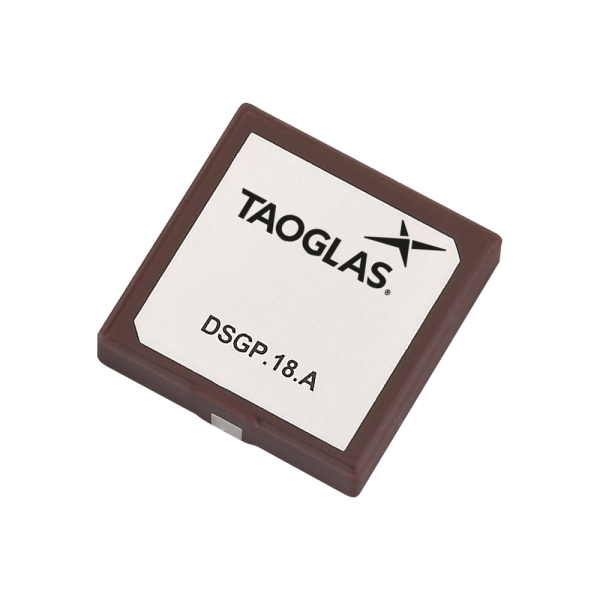

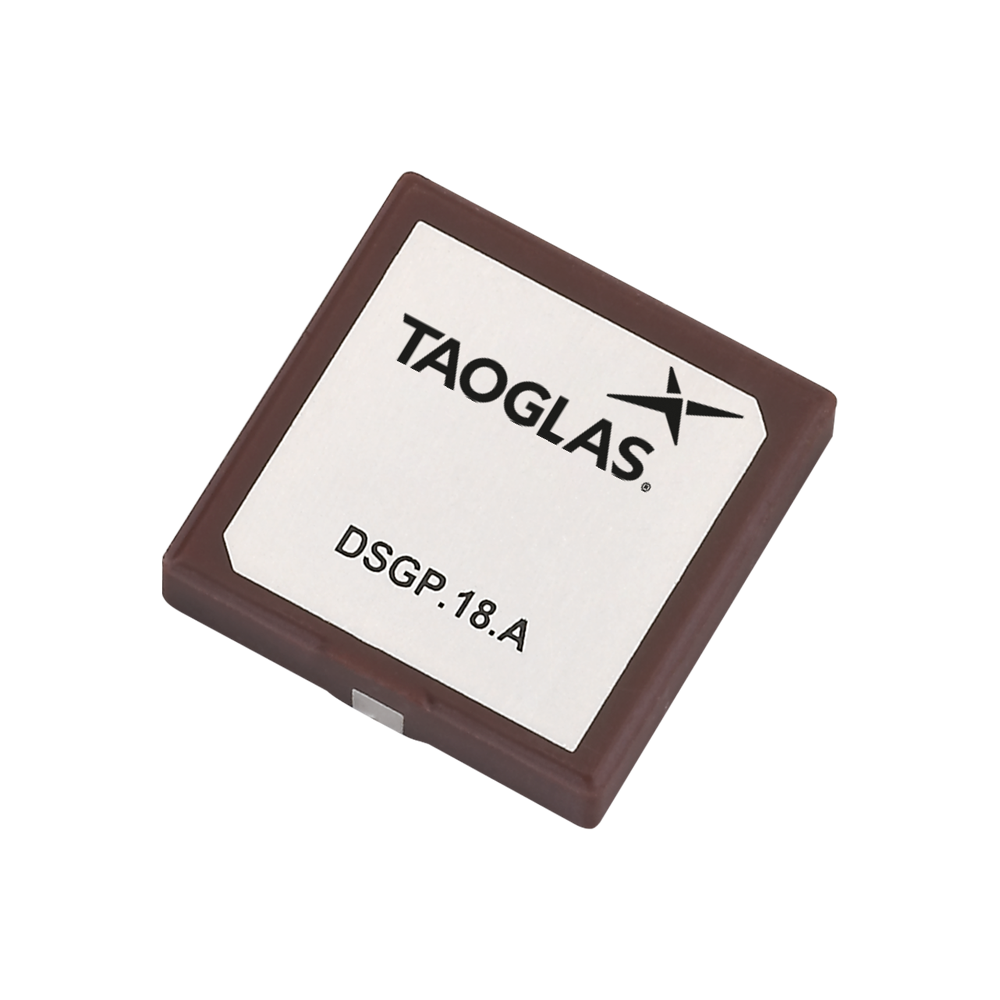

DSGP.1575.18.4 18*18*4mm GPS L1 & GALILEO E1 Ceramic Patch

DSGP.1575.18.4.A.02

4.20dBi Peak Gain for GPS/GALILEO Band
SMT Direct Mount Ceramic Patch Antenna
Manufactured in an IATF16949 Approved Facility
Dimensions: 18*18*4mm
RoHS and REACH Compliant

Image DSGP.1575.18.4.A.02

DSGP.1575.18.4.A.02

DSGP.1575.18.4 18*18*4mm GPS L1 & GALILEO E1 Ceramic Patch

Overview
Low Profile GPS L1 / GALILEO E1 Passive Patch Antenna for Small Telematics Devices

The DSGP.1575.18.4.A.02 is an 18mm square ceramic low profile GPS L1 / GALILEO E1 passive patch antenna for small telematics devices. Just 18mm square with a height of just 4mm, this small antenna is ideal for space-constrained applications in telematics devices, vehicle tracking/fleet management systems, wearables, and navigation.

The antenna has been tuned on a 50*50mm ground plane, working at 1575.42MHz with a 4.20dBi gain. The radiation pattern is broadly hemispherical with a stable gain across elevations. The ceramic patch is mounted via SMT process, ideal for high volume low-cost assembly. It is manufactured and tested in an IATF16949 first tier automotive approved facility.

For further optimization to customer-specific device environments, custom-tuned patch antennas can be supplied, subject to NRE and MOQ. For more details please contact your regional Taoglas sales office.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain 4.2
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) N/A
Packaging Carton
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 18
Width (mm) 18
Height (mm) 4
Weight (g) 5.8
