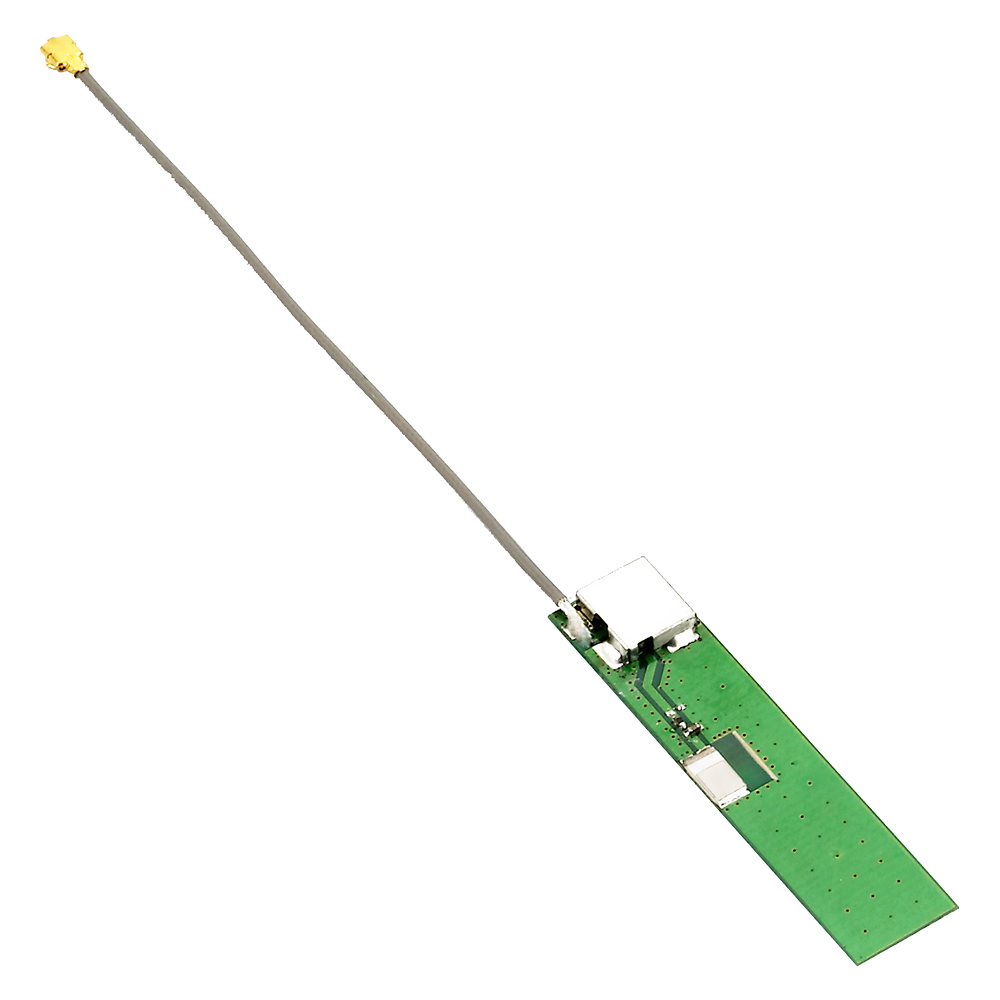

ALA.01 GPS/GALILEO Active Loop Antenna 45*10*2.3mm, 95mm Ø1.13, I-PEX MHF® I (U.FL)

ALA.01.07.0095A

1575MHz GPS/GALILEO Ceramic Active Loop Module
16dB One Stage
95mm Ø1.13 I-PEX MHF® I (U.FL comp)
45*10*2.3mm

Image ALA.01.07.0095A

ALA.01.07.0095A

ALA.01 GPS/GALILEO Active Loop Antenna 45*10*2.3mm, 95mm Ø1.13, I-PEX MHF® I (U.FL)

Overview

The active loop antenna ALA.01 is best suited for applications where omni-directionality is important. The average gain is similar to an 18mm active patch antenna but in a much narrower profile, only 2.3mm at its highest point, allowing this antenna to be used perpendicular to the device main-board, or placed adjacent to the top or bottom of device main board. A one-stage LNA combined with a SAW filter boosts the S/N (C/N) of the GPS/GALILEO system and helps to overcome some noise effects from today’s crowded device boards that passive antennas cannot resolve. The antenna can be placed in a plastic slot in the device housing. Alternatively, adhesive foam, hot-melt, or non-conductive screws could be used to mount the antenna. The core antenna design principle of loop current flow tends to “lock-out” a lot of surface noise from close circuitry from entering the antenna.

Technical Specification
Name Value
RoHS Yes
Antenna Type GNSS
Mechanical Style PCB
Gain 3.1
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Cable Mount
Termination Style Connector
Antenna Connector Type IPEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) 95
Packaging Reel
VSWR 2
GNSS Bands Single Band
Length (mm) 45
Width (mm) 10.1
Height (mm) 2.3
Weight (g) 1.35
