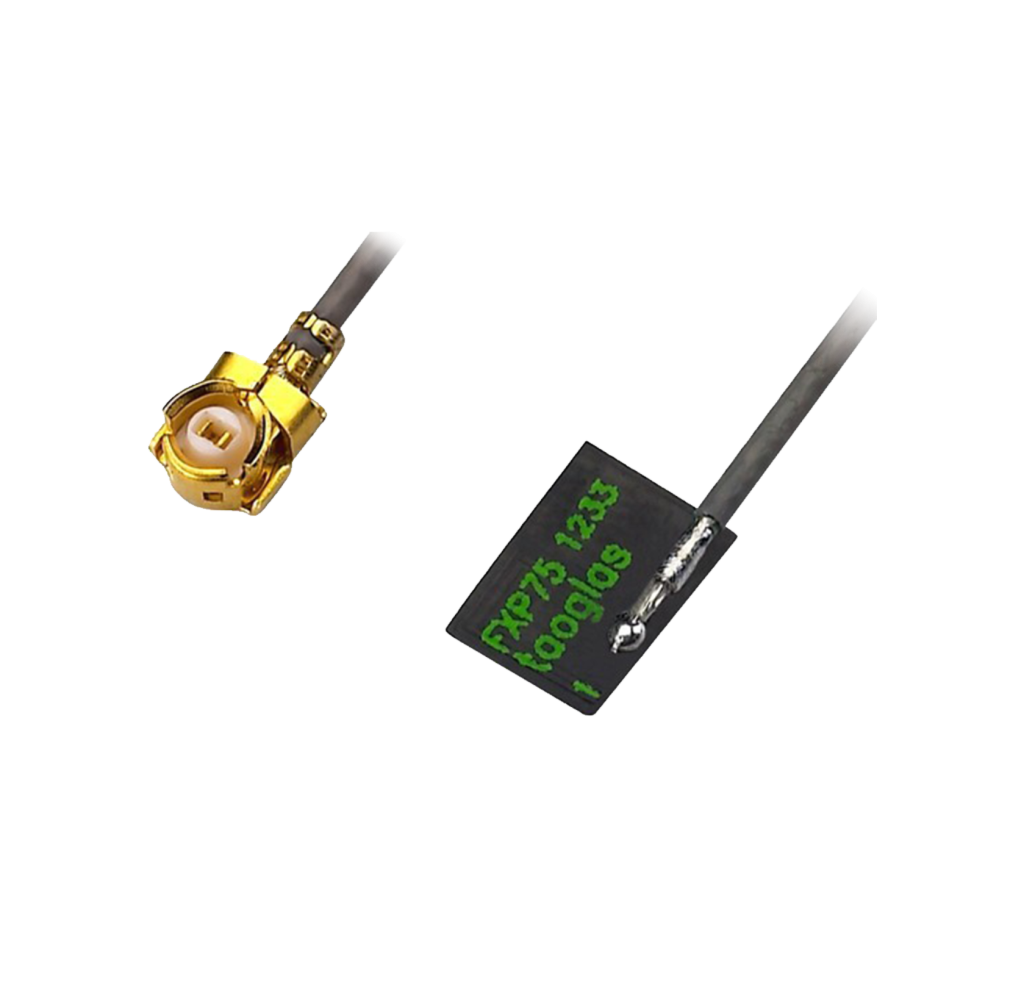

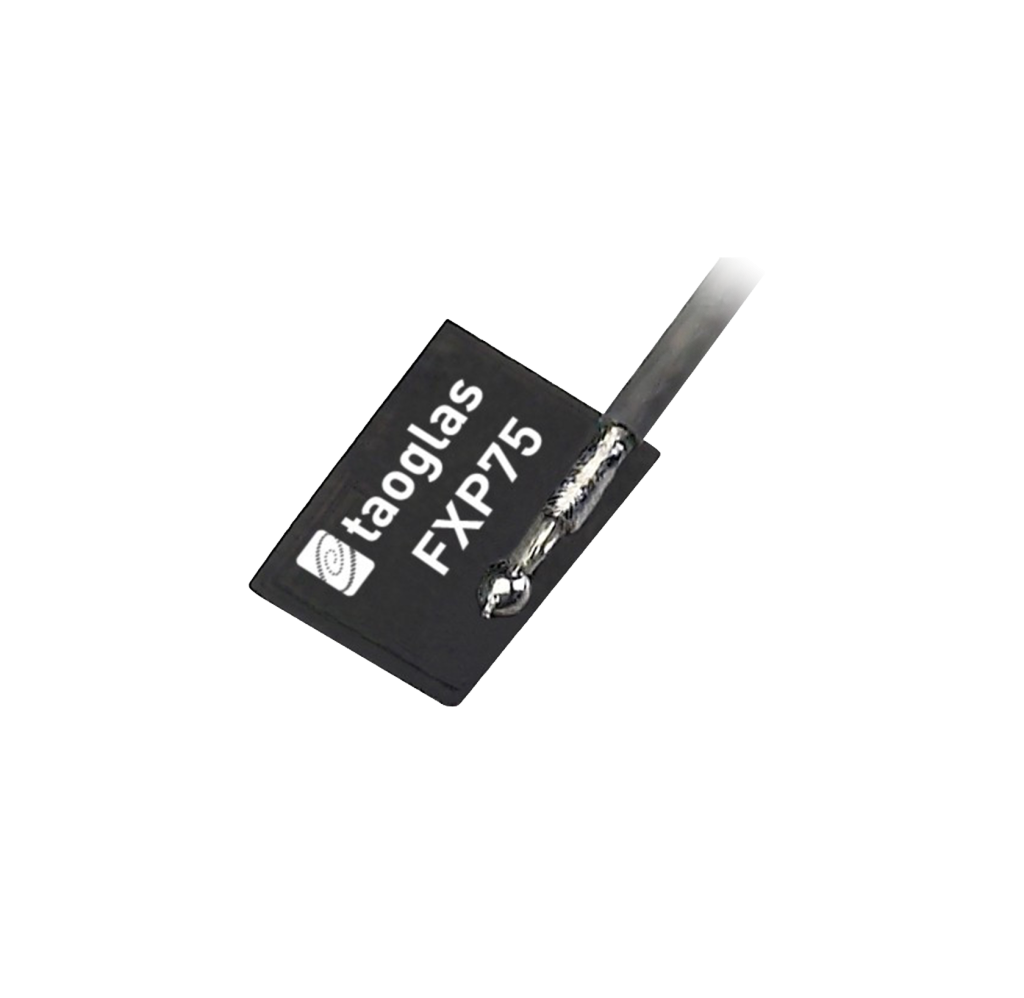

Atom FXP75 2.4GHz Flex Super Micro PCB Antenna, 45mm Ø0.81, I-PEX MHF® I (U.FL)

FXP75.07.0045B

Atom – 2.4GHz Ultra-Miniaturized 2dBi Bluetooth® Antenna
Worldwide smallest cabled 2.4GHz antenna – Ideal for Bluetooth® earphones
Peak Gain 2.5dBi, Efficiency 45%
Ø0.81, 45mm cable, I-PEX MHF® I (U.FL comp)
Flexible Ultra Low Profile
Dims: 5.9*4.1*0.24mm
Patent Pending

Buy Now Get Quote Request Sample
Image FXP75.07.0045B

FXP75.07.0045B

Atom FXP75 2.4GHz Flex Super Micro PCB Antenna, 45mm Ø0.81, I-PEX MHF® I (U.FL)

Datasheet
Image 3D Model
Image CE Certification
Overview

The FXP75 Atom is a super small monopole ultra-low profile antenna for 2.4GHz band that includes Bluetooth®, Wi-Fi®, ZigBee® and ISM bands application. The FXP75 has a peak gain of 2.5dBi at 2.4GHz and efficiencies of 45%.

This Taoglas patent pending antenna is unique in the market. Two years of constant research and development have created the world’s smallest coax cabled true 2.4GHz antenna. Made from poly-flexible material, the antenna has a tiny form factor of 5.9*4.1*0.24mm and has double-sided 3M tape for easy “peel and stick” mounting.

Technical Specification
Name Value
Technology Embedded Antennas, Wi-Fi®/Bluetooth®
Wi-Fi Bands 2.4GHz
Mechanical Style Flex PCB
Impedance 50
Minimum Operating Temperature -40
Maximum Operating Temperature 85
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHF® I (U.FL)
Length (mm) 5.9
Width (mm) 4.1
Height (mm) 0.24
Cable Type 0.81 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 2.4GHz
Connector Polarity Normal
Cable Length (mm) 45
VSWR 2:1
Weight (g) 1
RoHS Yes
Gain (Max) 2.5
