Evaluation Board for Passive GPS/GLONASS/GALILEO/BeiDou Patch Antenna
BeiDou 1561MHz / GPS-GALILEO 1575MHz / GLONASS 1602MHz
Gain BeiDou 2.5dBi / GPS-GALILEO 1.5dBi / GLONASS 3.5dBi
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Evaluation Board Dimensions: 70*70*mm

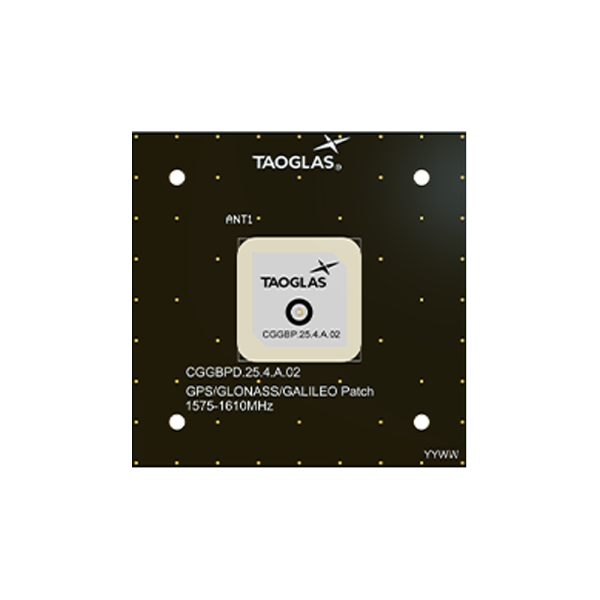

Evaluation Board for CGGBP.25.4.A.02 25*25*4mm GPS/GLONASS/GALILEO/BeiDou Patch Antenna
CGGBPD.25.A
CGGBPD.25.A

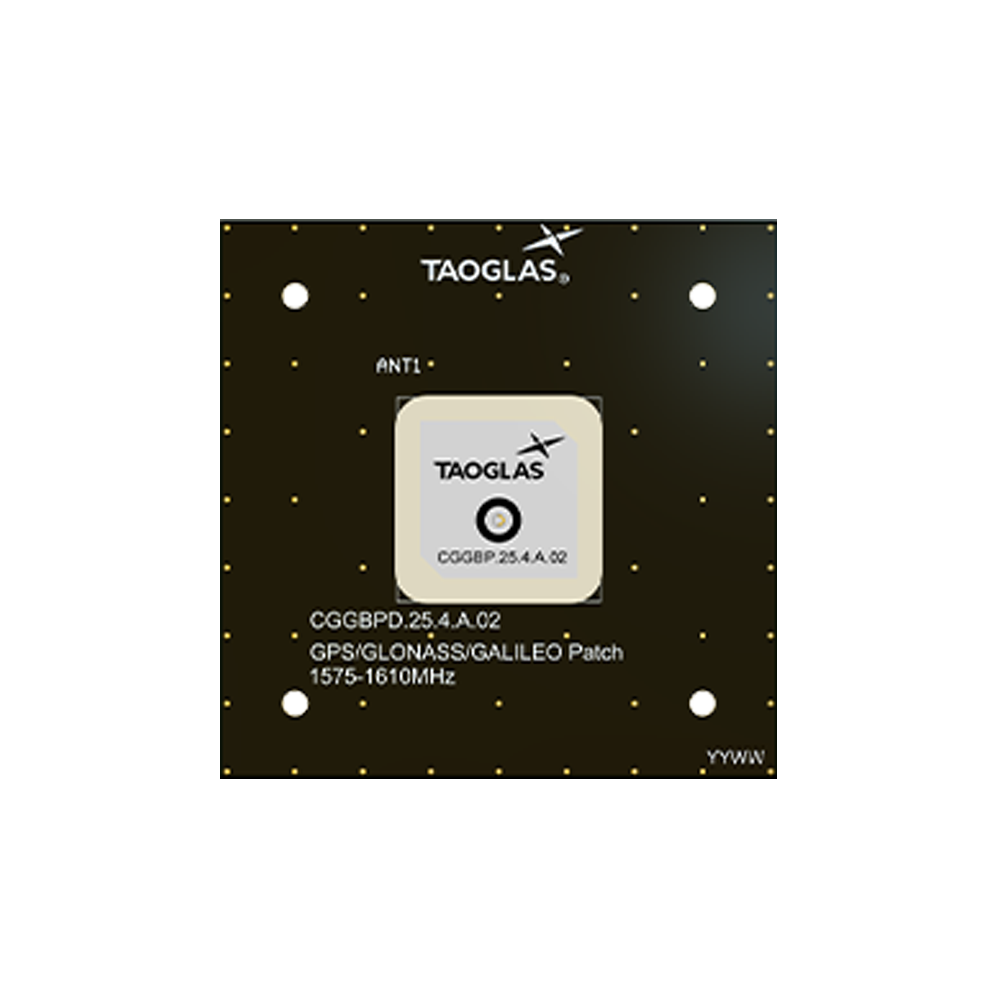

Evaluation Board for CGGBP.25.4.A.02 25*25*4mm GPS/GLONASS/GALILEO/BeiDou Patch Antenna
Overview
Evaluation Board for CGGBP.25.4.A.02 25*25*4mm GPS/GLONASS/GALILEO/BeiDou Patch Antenna
This 25mm square embedded ceramic GPS/GLONASS/GALILEO/BeiDou patch antenna’s wide band of operation leads to excellent gain and radiation pattern stability on all four common commercial GNSS systems worldwide. Compared to using a smaller antenna, this will translate into the GNSS system having much higher location accuracy, improved reliability of lock in urban areas, better signal reception, with more satellites acquired and a quicker time to first fix. The patch is mounted via pin and double-sided adhesive.
Technical Specification
| Name | Value |
|---|---|
| For Use With/Related Products | CGGBP.18.4.A.02 |
| Technology | Evaluation Boards, GNSS |
| Width (mm) | 70 |
| Length (mm) | 70 |
| Height (mm) | 0.3 |
| Materials | Ceramic |
