GPDF254.A – Passive Dual Pin GNSS Patch Antenna 25*25*4 mm

GPDF254.A

Dual-Pin Patch for Lowest Axial Ratio
Covering Bands:
• GPS L1
• GLONASS G1
• Galileo E1
• BeiDou B1
Manufactured and tested in a TS16949 first tier automotive approved facility
Dimensions: 25 x 25 x 4mm
RoHS & Reach Compliant

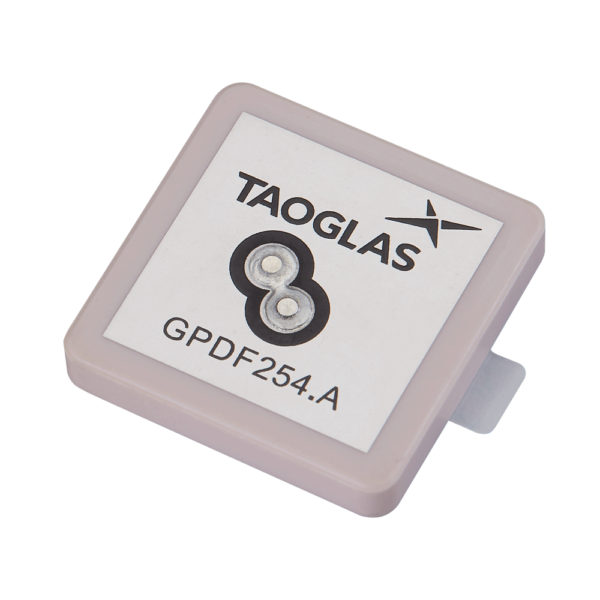

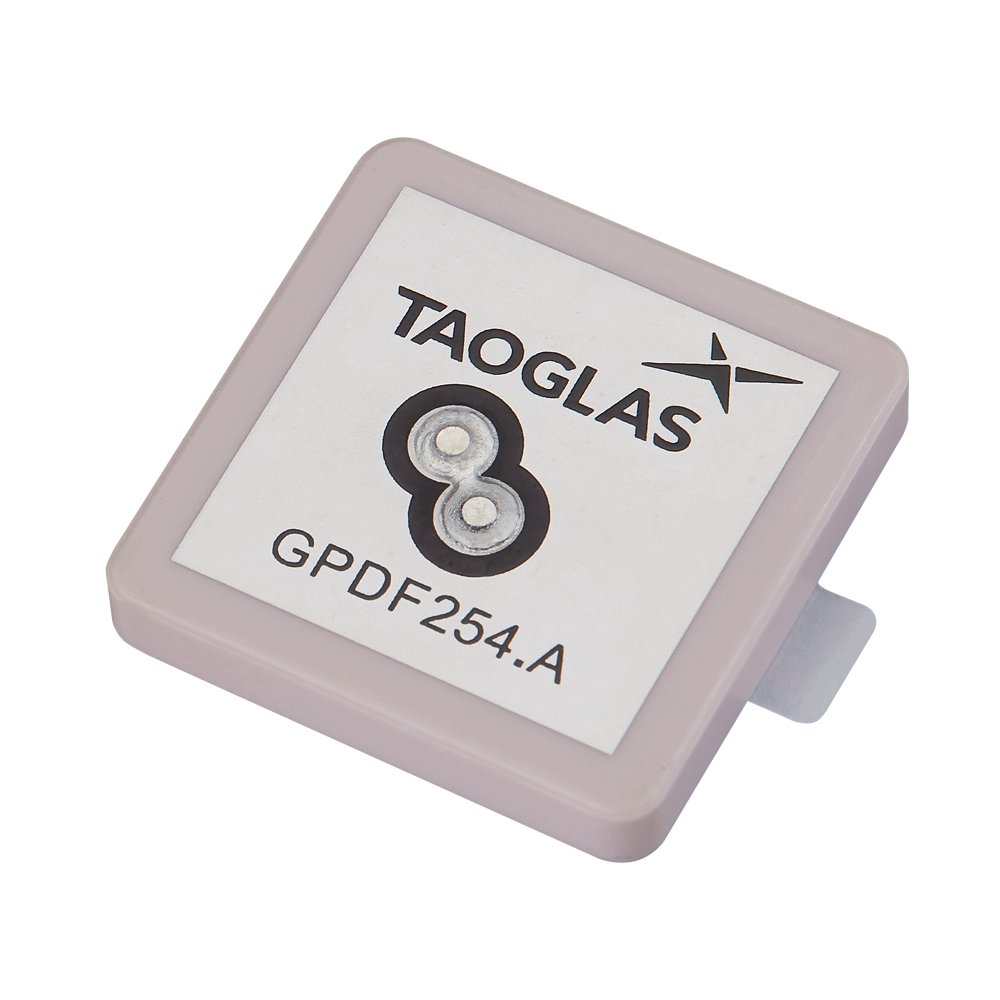

Image GPDF254.A

GPDF254.A

GPDF254.A – Passive Dual Pin GNSS Patch Antenna 25*25*4 mm

Overview

Passive Dual Pin GNSS Patch Antenna

The GPDF254.A is a high performance, single-band passive GNSS L1 antenna that has been carefully designed to provide fantastic positional accuracy on the full GNSS L1 spectrum. It has a dual feed, passive patch design which makes it ideal for next-generation GNSS devices that require excellent positional accuracy in a small form factor. The patch antenna, by means of a double resonance design, has a wide-band operation over GNSS systems including GPS (L1), GLONASS (G1), Galileo (E1) and BeiDou(B1). The 25 mm patch uses a dual-feed configuration to obtain an optimal axial ratio. The GPDF254.A is manufactured and tested in a TS16949 first tier automotive approved facility.

Typical applications include:
• High accuracy positioning and navigation systems
• UAVs, Robotics & Autonomous Vehicles
• Transportation & Telematics
• Precision Agriculture
• RTK Systems

The GPDF254.A is the latest embedded addition to Taoglas’ product portfolio of high precision GNSS antennas. When used on the base and/or the rover as part of an RTK configuration, the GPDF254.A can achieve genuine cm-level accuracy with proven results.

Full integration guidelines are contained in Section 8 of this datasheet including the Taoglas HC125.A hybrid coupler that will be required for use for dual pin feed patch integrations. Two active versions of this antenna, the ADFGP.25A.07.0100C – tuned for a 70*70mm Ground Plane and ADFGP.25E.07.0100C – tuned for free space is available and supplied with 100mm cable and I-PEX MHFI connector as standard.

Contact your local Taoglas Customer Services team for more information on any of the products listed above or for support regarding integration.

Video
Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain 3.1
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Pin
Polarity RHCP
Frequency Range 1561MHz To 1602MHz
Connector Polarity Normal
Cable Length (mm) N/A
Packaging Carton
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 25
Width (mm) 25
Height (mm) 4
Weight (g) 9.7
