Penta-Band Cellular Flexible PCB
850/900/1800/1900/2100MHz
I-PEX MHF® I Connector – 100mm Ø1.13mm
41mm*24mm*1mm

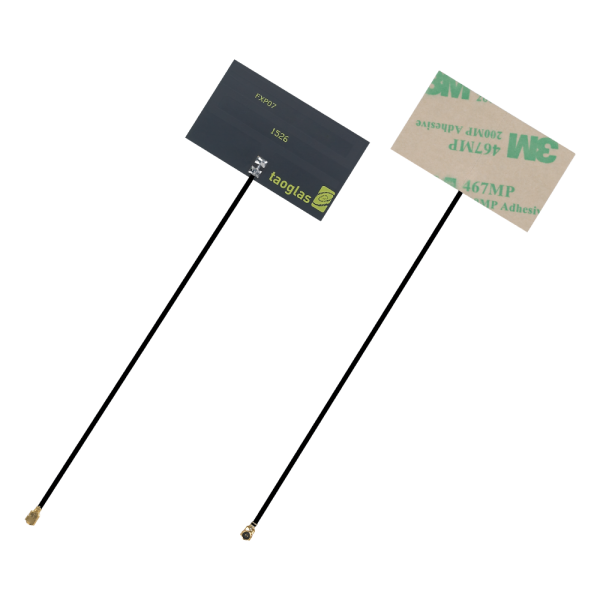

FXP07 Cellular Flexible PCB, I-PEX MHF I ®, 100mm Ø1.13
FXP07.07.0100A
FXP07.07.0100A
FXP07 Cellular Flexible PCB, I-PEX MHF I ®, 100mm Ø1.13
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, Cellular |
| Mechanical Style | Flex PCB |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | I-PEX MHF® I (U.FL) |
| Length (mm) | 41 |
| Width (mm) | 24 |
| Height (mm) | 1 |
| Cable Type | 1.13 Coax |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 100 |
| VSWR | <2.5:1 |
| Weight (g) | 5 |
| RoHS | Yes |
| Gain (Max) | 4 |
