Genesis MA245.LBIC.002 Genesis 4-in-1 GNSS, 2*LTE & WiFi Low Profile Adhesive Mount Antenna 205.8*68*12.4mm

MA245.LBIC.002

Adhesive Mount Combination Antenna
1* GNSS: 3 Meter RG-174 FAKRA Code C Jack Blue
2 * LTE: 3 meter CFD-200 FAKRA Code D Jack Bordeaux Violet
1 * WiFi: 3 meter CFD-200 FAKRA Code I Jack Beige
IP65 Rated Enclosure
Dimensions: 205.8 x 68 x 12.4mm
RoHS & REACH Compliant

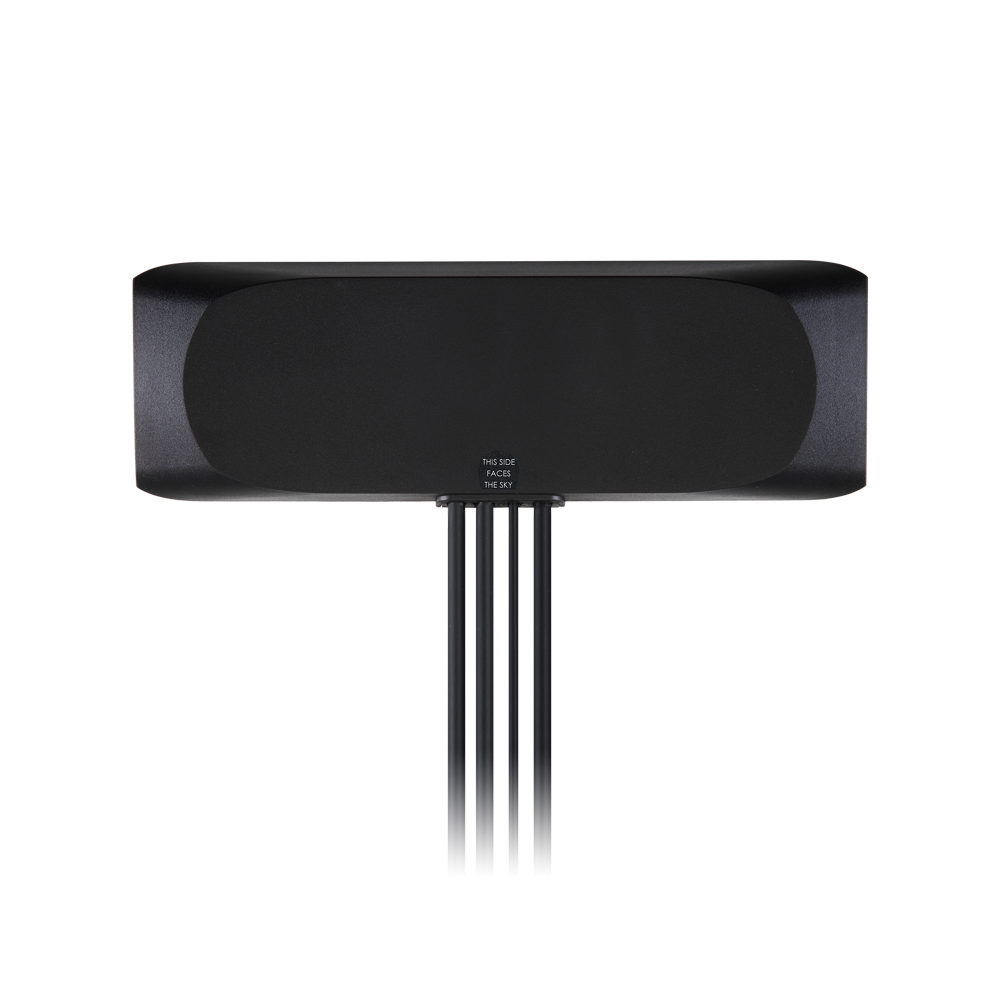

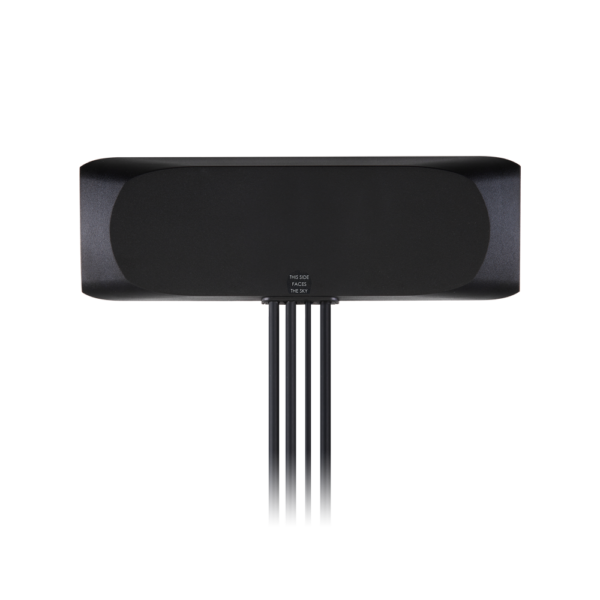

Image MA245.LBIC.002

MA245.LBIC.002

Genesis MA245.LBIC.002 Genesis 4-in-1 GNSS, 2*LTE & WiFi Low Profile Adhesive Mount Antenna 205.8*68*12.4mm

Overview
4-in-1 M2M antenna for use in telematics, transportation, and remote monitoring applications

The MA245 Genesis antenna is an omnidirectional, fully IP65 waterproof external 4in1 M2M antenna for use in telematics, transportation, and remote monitoring applications.

This unique antenna delivers powerful MIMO antenna technology for cellular/LTE, GPS-GLONASS plus WiFi dual-band 2.4/5 GHz for next-generation multiple wireless technology systems, such as telematics. Potential uses are new fleet management and applications that demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.

The GPS/GLONASS/GALILEO antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments. Cable length and connector types are customizable.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type FAKRA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) -3.1
Length (mm) 205.8
Width (mm) 68
Height (mm) 12.7
Weight (g) 300
