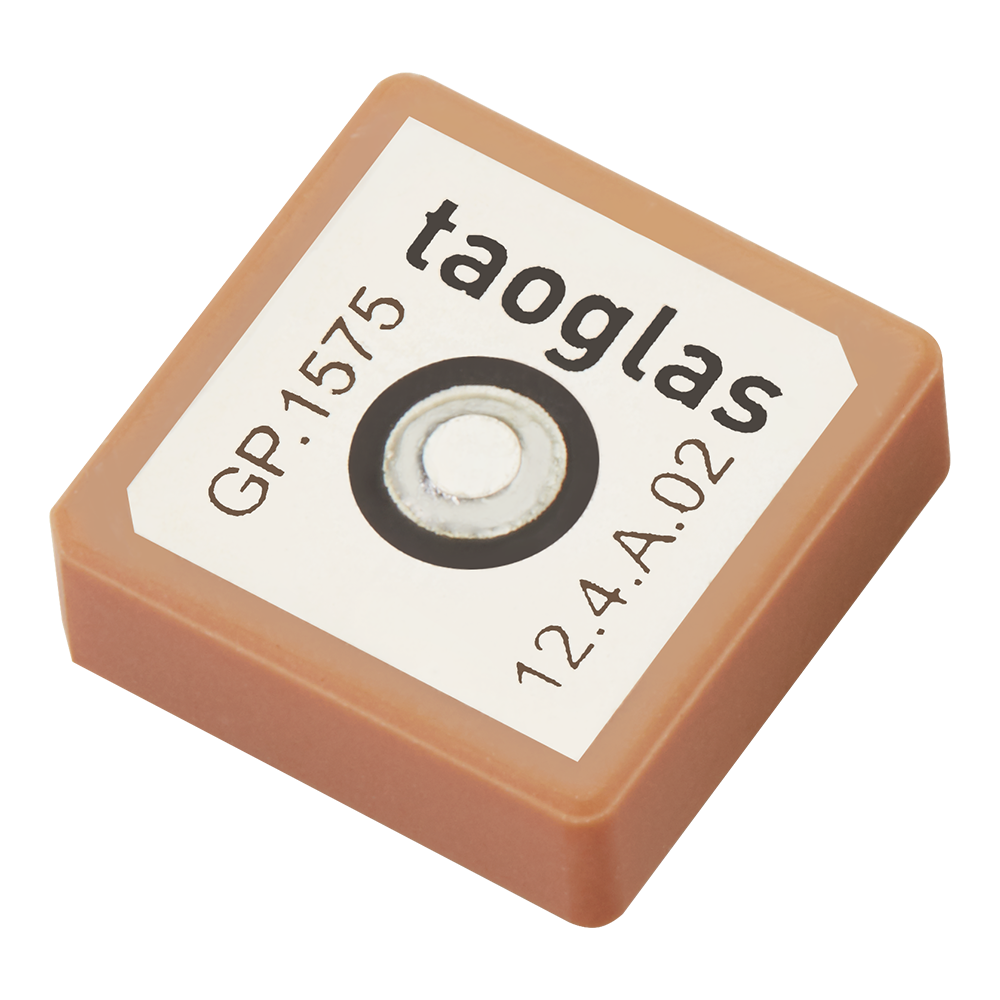

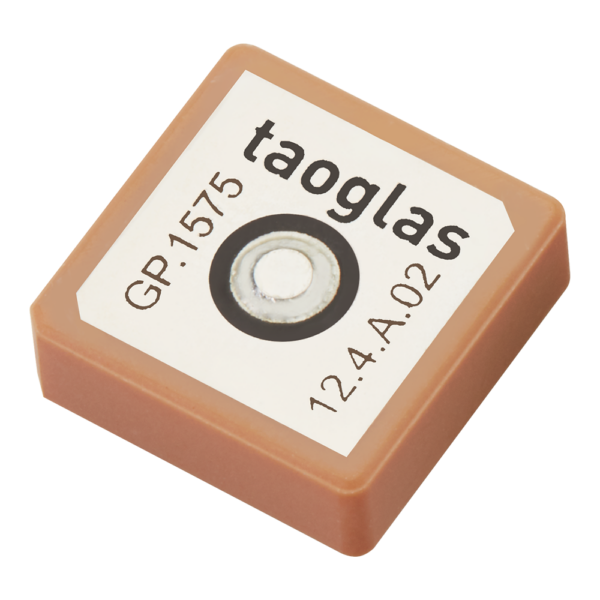

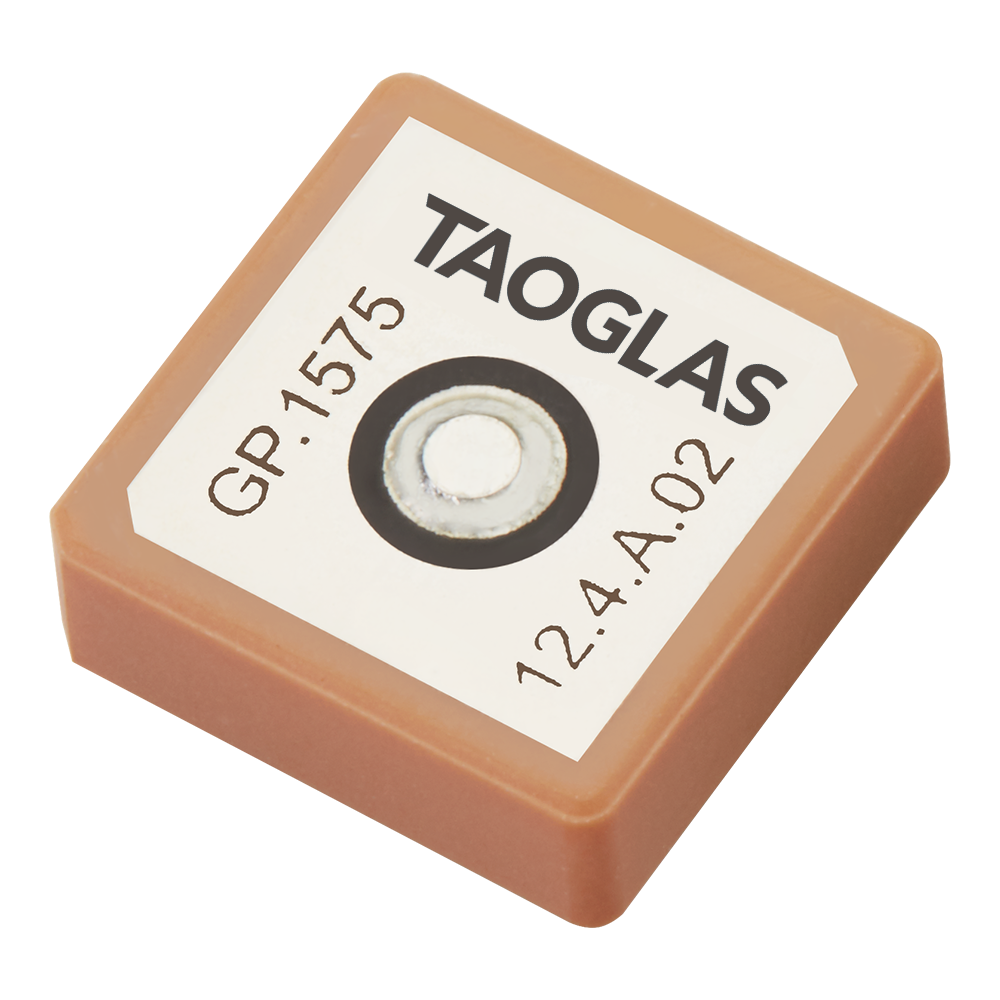

This miniaturized ceramic GPS/GALILEO patch antenna is based on smart XtremeGain™ technology. It is mounted via pin and double-sided adhesive and has been selected as optimal solution for the customer device environment.
GP.1575.12.4.A.02 GPS/Galileo 12*12*4mm 1575.42MHz Patch Antenna
GP.1575.12.4.A.02Passive GPS/GALILEO Patch Antenna
Centre Frequency: 1575MHz

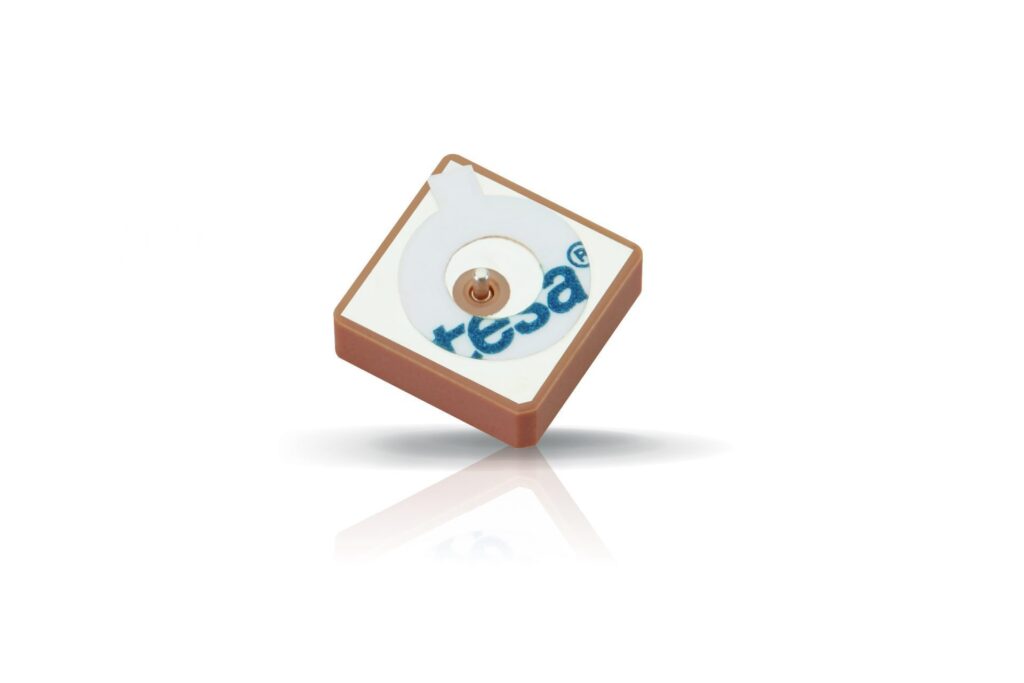

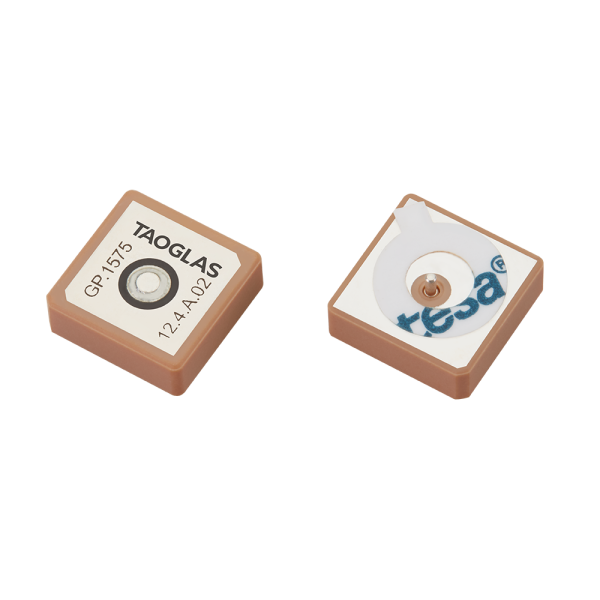

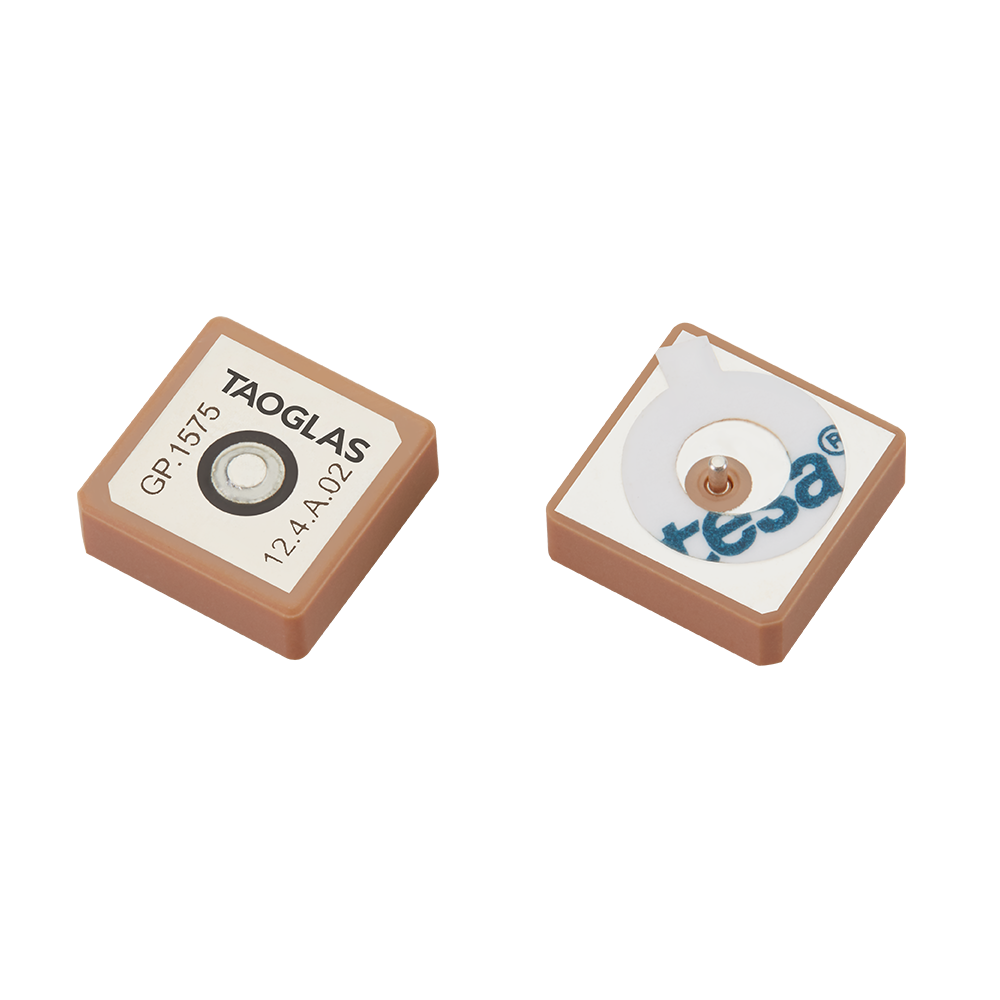

Mounted with pin and adhesive tape
Dimensions: 12mm*12mm*4mm
RoHS & REACH Compliant
GP.1575.12.4.A.02
GP.1575.12.4.A.02 GPS/Galileo 12*12*4mm 1575.42MHz Patch Antenna
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | Embedded Antennas, GNSS |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1 |
| Mechanical Style | Patch |
| Impedance | 50 |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Mounting Style | Pin/Adhesive |
| Termination Style | Pin |
| Antenna Connector Type | N/A |
| Length (mm) | 12 |
| Width (mm) | 12 |
| Height (mm) | 4 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | None |
| VSWR | 1.5 |
| Weight (g) | 6 |
| RoHS | Yes |
| Gain (Max) | 3.21 |
