GPS L1 & L5 Band Operation
IRNSS Band Compatible
Low Axial Ratio
Dimensions: 25*25*8.12mm
RoHS & REACH Compliant

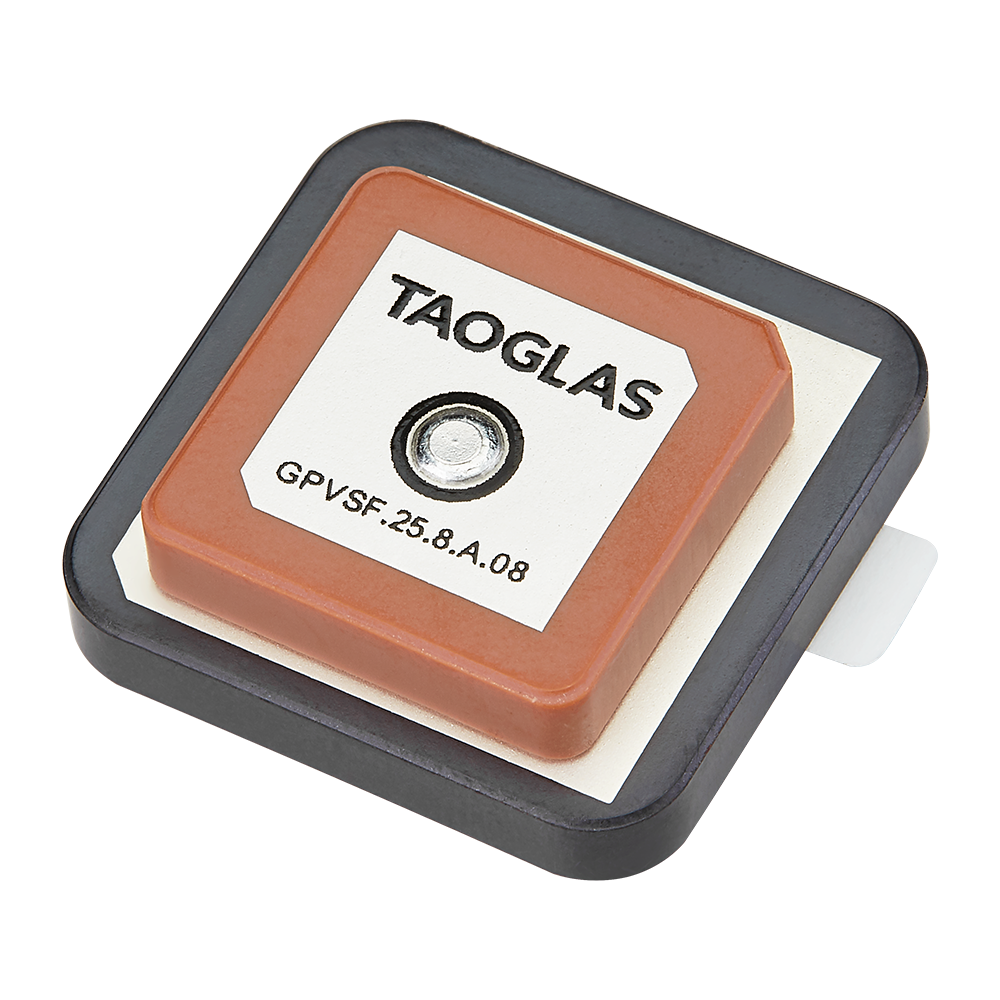

GPVSF.25.8.A.08 – 25*25*8mm GNSS + IRNSS Single Feed Stacked Patch Antenna
GPVSF.25.8.A.08
GPVSF.25.8.A.08

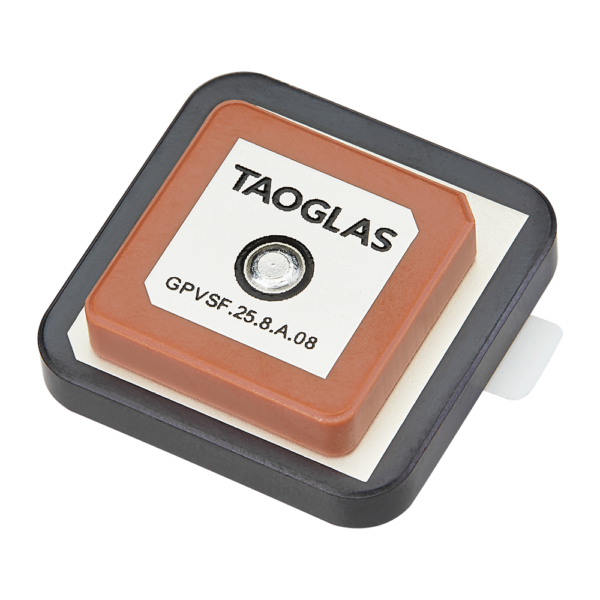

GPVSF.25.8.A.08 – 25*25*8mm GNSS + IRNSS Single Feed Stacked Patch Antenna
Overview
GPS/IRNSS Single Feed Stacked Patch Antenna L1:1575MHz L5:1176.45MHz
The Taoglas GPVSF.25.8.A.08 is a multi-band GNSS and IRNSS, high-performance directional antenna for improved GPS accuracy and fast positioning. Integration of IRNSS allows for better navigation accuracy and enables compliance with AIS-140 for tracking devices in India.
Typical applications include:
- UAVs and Robotics
- Transportation
- Marine
- RTK
- Autonomous Vehicles
- Agriculture
- Navigation
This antenna has been tuned and tested on a 70 x 70 mm ground plane, working at GNSS L1 bands and L5 IRNSS band. Patch antennas can be tuned to customer-specific device environments, subject to NRE and MOQ.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, GNSS |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1/L5 |
| Mechanical Style | Patch |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Pin/Adhesive |
| Termination Style | Pin |
| Antenna Connector Type | N/A |
| Length (mm) | 25 |
| Width (mm) | 25 |
| Height (mm) | 8 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 1160MHz - 1610MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | None |
| VSWR | <2:1 |
| Weight (g) | 25 |
| RoHS | Yes |
| Gain (Max) | 3.85 |
