Guardian HP 9-in-1 1*Multi-Band GNSS, 4*5G/4G MIMO and 4*Wi-Fi® MIMO Adhesive Mount Antenna

Guardian HP 9-in-1 1*Multi-Band GNSS, 4*5G/4G MIMO and 4*Wi-Fi® MIMO Adhesive Mount Antenna

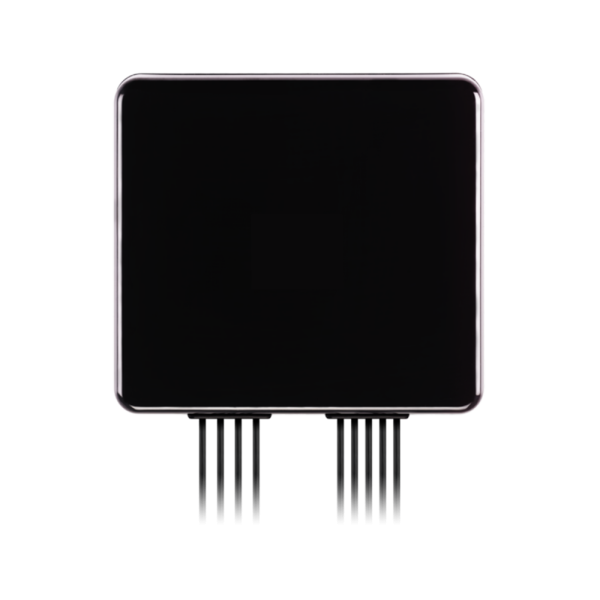

The Taoglas Guardian HP is a low-profile, wall-mount 9-in-1 combination antenna designed to deliver reliablemulti-band connectivity in a compact, rugged enclosure. It integrates 4 × 4G/5G MIMO (4G-5G 1 & 2: 600–6000 MHz, 4G-5G 3 & 4: 1400–6000 MHz), 4 × tri-band Wi‑Fi MIMO (2.4, 5.8, and 7.125 GHz), and a GNSSantenna (L1/L5) within a single IP67-rated waterproof housing, ensuring dependable performance indemanding indoor and outdoor environments.

Its slim form factor and wall-mount design make it well suited to installations where space is limited and adiscreet, non-intrusive solution is required. Supplied with low-loss cables and standard SMA and RP-SMAconnectors, the Guardian HP enables straightforward integration across a wide range of devices and systems,while maintaining compliance with RoHS and REACH standards.

Typical applications:

• Industrial and enterprise routers and gateways
• Smart infrastructure and IoT deployments
• Transportation hubs and connected vehicles
• HD video and high-bandwidth data applications
• Public safety, first responder, and emergency services

The Guardian HP is optimized for key 5G frequency bands, with antenna elements tuned to support bothwideband and high-band operation. Users should refer to the performance table to select the appropriateconnections for their application.

Cable length, connector types, and antenna configurations are fully customizable, with options for variantsbelow 9‑in‑1 and additional Wi‑Fi or GNSS support available from Taoglas.
