Guardian X 9-in-1 Combination Adhesive Mount Antenna


Low-profile IP67 Rated Housing
4*5G/4G MIMO 600-6000MHz
4*Wi-Fi MIMO 2.4/5.8GHz
Cables: GNSS 3m of RG-174, 5G/4G and Wi-Fi 3m of TGC-200
Connectors: GNSS FAKRA Code C, 5G/4G – FAKRA Code D, Wi-Fi – FAKRA Code I
Dimensions: 360x160x20.5mm
CE Certified
RoHS & Reach Compliant

Image MA9929.A.002

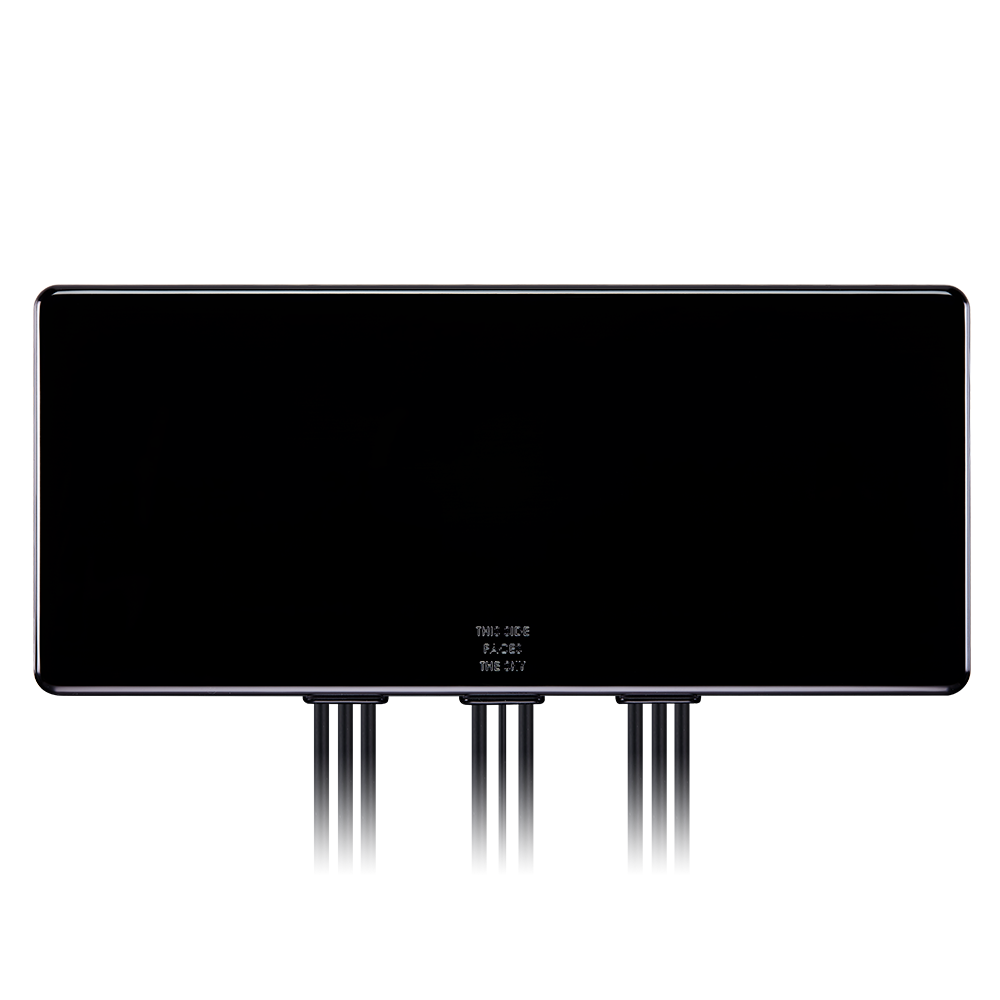

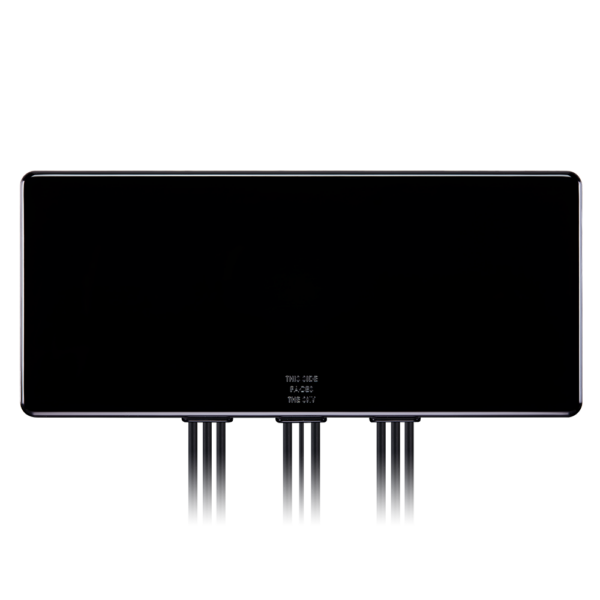

Guardian X 9-in-1 Combination Adhesive Mount Antenna


Guardian X 9-in-1 Combination Adhesive Mount Antenna

The Taoglas MA9929 Guardian X has been designed to combine a high number of antenna combinations in one enclosure. The MA9929 is a 9-in-1 combination antenna that combines all 9 antenna elements in one low-profile heavy-duty, IP67 rated waterproof, adhesive mount external enclosure. The MA9929 comes with 1* Active GPS/GLONASS/Galileo, 4* 5G/4G Cellular MIMO (600-6000MHz), 4* Wi-Fi 6 MIMO (2.4/5.1-7.125GHz) as standard. The MA9929 has been designed as a low profile solution for IoT and Automotive applications where space is at a premium.

This is an ideal external combination antenna solution that is used where drilling a hole through the roof of a vehicle or a metal panel for an external antenna is not feasible.
The MA9929 also operates at Band 71, the newly established 5G band at 600MHz.

Typical applications include:
– Passenger Bus / Rail / Air Applications.
– Automotive and Heavy Equipment Vehicle Tracking and Telematics
– HD Video over 5G/4G
– First Responder and Emergency Services
– M2M Applications/IoT

5G/4G applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to ensure high isolation between the MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over longer cable lengths. In contrast, smaller MIMO antennas with poorer quality thin cables will have reduced efficiency and isolation, which would lead to a large drop in system throughput, increased incidences of signal drops, and may indeed not make a system connection at all.

Cable type and length, and connector types are fully customizable and the GuardianX can also be customized for any variation of antennas below 9-in-1. Contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type FAKRA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP, Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 5.23
Length (mm) 360
Width (mm) 20
Height (mm) 160
Weight (g) 1300
