Hercules A.41 GPS/GLONASS/Galileo/BeiDou Permanent Mount, 3m RG-174 Ø48*29mm


Hercules GPS/GLONASS/GALILEO/BeiDou Permanent Mount Antenna
GPS 1575MHz/GLONASS 1602MHz/BeiDou 1561MHz
Total Gain 28dB typ at 3.0V
Cable: 3m RG174
Connector: SMA(M)
No Ground Plane Required
Dimensions: 48*48*29mm
IP65 Rated Enclosure
RoHS and REACH Compliant

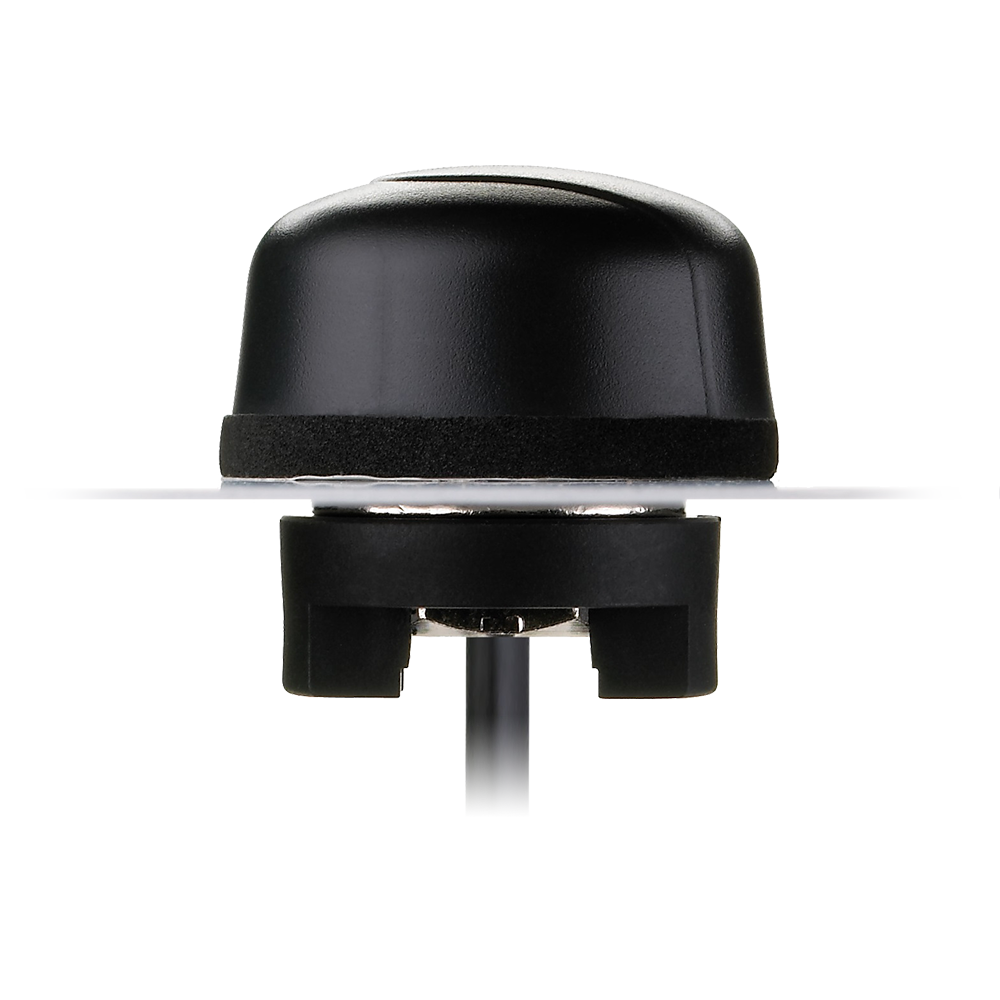

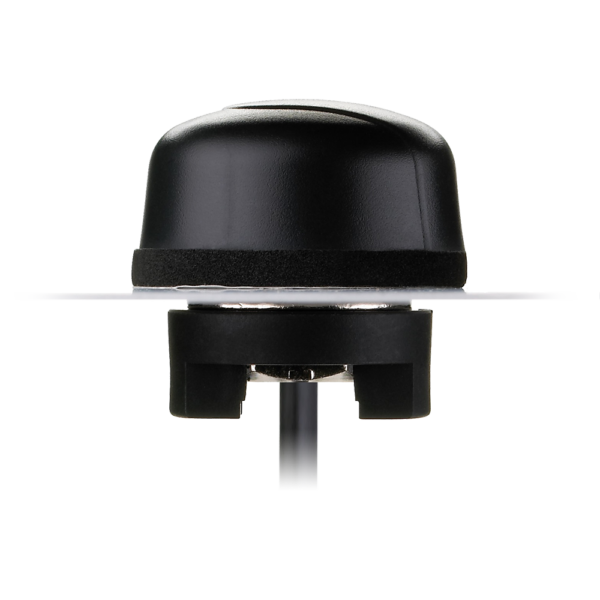

Image A.41.A.301111


Hercules A.41 GPS/GLONASS/Galileo/BeiDou Permanent Mount, 3m RG-174 Ø48*29mm


The A.41 Hercules, a high gain GPS-GLONASS-GALILEO-BeiDou antenna with UV resistant and robust housing, is the latest generation of Hercules GNSS antennas, capable of receiving signals from the next generation receivers for all the main operating global satellite navigation systems in operation today, helping delivering much improved location accuracy and quicker re-acquisition time over older systems and antennas. Focusing on the heavy-duty automotive, industrial and agricultural markets, A.41 provides a dust-tight, waterproof antenna by a one-piece CNC machined nickel-steel base plate and threads, enabling A.41 to be the ideal antenna in the urban canyons of cities in factory and field environment.

It is often used such as on city buses, agricultural and industrial vehicles and heavy equipment. This high gain GPS-GLONASS-GALILEO-BeiDou antenna, utlilizing a 2 stage LNA, uses a unique front end SAW filter topology which reduces the possibility of LNA compression and burn-out from other nearby radio transmitters. This front end SAW filter will smooth your device certification by reducing the possibility of radiated spurious emission test failures. Its durable UV resistant PC housing is IP65 rated, resistant to vandalism and direct attack. At only 29mm high it complies with the latest EU directives for height restrictions, whilst also enabling covert operation with a diameter of 49mm. Cable lengths, types, and connectors are fully customizable. Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1559 - 1610MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
IP Rating IP65
RoHS Yes
Gain (Max) 28
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 47.8
Width (mm) 47.8
Height (mm) 28.5
Weight (g) 157
