New Released Apr 23, 2025

Thunder Integrated 5G/LTE Omnidirectional Antenna for Ericsson R980

THOR98

Integrated 5G/LTE Omni Antenna for Ericsson (Cradlepoint) R980
Multi-band 5G, Wi-Fi®, and GNSS. covering 600-7125 MHz
Wall / Pole mount antenna
IP67 rated waterproof enclosure
Connector: RJ45
Dimensions: 272 x 276 x 100 mm
RoHS and Reach Compliant

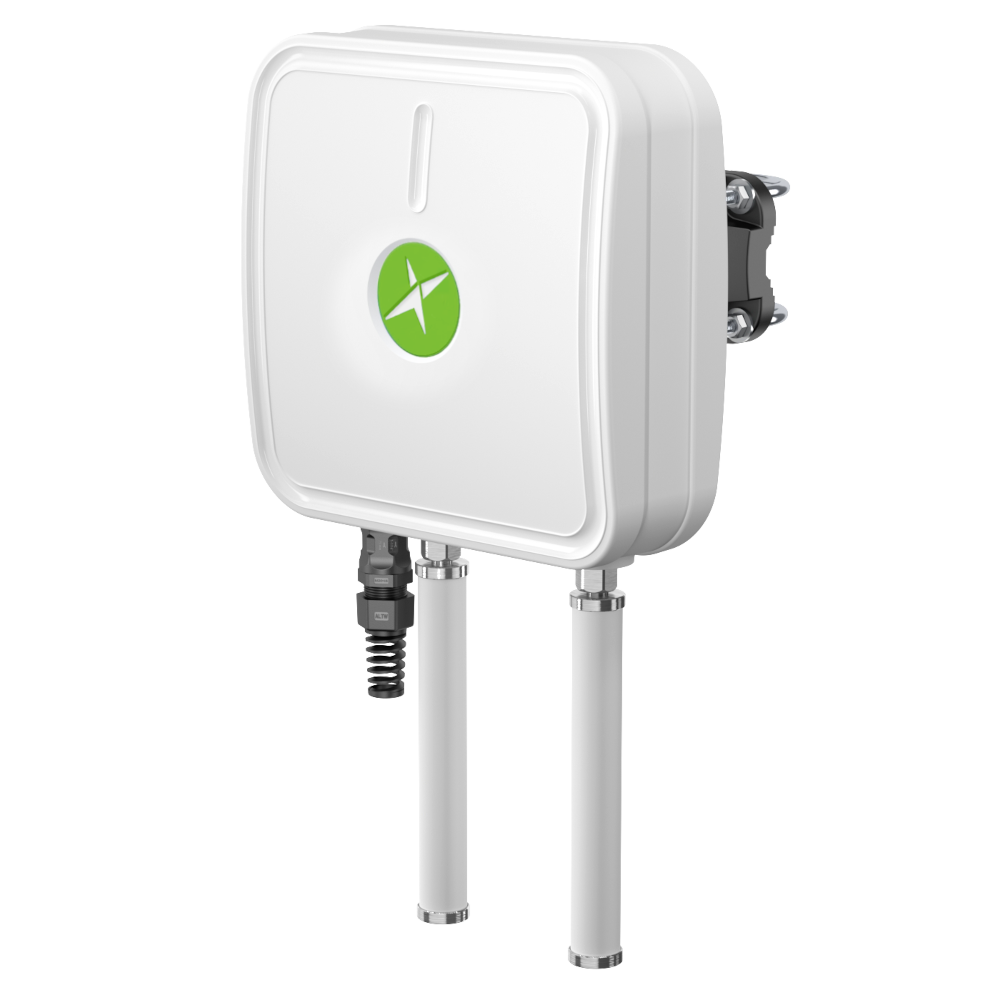

Image THOR98

THOR98

Thunder Integrated 5G/LTE Omnidirectional Antenna for Ericsson R980

Overview

Integrated Multi-Band 5G/LTE Omnidirectional Antenna for Ericsson (Cradlepoint) R980

The Taoglas THOR98 is an all-in-one antenna for Ericsson (Cradlepoint) R980 routers is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, and yachts. It has embedded omnidirectional 5G, Wi-Fi®, and GNSS antennas. If you use the Ericsson (Cradlepoint) R980 router with the THOR98 Thunder omnidirectional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure.

Typical applications include:

– Critical Communications and Public Safety
– Transportation & Fleet Management
– Industrial and Rugged Environments
– Enterprise & IoT Deployments

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THOR98 is a fantastic solution for 5G, Wi-Fi®, and GNSS applications.

Contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
IP Rating IP67
Impedance 50
Minimum Operating Temperature -40
Maximum Operating Temperature 75
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type RJ45
Length (mm) 272
Width (mm) 276
Height (mm) 96
Cable Type n/a
Connector Body Style Straight
Polarity RHCP, Vertical
Frequency Range 600MHz - 7125MHz
Connector Polarity Normal
VSWR <2
Weight (g) 1800
RoHS Yes
Gain (Max) 7.5
