Stream- GPS/GLONASS-Cellular/GSM, Wi-Fi®
GPS/GLONASS – 1575/1602MHz – 3M RG-174 SMA(M) 1.92dBi+ Gain
Cellular 698-2170MHz – 3M CFD-200 SMA(M)
2dBi+ Gain/37%+ Efficiency
Wi-Fi®/Public Safety/ZigBee® 2.4/4.9~6GHz – 3M CFD-200 RP-SMA(M)
1.5dBi+ Gain/30%+ Efficiency
NO GROUND PLANE REQUIRED
Dimensions: 200.5* 66.5*9mm
Waterproof IP67 Rated

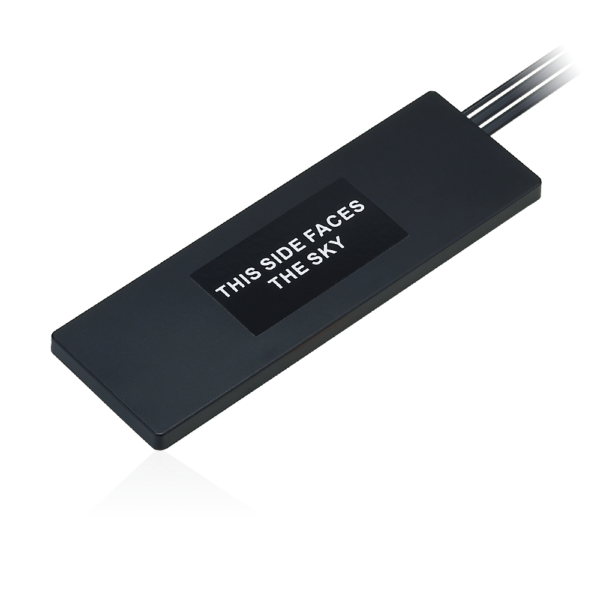

Stream MA230 3-in-1 GPS/GLONASS/Galileo 4G/3G/2G Wi-Fi® Adhesive Mount Antenna
MA230.LBC.002
MA230.LBC.002
Stream MA230 3-in-1 GPS/GLONASS/Galileo 4G/3G/2G Wi-Fi® Adhesive Mount Antenna
Overview
The Stream 3in1 MA230 GPS/GLONASS/GALILEO, LTE Cellular 4G/3G/2G and Wi-Fi® 2.4/5GHz antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in telematics, transportation and remote monitoring applications. The Stream 3in1 is unique in the market as it combines the highest possible efficiency and peak gain for GPS/GLONASS/GALILEO, Wi-Fi® dual-band 2.4/5GHz and all cellular bands in 4G/3G/2G in a low profile compact format for mounting via high-quality first tier automotive approved 3M adhesive foam.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 200.5 |
| Width (mm) | 66.5 |
| Height (mm) | 9 |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 700MHz - 2500MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | <1.5:1 |
| Weight (g) | 180 |
| RoHS | Yes |
| Gain (Max) | 2.52 |
