Stream MA231 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G & Wi-Fi Adhesive Mount Antenna

MA231.LBC.003

Stream 3in1- GPS/GLONASS/GALILEO-Cellular/GSM, Wi-Fi
GPS/GLONASS/GALILEO – 1575/1602MHz – 3M RG-174 SMA(M) 1.92dBi+ Gain
Cellular 698-2700MHz – 3M CFD-200 SMA(M)
2dBi+ Gain/37%+ Efficiency
Wi-Fi/Public Safety/Zigbee 2.4/4.9~6GHz – 3M CFD-200 RP-SMA(M)
1.5dBi+ Gain/30%+ Efficiency
NO GROUND PLANE REQUIRED
Dims: 200.5* 66.5*9mm
Waterproof IP67 Rated

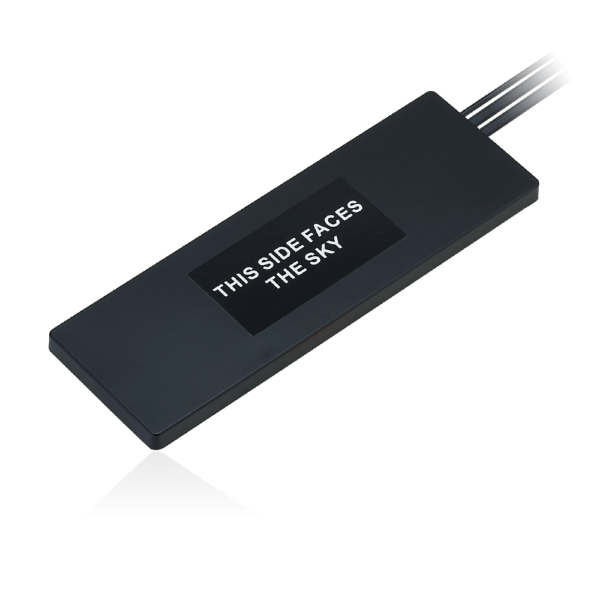

Image MA231.LBC.003

MA231.LBC.003

Stream MA231 3in1 GPS/GLONASS/GALILEO & 4G/3G/2G & Wi-Fi Adhesive Mount Antenna

Overview

The Stream 3in1 MA231 GPS-GLONASS-GALILEO, LTE Cellular 4G/3G/2G and Wi-Fi 2.4/5.8GHz antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in telematics, transportation and remote monitoring applications. The Stream 3in1 is unique in the market as it combines the highest possible efficiency and peak gain for GPS-GLONASS-GALILEO, Wi-Fi dual-band 2.4/5.8GHz and all cellular bands in 4G/3G/2G in a low profile compact format for mounting via high quality first tier automotive approved 3M adhesive foam. The patent pending design incorporates a custom Taoglas 35mm GPS-GLONASS-GALILEO patch antenna on an extended integral ground-plane.

A front-end SAW filter dramatically reduces radiated spurious emissions. The extended ground-plane used with an innovative internal 4G/3G/2G Cellular PIFA also enables the unique wide-band 4G/3G/2G response to deliver the highest performance possible, at 3 meters cable length. High antenna efficiencies are absolutely critical in today’s 4G and 2G systems to achieving targeted data-speeds and coverage. A powerful Wi-Fi dual-band 2.4/5.8GHz antenna gives maximum gain and coverage for common applications. The Stream works best when attached to plastic or glass, but can also be used on metal if a minimum of 40mm foam spacing is added.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 700MHz To 5850MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain 2.9
Length (mm) 200.5
Width (mm) 66.5
Height (mm) 9
Weight (g) 180
