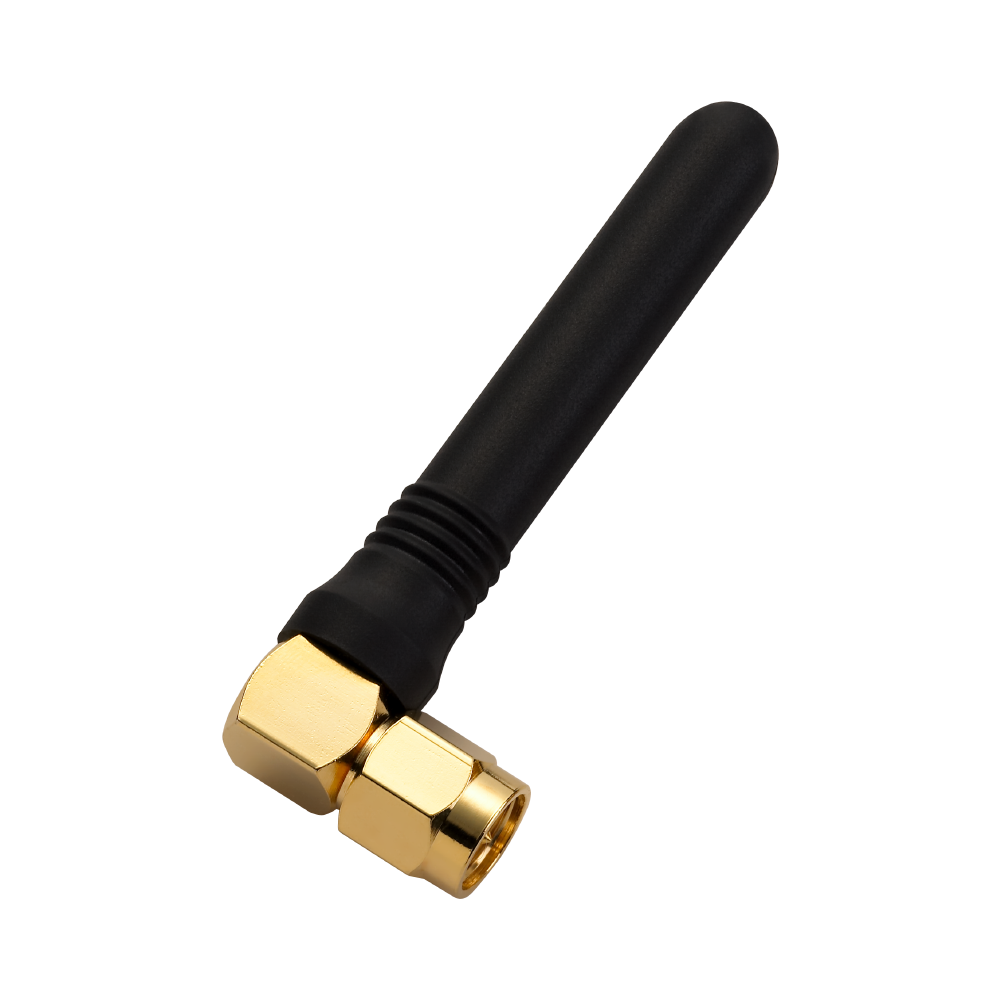

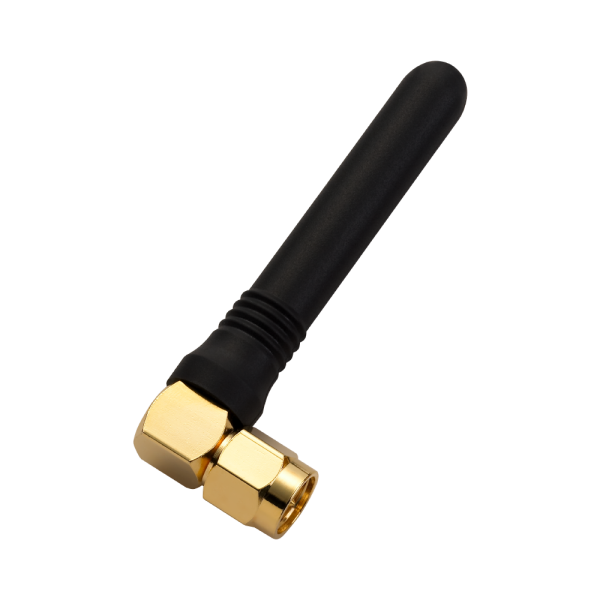

868-915MHz ISM Band Terminal Antenna
Fixed Right-Angle SMA(M) Connector
Dimensions: L:53mm Ø7mm
TI.08.C 868-915MHz Terminal Antenna SMA(M)RA
TI.08.C.0112
TI.08.C.0112
TI.08.C 868-915MHz Terminal Antenna SMA(M)RA
Overview
The Taoglas TI.08.C.0112 is a high performance antenna covering 868-915MHz, small form factor, dipole omni-direction terminal mount antenna. This antenna features an SMA(M) right angle connector as standard.
Some typical applications include:
- Smart Lighting
- Remote Monitoring
- IoT (Internet of Things)
- Smart Metering
This antenna is fabricated using TPU, which is a lightweight robust material used on several other Taoglas products. The TI.08.0112 can function impressively with a small ground plane while maintaining high efficiencies, on the band 863~915 it can reach at least 53% on a 15x9cm ground plane. The antenna connector type can be customizable, please contact your regional Taoglas sales facility for support.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, ISM/LoRA |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 7 |
| Width (mm) | 7 |
| Height (mm) | 53 |
| Connector Body Style | Right Angle |
| Polarity | Linear |
| Frequency Range | 860MHz - 928MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| VSWR | 1.5:1 |
| Weight (g) | 7 |
| RoHS | Yes |
| Gain (Max) | 0.1 |
