4.34dBi Peak Gain for GPS/GALILEO Band
SMT Direct Mount Ceramic Patch Antenna
Automotive TS16949 Approved
Evaluation Board Dimensions: 70*70mm
RoHS Compliant

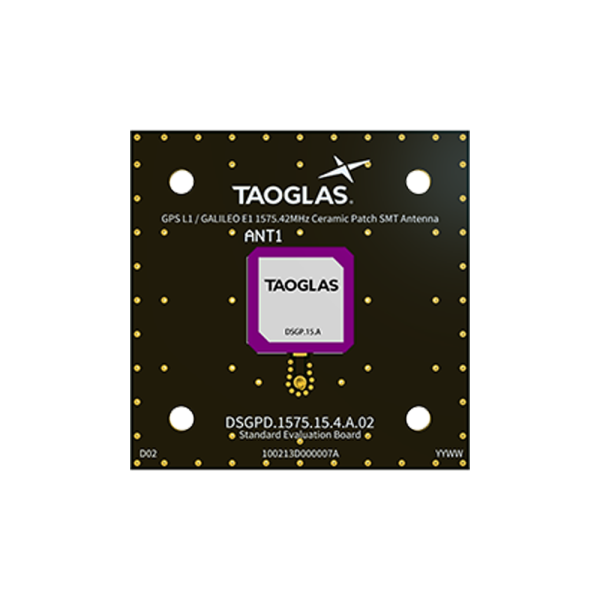

Evaluation Board for DSGP.1575.15.4.A.02 15x15x4mm GPS L1 & GALILEO E1 Ceramic Patch
DSGPD.15A
DSGPD.15A
Evaluation Board for DSGP.1575.15.4.A.02 15x15x4mm GPS L1 & GALILEO E1 Ceramic Patch
Overview
Evaluation Board for Ceramic GPS L1 / GALILEO E1 passive patch antenna
The DSGP.1575.15.4.A.02 is a ceramic GPS L1 / GALILEO E1 passive patch antenna. With a footprint of 15mm square and a height of just 4mm, this antenna is perfect for applications in compact telematics devices, vehicle tracking/fleet management systems, wearables, and navigation devices.
DSGP.1575 has been tuned on a 50*50mm ground plane, operating at 1575.42MHz with a 2.59dBi gain. The ceramic patch is mounted via SMT processes, suitable for high volume low-cost assembly.
This antenna is manufactured and tested in a TS16949 first tier automotive approved facility. Taoglas can custom-tune this antenna to specific device environments, subject to NRE and MOQ. For more details please contact your regional Taoglas sales office.
Technical Specification
| Name | Value |
|---|---|
| For Use With/Related Products | DSGP.1575.15.4.A.02 |
| Technology | Evaluation Boards, GNSS |
| Width (mm) | 50 |
| Length (mm) | 50 |
| Height (mm) | 1 |
| Materials | Ceramic |
