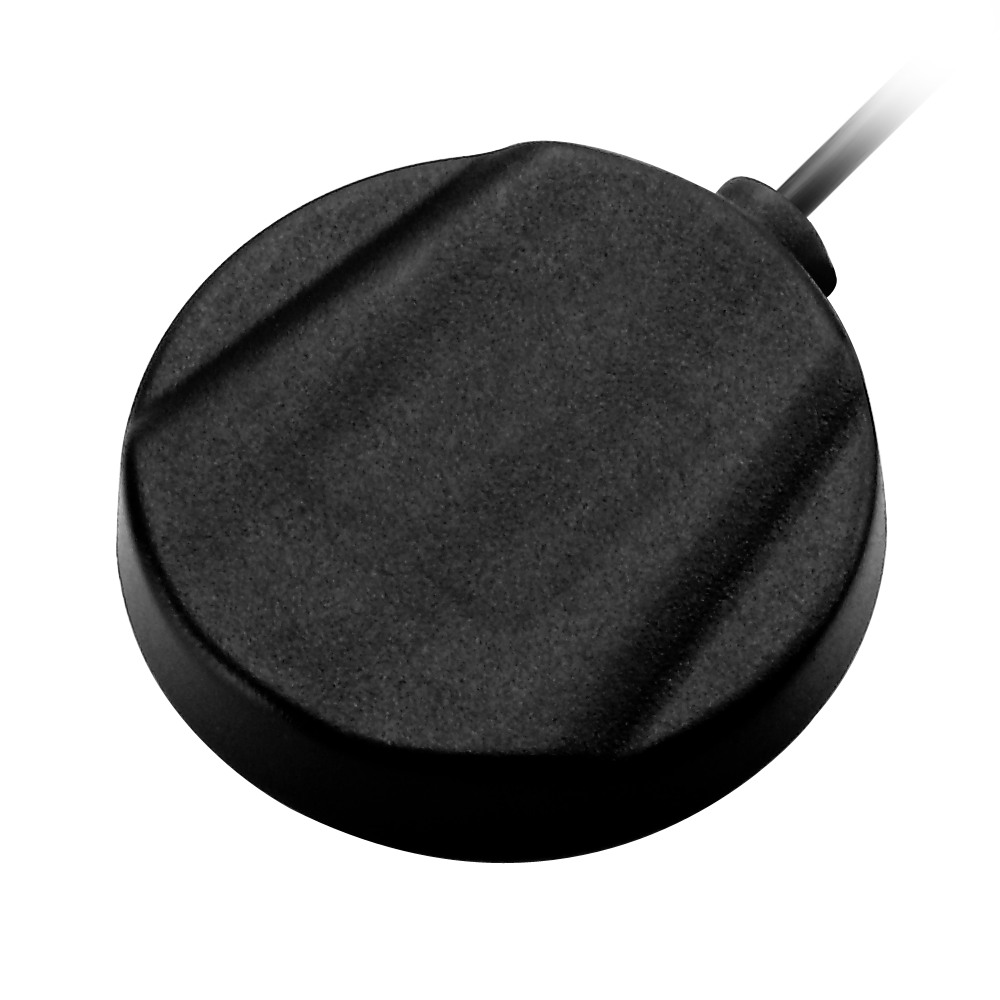

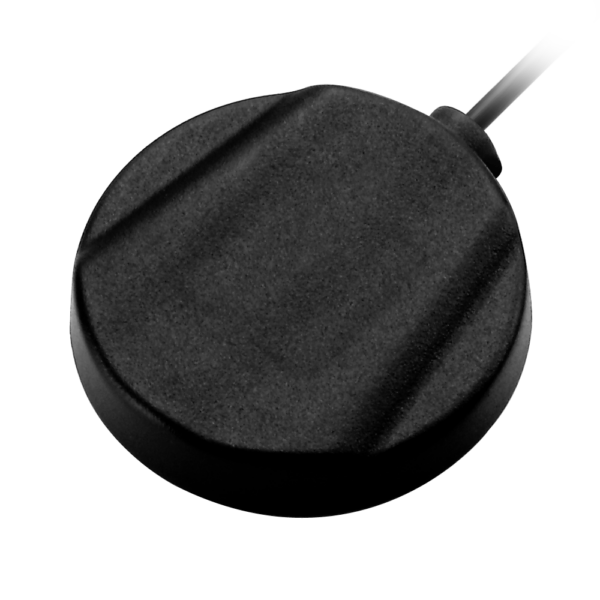

Stingray – Super Low Profile GPS/GLONASS/GALILEO Adhesive Mount
GPS/GLONASS/GALILEO 1575-1610MHz 3M RG-174 SMA(M)
2 Stage 28dB with Front End SAW Filter
High Grade 3M Double Sided Tape
Dims: 55*51.7*10.8mm
Waterproof IP65 Rated
Stingray AA.107 GPS/GLONASS/GALILEO Adhesive Mount, 3M RG-174 Ø55*12mm
AA.107.301111
AA.107.301111
Stingray AA.107 GPS/GLONASS/GALILEO Adhesive Mount, 3M RG-174 Ø55*12mm
Overview
Low Profile Adhesive Mount GPS-GLONASS-GALILEO Antenna
The Stingray low profile Adhesive Mount (only 10.8mm in height) GNSS antenna is designed for applications which require high positioning accuracy by combining signals from GPS, GLONASS and GALILEO systems. A high gain wide-band patch antenna on an integral ground delivers reliable performance, ideal for those applications that require durability, small size and covert installation, and reliable reception and transmission crossing through different mobile networks. Its high-quality low profile covert housing can be attached onto the glass or even out of sight under the dashboard. The standard version has 3 metres RG174 cable and SMA(M) connector. The cables and connectors are completely customizable according to customer request.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 55 |
| Width (mm) | 51.4 |
| Height (mm) | 11.7 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz - 1610MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2:1 |
| Weight (g) | 64 |
| RoHS | Yes |
| Gain (Max) | 28 |
