AP.17E GPS/GALILEO 1 Stage Active Patch 17mm*17mm*6.1mm, 64mm 1.13mm, I-PEX MHF® I (U.FL)


1 Stage 15dB
Active GPS/GALILEO Patch Antenna Module
Front End SAW Filter
64mm 1.13mm I-PEX MHF® I (U.FL comp)
Input Voltage: 1.8V/3.0V/5.5V
Dimensions: 17mm*17mm*6.1mm
RoHS & REACH Compliant

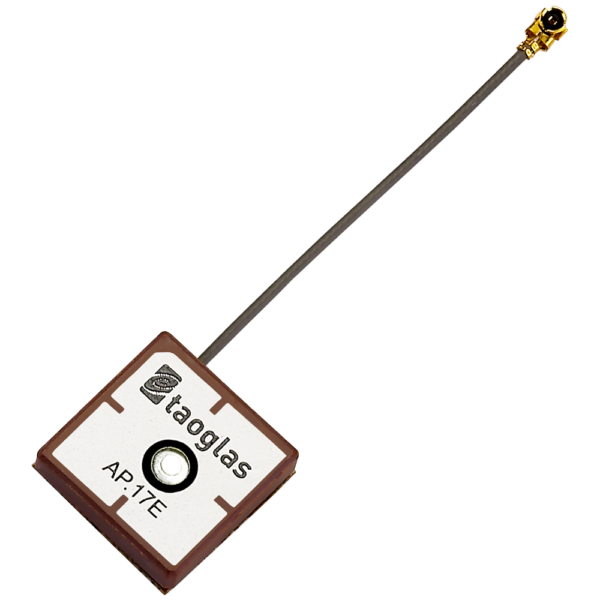

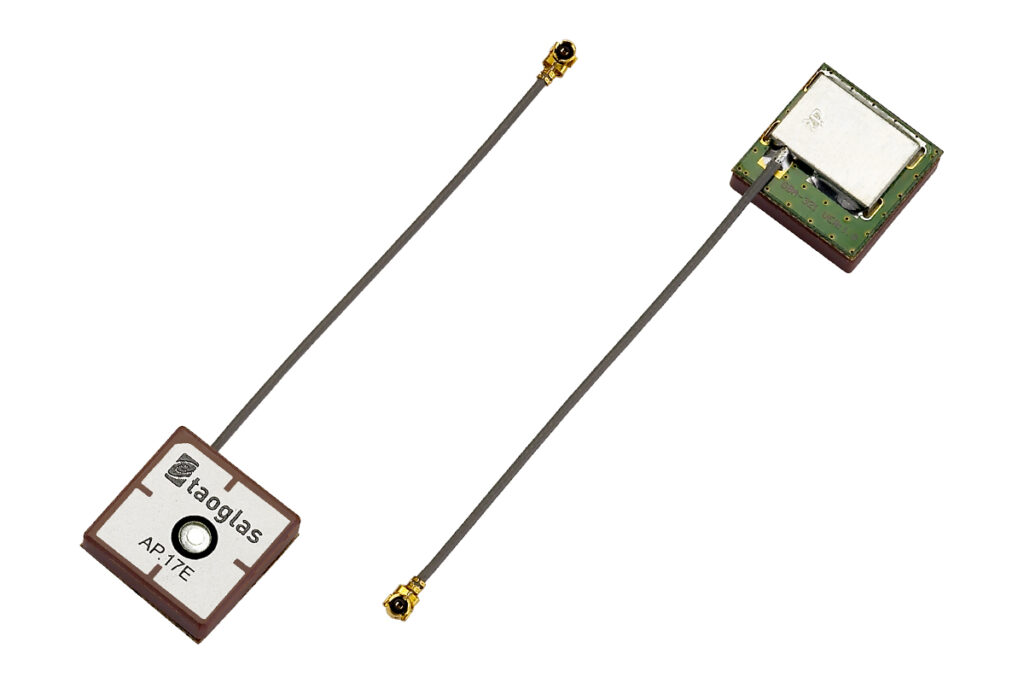

Image AP.17E.07.0064A


AP.17E GPS/GALILEO 1 Stage Active Patch 17mm*17mm*6.1mm, 64mm 1.13mm, I-PEX MHF® I (U.FL)

Active Patch Antenna Module with Front End SAW Filter

The AP.17E is a one stage 17mm active patch antenna Module with Front End SAW Filter that has been designed specifically for embedded (inside device) integration with GPS/GALILEO receiver modules.The AP.17E combines a 17*17*4mm advanced low profile ceramic patch antenna with a one stage LNA and a front-end SAW filter with ultra thin coaxial cable. It comes with its own integrated ground-plane. The front end SAW filter reduces the risks where there is a cellular transmitter nearby of interference from out of band frequencies which can cause LNA burn-out, saturation, or radiated spurious emissions.

The antenna can work on a wide input voltage from 1.8V to 5.5V with best in class power consumption figures. If further tuning and optimization specific to a customer device is required, Taoglas offers a custom-tuned and optimized part service. Contact your regional customer services office for more information. Cables and connectors can be customized according to request.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 16
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Cable Mount
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) 64
Packaging Carton
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 17
Width (mm) 17
Height (mm) 6.1
Weight (g) 24
