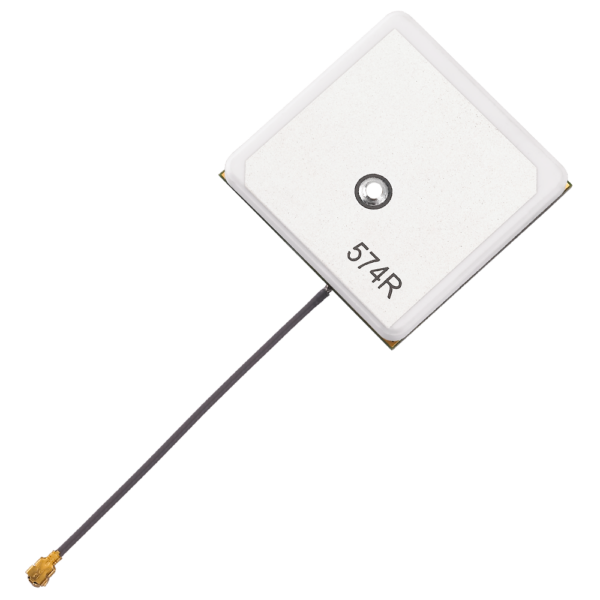

AP.35A GPS/GALILEO 1 Stage Active 35*35*5.5mm Patch , 54mmØ1.13, I-PEX MHF® I (U.FL)


1 Stage 15dB
Active GPS/GALILEO Patch Antenna Module
Back End SAW Filter
54mm, Ø1.13mm I-PEX MHF® I (U.FL comp)
Input Voltage: 1.8V/3.0V/5.5V
Dims: 35*35*5.5mm

Image AP.35A.07.0054A


AP.35A GPS/GALILEO 1 Stage Active 35*35*5.5mm Patch , 54mmØ1.13, I-PEX MHF® I (U.FL)

Antenna for GPS Receiver Module

The AP.35A has been designed for embedded (inside device) integration with GPS modules, the AP.35A combines a 35*35*3.5mm advanced low profile ceramic patch antenna with a one stage LNA and ultra-thin coaxial cable. The Ground Plane size of 35*35mm combined with the larger size GPS Patch gives this solution a performance increase in gain of 1-2dB. It also helps shields the patch antenna from the noise and increases performance at low elevations. Taoglas active antenna modules utilize XtremeGain™ technology for the highest sensitivity in the industry.

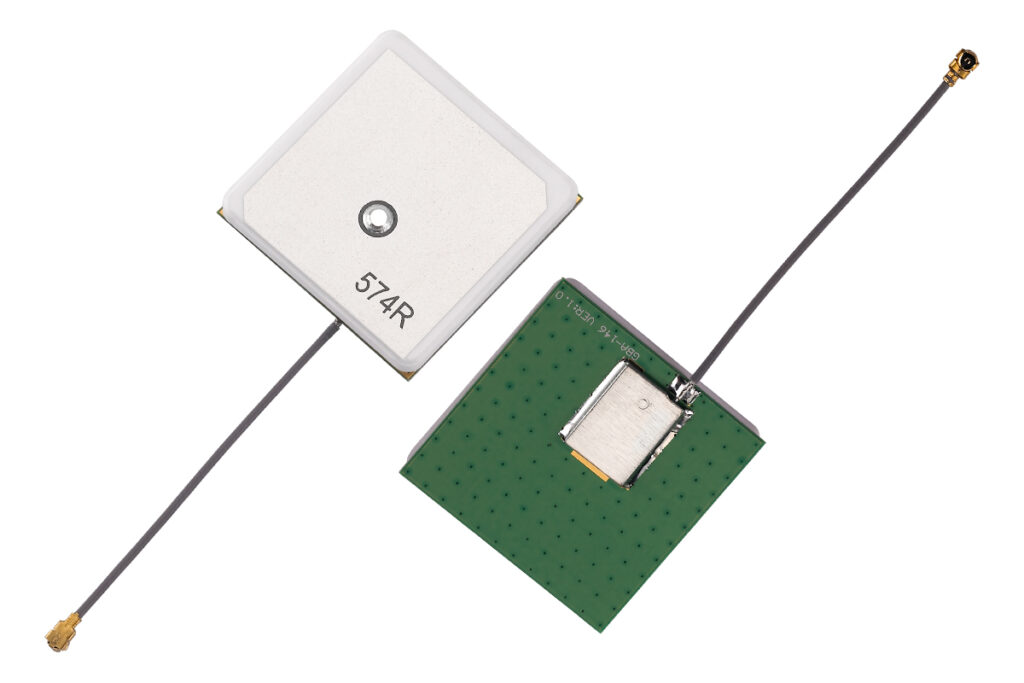

This antenna system consists of two functional blocks, the LNA portion, and the patch antenna. The AP.35A has a back-end SAW filter.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 15
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Cable Mount
Termination Style Pin
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) 54
Packaging Carton
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 35
Width (mm) 35
Height (mm) 5.5
Weight (g) 23.33
