AP.17F GPS/GALILEO 2 Stage Active Patch 23.8*22*8mm, 64mm 1.13mm, I-PEX MHF® I (U.FL)


2 Stage 25dB
Active GPS/GALILEO Patch Antenna Module
Front End SAW Filter
64mm 1.13mm I-PEX MHF® I (U.FL comp)
Input Voltage: 1.8V/3.0V/5.5V

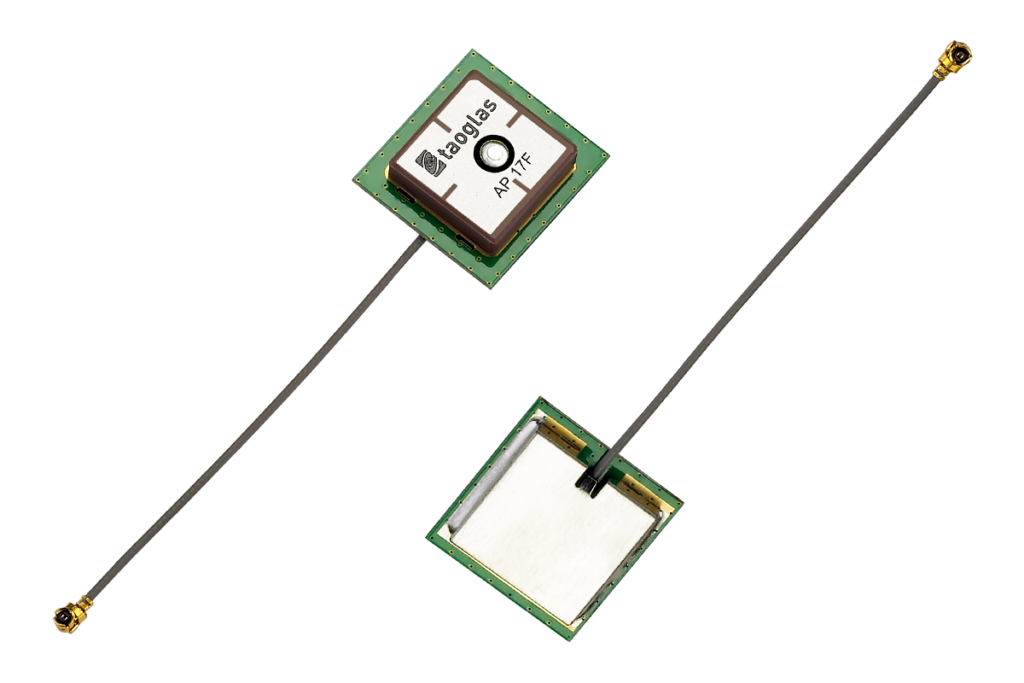

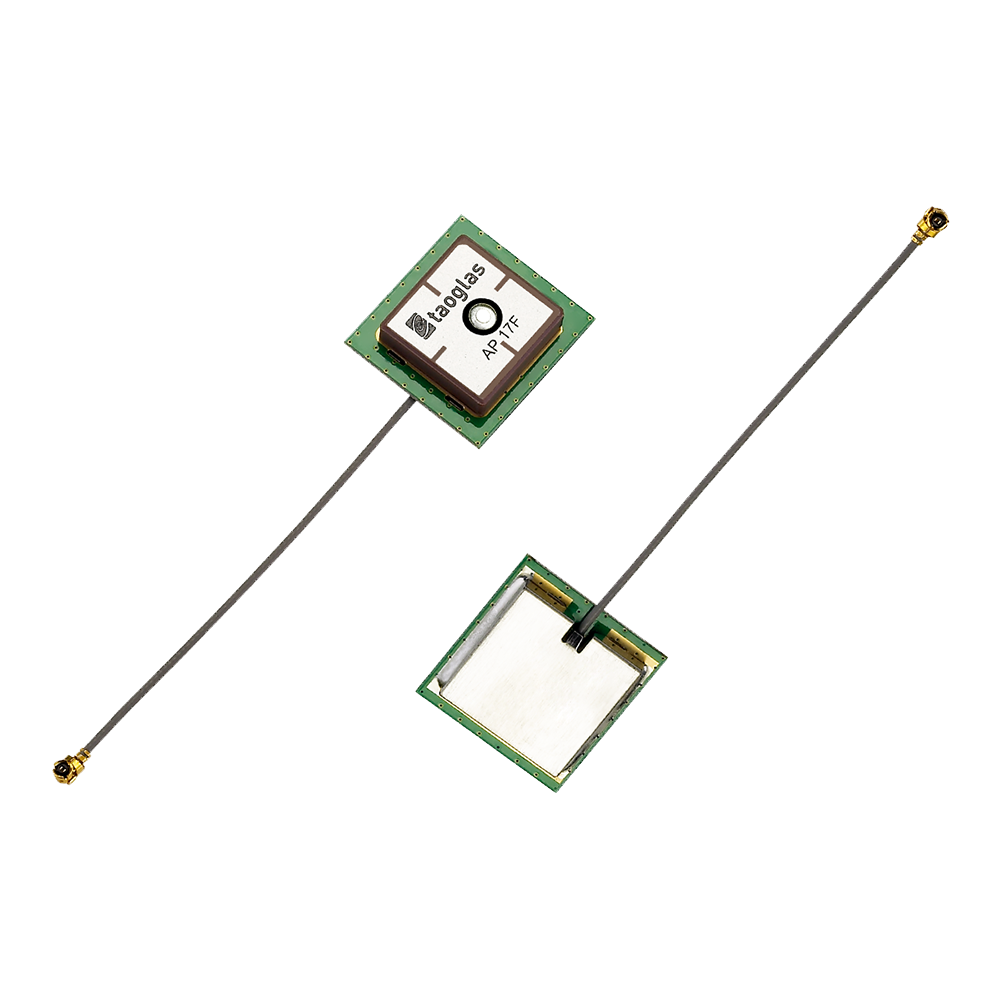

Image AP.17F.07.0064A


AP.17F GPS/GALILEO 2 Stage Active Patch 23.8*22*8mm, 64mm 1.13mm, I-PEX MHF® I (U.FL)

Active Patch Antenna Designed Specifically for Embedded Integration with GPS/GALILEO Receiver Modules

The AP.17F is a two-stage 17mm active patch antenna that has been designed specifically embedded (inside device) integration with GPS/GALILEO receiver modules. The AP.17F combines a 17*17*4mm advanced low profile ceramic patch antenna with a one stage LNA and a front-end SAW filter with ultra-thin coaxial cable. It comes with its own integrated ground-plane. The front end SAW filter reduces the risks where there is a cellular transmitter nearby of interference from out of band frequencies which can cause LNA burn-out, saturation, or radiated spurious emissions.

Optimised for RTK Applications

For RTK, or real-time kinematics, thicker patches, starting from 17mm help with tracking and acquisition sensitivity. The antenna can work on a wide input voltage from 1.8V to 5.5V with best in class power consumption figures. If further tuning and optimization specific to a customer device is required Taoglas offers a custom-tuned and optimized part service. Contact for more information.

Cables and connectors can be customized according to request. Contact your regional Customer Services Office for more information.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 31
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Cable Mount
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) 64
Packaging Carton
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 23.8
Width (mm) 22.2
Height (mm) 8
Weight (g) 25
