1 Stage 15dB
Active GPS/GALILEO Patch Antenna Module
Front End SAW Filter
54mm, Ø1.13 coaxial cable I-PEX MHF® I (U.FL comp)
Input Voltage: 1.8V/3.0V/5.5V
Dimensions: 35*35*4.5mm
RoHS & REACH Compliant

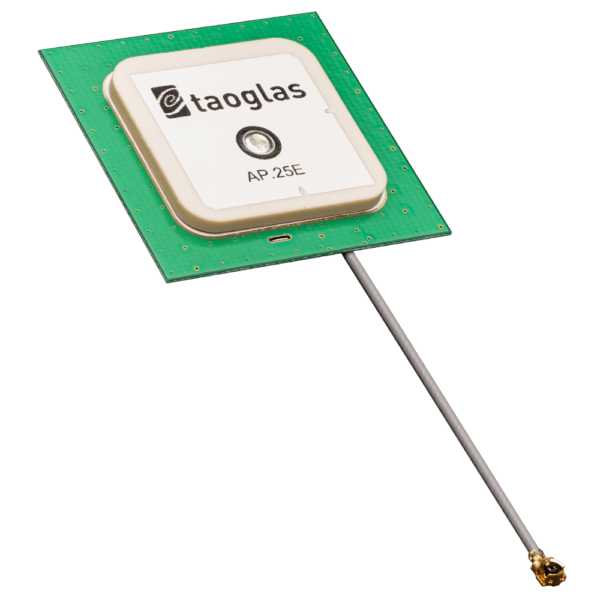

AP.25E GPS/GALILEO 1 Stage Active 25mm Patch on 35mm Ground Plane 35*35*4.5mm, 54mm Ø1.13, I-PEX MHF® I (U.FL)
AP.25E.07.0054A
AP.25E.07.0054A
AP.25E GPS/GALILEO 1 Stage Active 25mm Patch on 35mm Ground Plane 35*35*4.5mm, 54mm Ø1.13, I-PEX MHF® I (U.FL)
Overview
GPS/GALILEO Antenna for Receivers with RTK
The AP.25E is a GPS/GALILEO Antenna for receivers with RTK. It has been designed specifically for embedded (inside device) integration with GPS/GALILEO receiver modules where there is a GSM transmitter nearby and risk of interference and saturation. The AP.25E combines a 25*25*2mm advanced low profile ceramic patch antenna with a one stage LNA and a front-end SAW filter with ultra-thin coaxial cable. The Ground Plane size of 35*35mm combined with the larger size GPS/GALILEO Patch gives this solution a performance increase in gain of 12dB. It also helps shields the patch antenna from noise and increases performance at low elevations. Taoglas active antenna modules utilize XtremeGain™ technology for the highest sensitivity in the industry. The AP.25E consists of 2 functional blocks – the LNA and also the patch antenna.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| Mechanical Style | Patch |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Cable Mount |
| Termination Style | Connector |
| Antenna Connector Type | I-PEX MHF® I (U.FL) |
| Length (mm) | 35 |
| Width (mm) | 35 |
| Height (mm) | 7.2 |
| Cable Type | 1.13 Coax |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 54 |
| VSWR | <2.1 |
| Weight (g) | 25 |
| RoHS | Yes |
| Gain (Max) | 15 |
