Evaluation Board for 4.34dBi Peak Gain for GPS/GALILEO Band
SMT Direct Mount Ceramic Patch Antenna
Automotive TS16949 Approved
Evaluation Board Dimensions: 70*70mm
RoHS and REACH Compliant

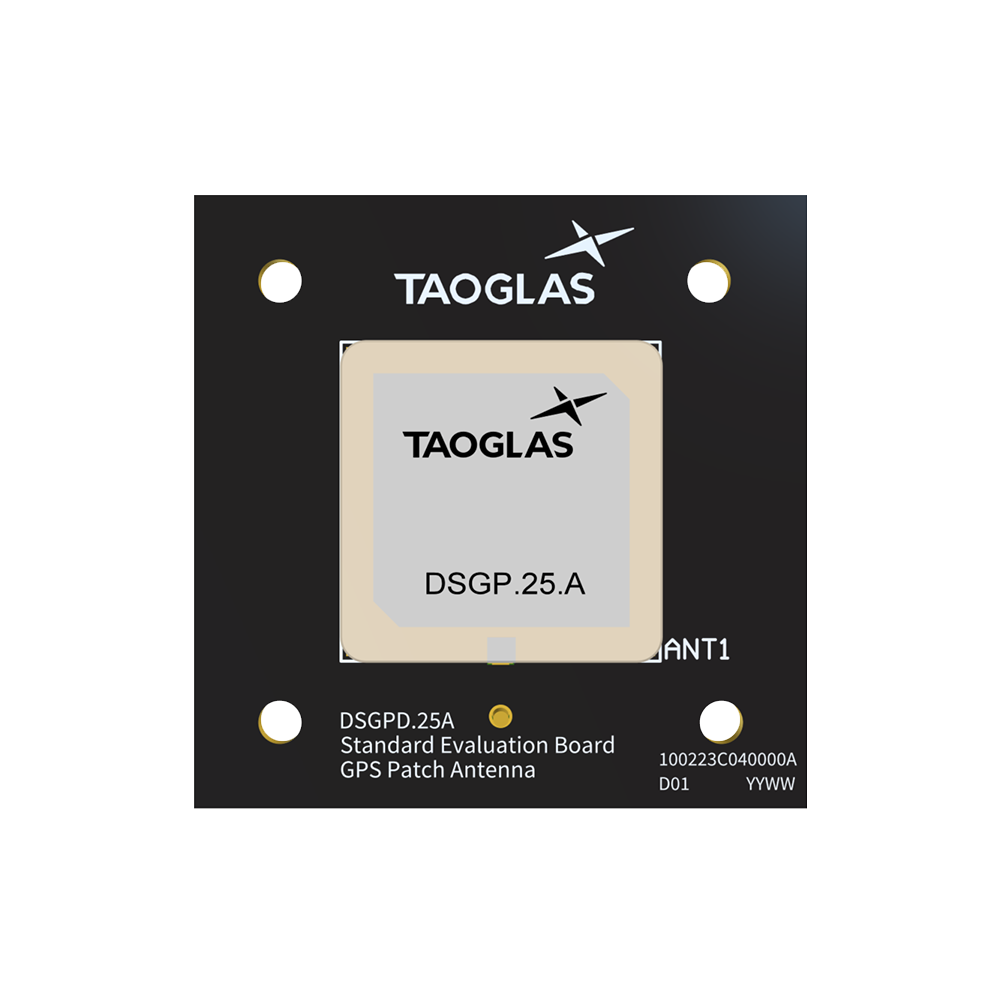

Evaluation Board for DSGP.1575.25 25*25*4mm GPS L1 & GALILEO E1 Ceramic Patch
DSGPD.25A
DSGPD.25A

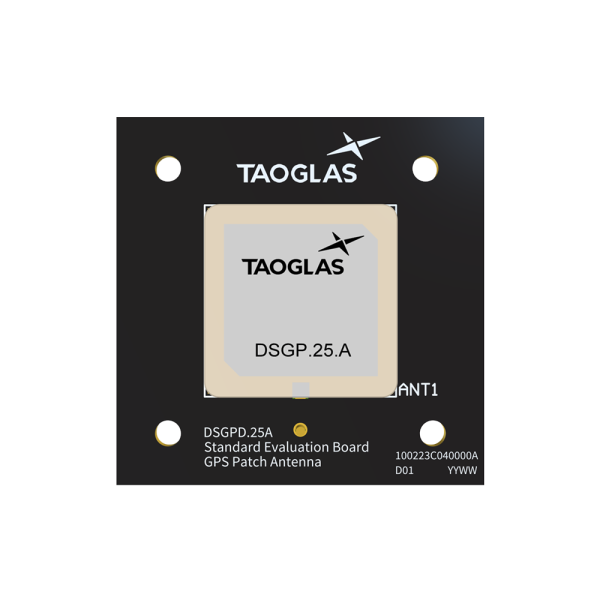

Evaluation Board for DSGP.1575.25 25*25*4mm GPS L1 & GALILEO E1 Ceramic Patch
Overview
Evaluation Board for GPS L1 / GALILEO E1 Ceramic Patch SMT Antenna for Tracking & Navigation
The DSGP.1575.25.4.A.02 is a 25mm ceramic GPS L1 / GALILEO E1 passive patch antenna. 25mm square with a height of just 4mm, this antenna is perfect for applications in telematics devices, vehicle tracking/fleet management systems, and navigation devices. Typically applicable industries include transportation, defense, marine, agriculture, and navigation. The antenna has been tuned on a 50*50mm ground plane, working at 1575.42MHz with a 4.34dBi gain.
The antenna has a stable hemispherical radiation pattern. The ceramic patch is mounted via SMT process, ideal for high volume, low-cost assembly. It is manufactured and tested in an IATF16949 first tier automotive approved facility. For further optimization to customer-specific device environments, custom-tuned patch antennas can be supplied, subject to NRE and MOQ. For more details please contact your regional Taoglas sales office.
Technical Specification
| Name | Value |
|---|---|
| For Use With/Related Products | DSGP.1575.25.4.A.02 |
| Technology | Evaluation Boards, GNSS |
| Width (mm) | 50 |
| Length (mm) | 50 |
| Height (mm) | 1 |
| Materials | Ceramic |
