GPS/GALILEO Adhesive Antenna
High gain (30dB)
High Grade 3M Double Sided Tape
3M RG-174 SMA(M)
Waterproof IP67 Rated
First Tier Automotive Approved

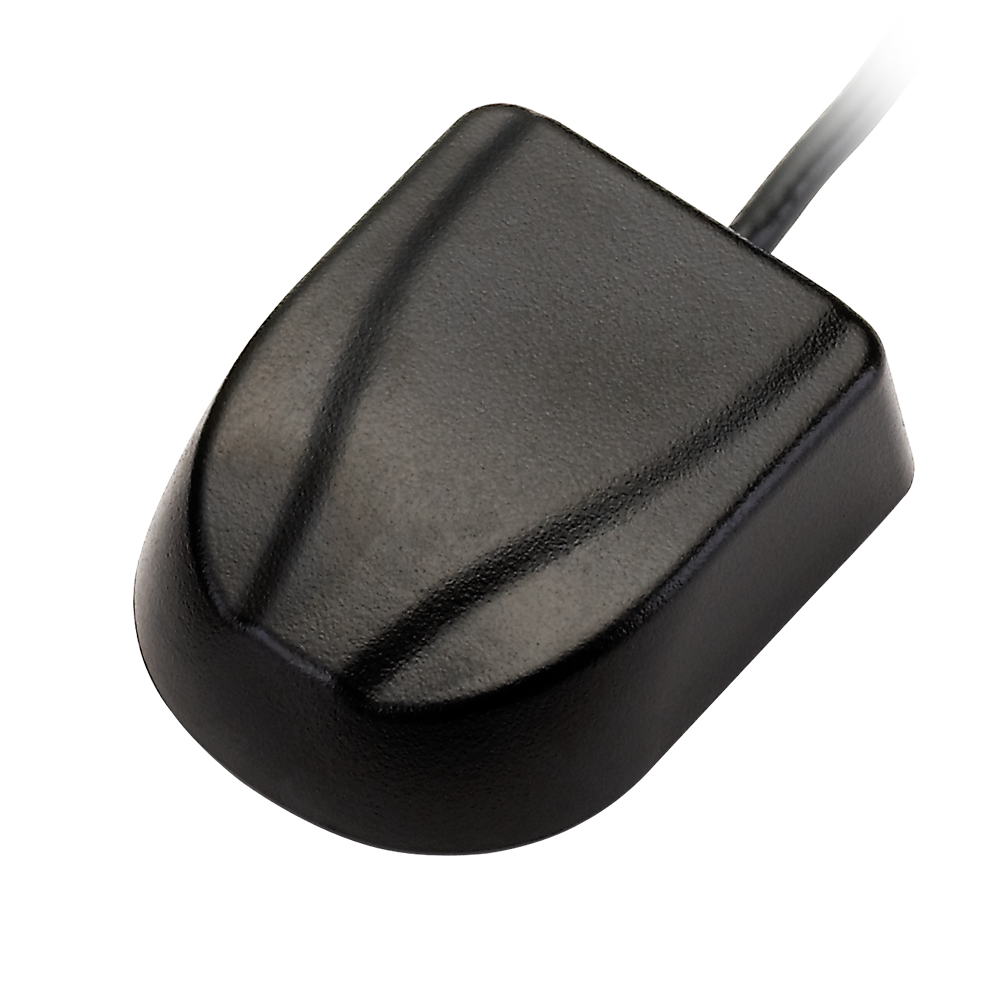

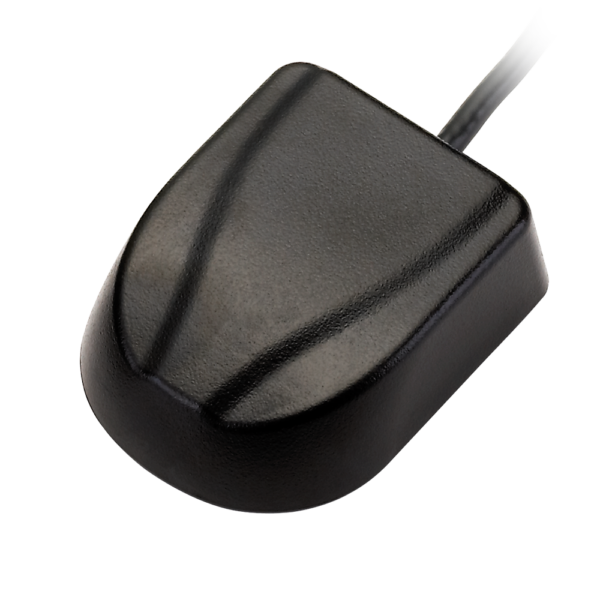

Titan AA.108 GPS/GALILEO Adhesive Mount, 3M RG-174 SMA(M)
AA.108.301111
AA.108.301111
Titan AA.108 GPS/GALILEO Adhesive Mount, 3M RG-174 SMA(M)
Overview
First Tier Automotive Approved IP67 IoT Antenna by Taoglas
The AA.108 is first tier automotive approved IP67 antenna, the part AA.108.301F21 (with GT5 connector) is listed in the global automotive IMDS databases, it has gone through full PPAP design, reliability and quality audits, including audits at the production facility.
GPS/GALILEO Automotive Antenna
Our AA.108 Titan adhesive mount external antenna is ideal for robust, covert installations where durability and small size is paramount. It is ideal for telematics and M2M applications for commercial vehicle installations for fleet management etc. Titan antennas are also widely used for consumer GPS/GALILEO devices when extra sensitivity is required, e.g. navigation devices and speed trap detectors.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Magnetic |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 43.3 |
| Width (mm) | 32.7 |
| Height (mm) | 14 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2 |
| Weight (g) | 64 |
| RoHS | Yes |
| Gain (Max) | 31 |
