High Gain GEN II GPS/GALILEO Permanent Mount Antenna
28dB 1575MHz
3m RG-174 SMA(M) Connector
No Ground Plane Required
IP65 Rated Enclosure
Dimensions: Height: 29mm, Diameter: 49mm
Hercules A.01 GPS/GALILEO Permanent Mount, 3M RG-174 48*29mm
A.01.C.301111
A.01.C.301111
Hercules A.01 GPS/GALILEO Permanent Mount, 3M RG-174 48*29mm
Overview

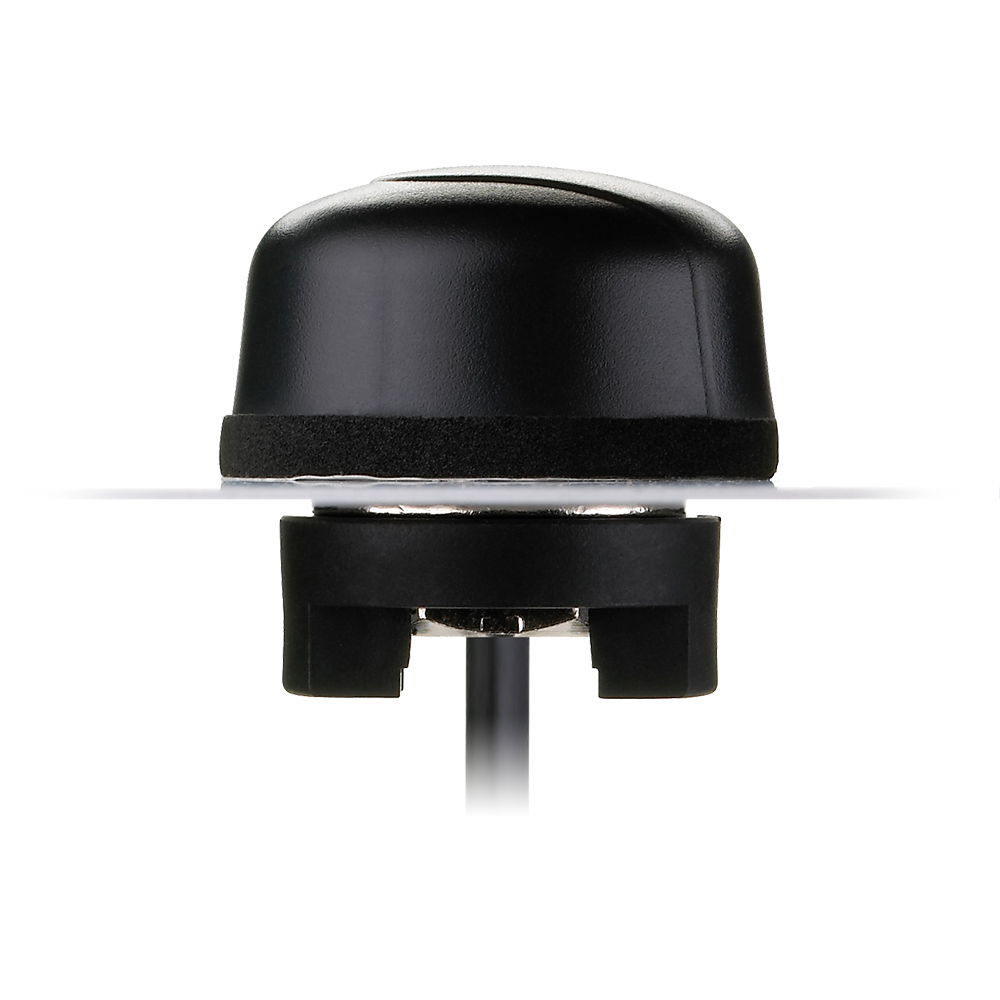

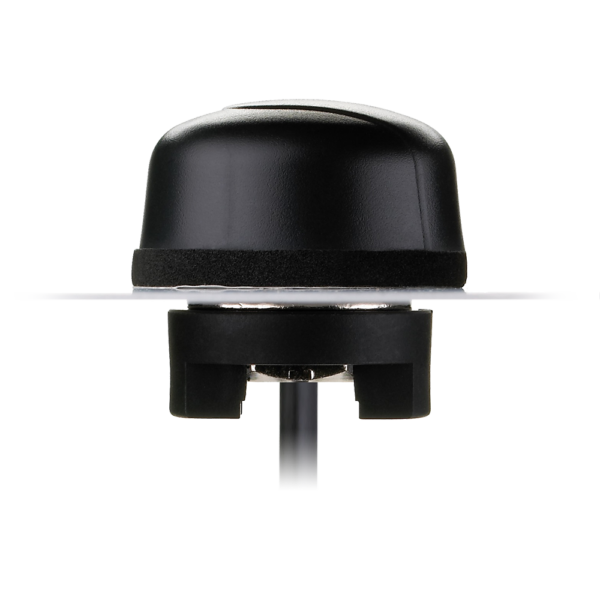

The A.01 Hercules is a high-performance thread mount GPS/GALILEO antenna designed for external use on vehicles and outdoor assets. Designed for heavy duty work with one piece C&C machined nickel steel base plate and threads, there are also convenient side slots for running cables laterally. Durable UV resistant ABS housing is IP65 rated, resistant to vandalism and direct attack. At only 29mm high it complies with the latest EU directives for height restrictions, whilst also enabling covert operation with a diameter of 49mm. Cable lengths, types and connectors are fully customizable. For cable lengths above 5M please use our 40dB LNA A.03 model and low loss cable.
For more information, please contact our customer services team.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, GNSS |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 47.8 |
| Width (mm) | 47.8 |
| Height (mm) | 28.5 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2 |
| Weight (g) | 152 |
| RoHS | Yes |
| Gain (Max) | 32 |
