High Precision GNSS Antenna Performance

Taoglas have tested our range of High Precision GNSS antennas in an open sky view environment to simulate the expected values that an end-user may expect in a field test. All field tests are performed using the ZED-F9P u-Blox module on a static rooftop test set up in an open sky environment for 6 hours. Contact Taoglas for further support on other scenarios in development.

The high precision range of antennas are also tested in an anechoic chamber for Phase Centre Offset (PCO), Phase Centre Variation (PCV) and Group Delay. These are typically the parameters that end users could use to input into their receivers for correction to achieve even greater accuracy down to cm level positional accuracy in the measurements.

Notes:

– Recommended Minimum C/No for Standard Precision Acquisition / Tracking is 26-30/12-15 (dB-Hz)
– Recommended Minimum C/No for RTK is 40 (dB-Hz)



Use the selection filters to refine your High Precision GNSS Antenna options:

Embedded / External

Antenna Type

Single Band / Dual Band / Triple Band / All GNSS Bands / L-Band

Available Bands

0 Part Number Bands External Ground Plane (mm) 2D Acc [2DRMS] without RTK (cm) 2D Acc [2DRMS] with RTK (cm TTFF (s) Antenna Mechanical Dimensions (mm) Weight (g) 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27
1
CGGBP.35.6.A.02

CGGBP.35.6.A.02

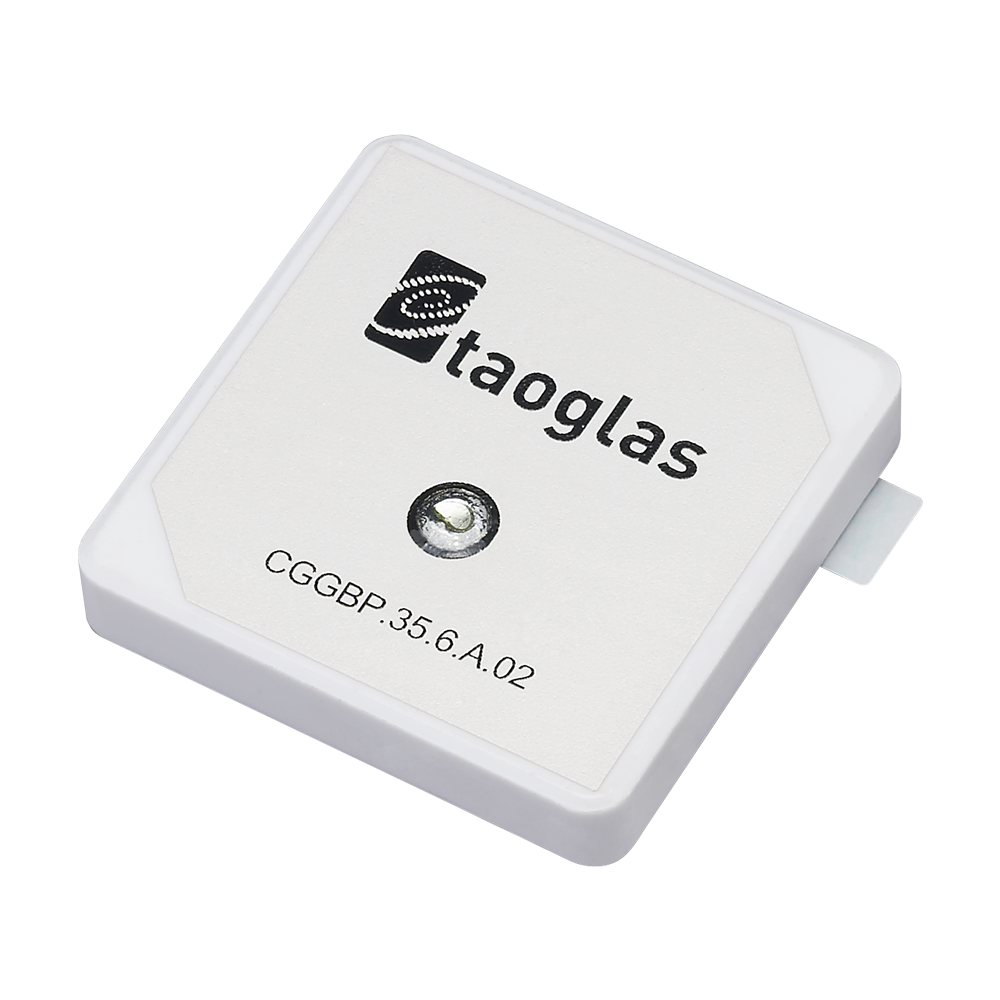

CGGBP.35.6.A.02 35*35*6.5mm GPS/GLONASS/Galileo/BeiDou Patch Antenna
GPS/QZSS (L1)
Galilleo (E1)
Glonass (G1)
Beidou (B1)
 70*70 83 1.4 26 35*35*8 30 embedded passive single-band gps-qzss-l1 # # # galileo-e1 # # # glonass-g1 # # beidou-b1 # # # #
2
HP5010A

HP5010A

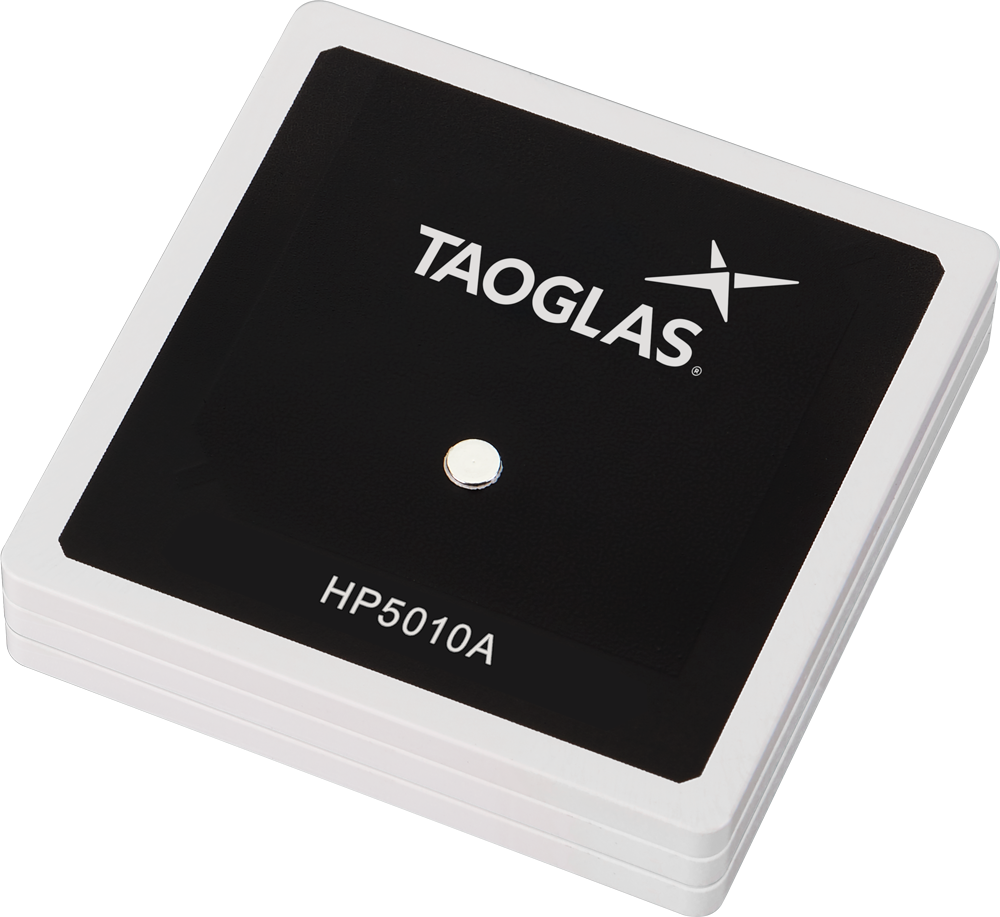

HP5010A – GPS L1/L2/L5, GLONASS & BeiDou Single Feed, Stacked Terrablast Patch
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 70*70 95 20 23 50*50*10 60 embedded passive triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
3
QHA.50.301111

QHA.50.301111

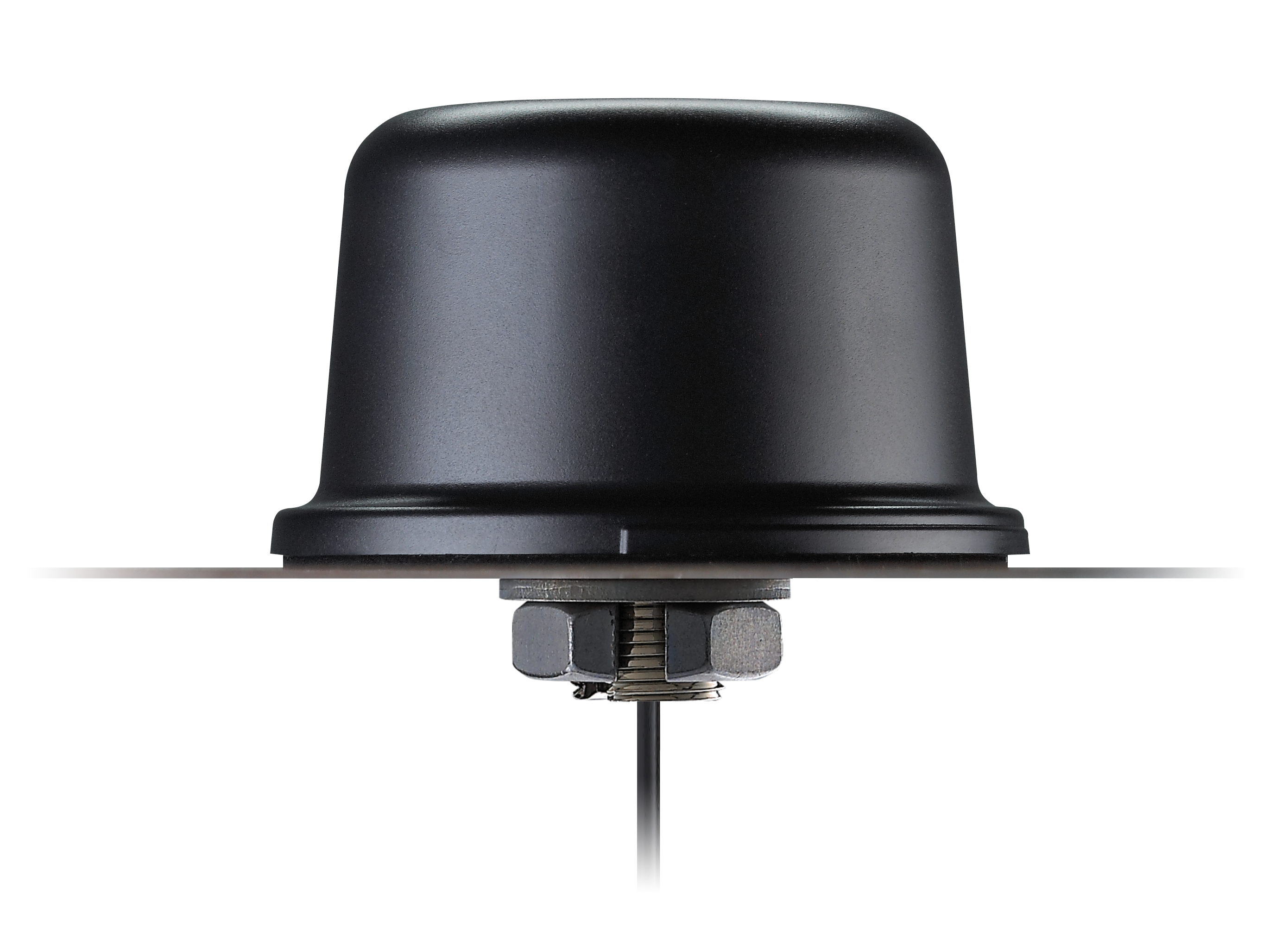

QHA.50.A.301111 Colosseum Passive Quad Helix covering all major GNSS bands
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
QZSS (L6)
Galilleo (E1/E5a/E5b,E6)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b/B3)
 300*300 133 1.4 35 94*94*58 252 external passive all-gnss-bands gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 qzss-l6 galileo-e1 galileo-e5a galileo-e5b galileo-e6 glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b beidou-b3 #
4
QHA.50.301111

QHA.50.301111

QHA.50.A.301111 Colosseum Passive Quad Helix covering all major GNSS bands
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
QZSS (L6)
Galilleo (E1/E5a/E5b,E6)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b/B3)
 Free Space 105 1.4 25 94*94*57 252 external passive all-gnss-bands gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 qzss-l6 galileo-e1 galileo-e5a galileo-e5b galileo-e6 glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b beidou-b3 #
5
GPSF.36.7.A.30

GPSF.36.7.A.30

GPSF.36 GPS L1/L2 36*36*7mm Single Feed Stacked Patch Passive Antenna
GPS/QZSS (L1/L2)
Galilleo (E1/E5b)
Glonass (G1/G2)
Beidou (B1/B2b)
 70*70 150 12 33 36*36*7 23.4 embedded passive dual-band gps-qzss-l1 gps-qzss-l2 # # galileo-e1 # galileo-e5b # glonass-g1 glonass-g2 # beidou-b1 # beidou-b2b # #
6
GGBLA.125.A

GGBLA.125.A

GGBLA.125.A – GPS L1/L2/L5/L6, GLONASS, BeiDou Ceramic Loop Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
QZSS (L6)
Galilleo (E1/E5a/E5b,E6)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b/B3)
 40*80 102 10 32 10*3*1.5 0.17 embedded passive all-gnss-bands gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 qzss-l6 galileo-e1 galileo-e5a galileo-e5b galileo-e6 glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b beidou-b3 #
7
AGPSF.36C.07.0100C

AGPSF.36C.07.0100C

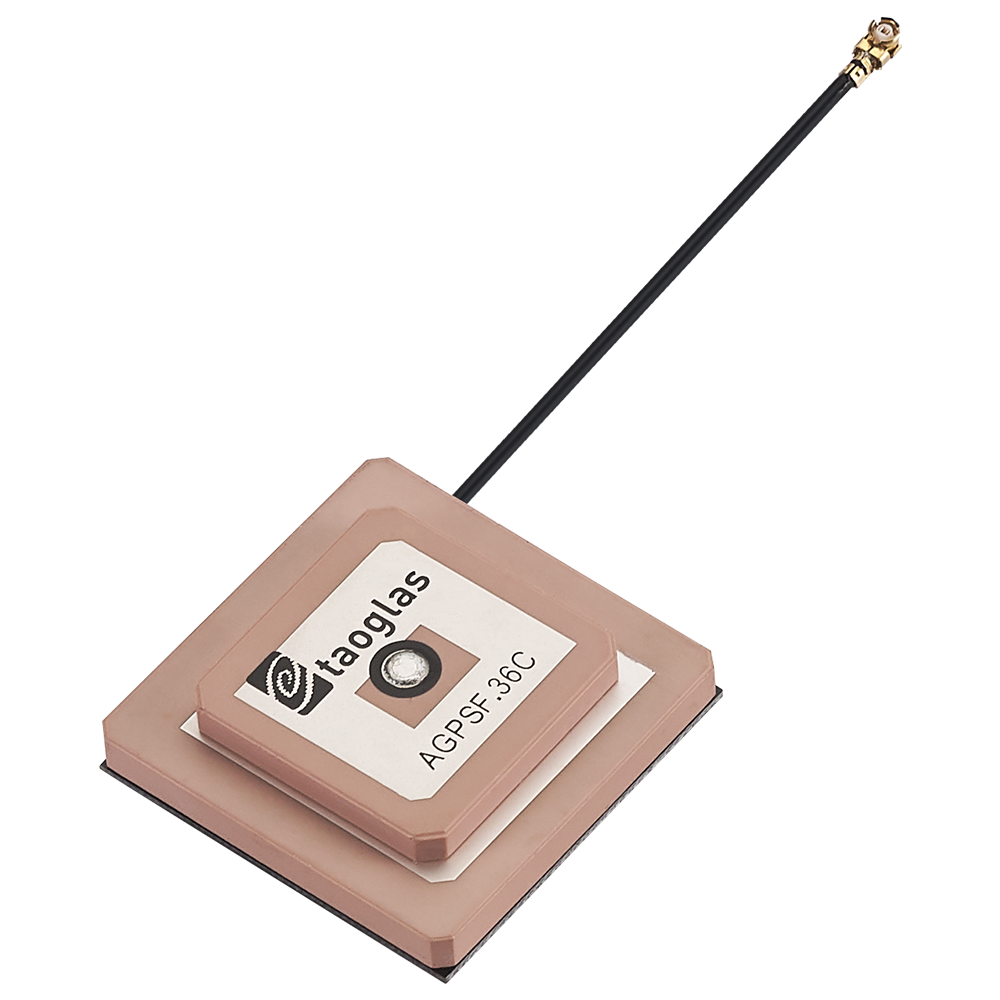

AGPSF.36C.07.0100C Active GPS L1/L2 Low Profile Stacked Patch Antenna, I-PEX MHF® I
GPS/QZSS (L1/L2)
Galilleo (E1/E5b)
Glonass (G1/G2)
Beidou (B1/B2b)
 N/A 81 1.8 20.8 36*36*11 32 embedded active dual-band gps-qzss-l1 gps-qzss-l2 # # galileo-e1 # galileo-e5b # glonass-g1 glonass-g2 # beidou-b1 # beidou-b2b # #
8
ADFGP.50A.07.0100C

ADFGP.50A.07.0100C

ADFGP.50A – Embedded Active GNSS Dual Stacked Patch Antenna, I-PEX MHF® I (U.FL)
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 N/A 69 1.4 12 50*50*16.8 95.5 embedded active triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
9

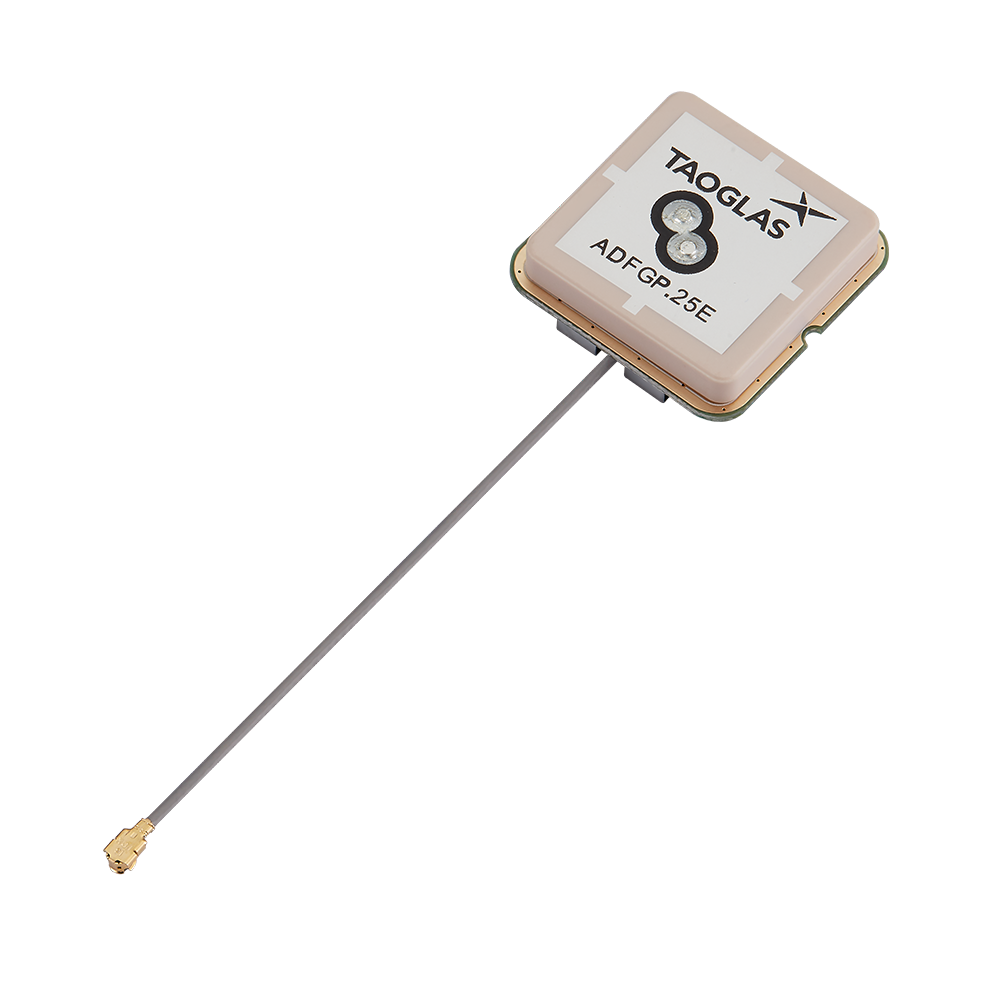

ADFGP.25A.07.0060A

ADFGP.25A.07.0060A

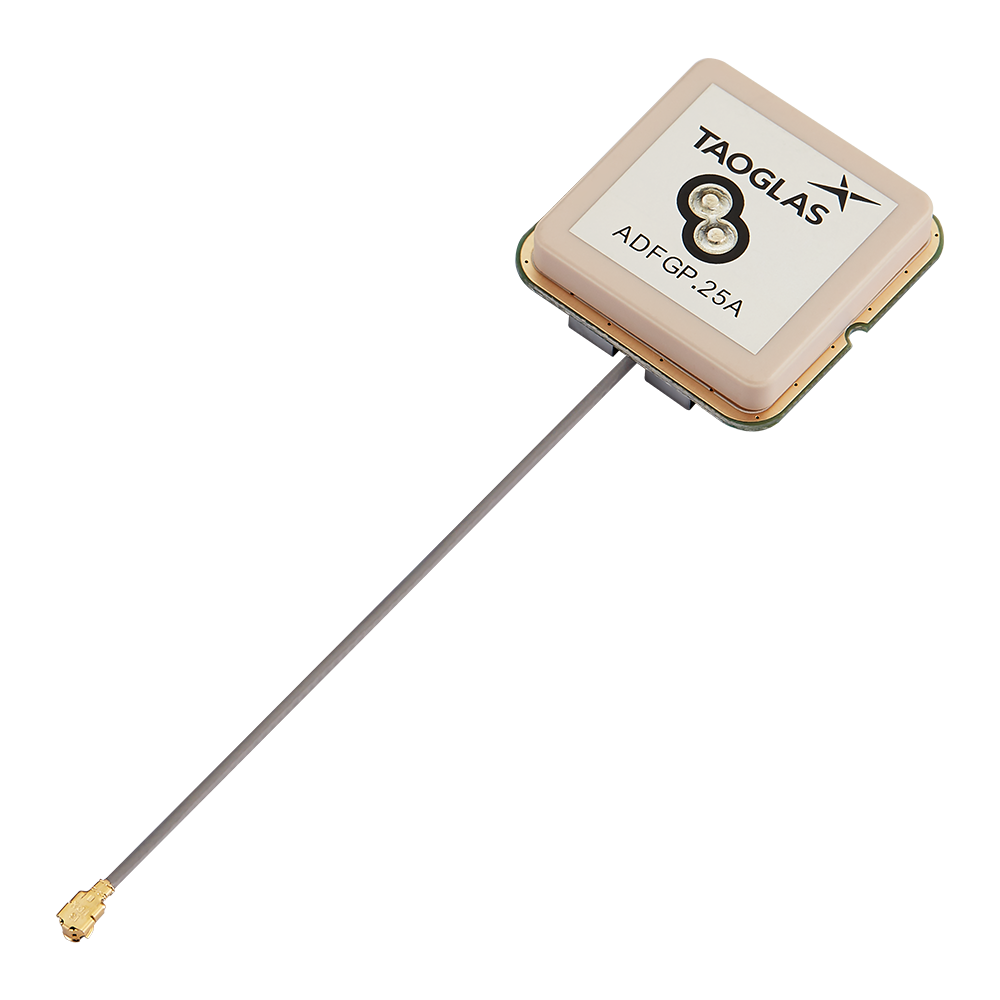

ADFGP.25A – Embedded Dual Pin Active GNSS Patch Antenna, I-PEX MHF® I (U.FL)
GPS/QZSS (L1)
Galilleo (E1)
Glonass (G1)
Beidou (B1)
 N/A 76 1.4 57 25*25*7.5 13.5 embedded active single-band gps-qzss-l1 # # # galileo-e1 # # # glonass-g1 # # beidou-b1 # # # #
10
AA.180.501111

AA.180.501111

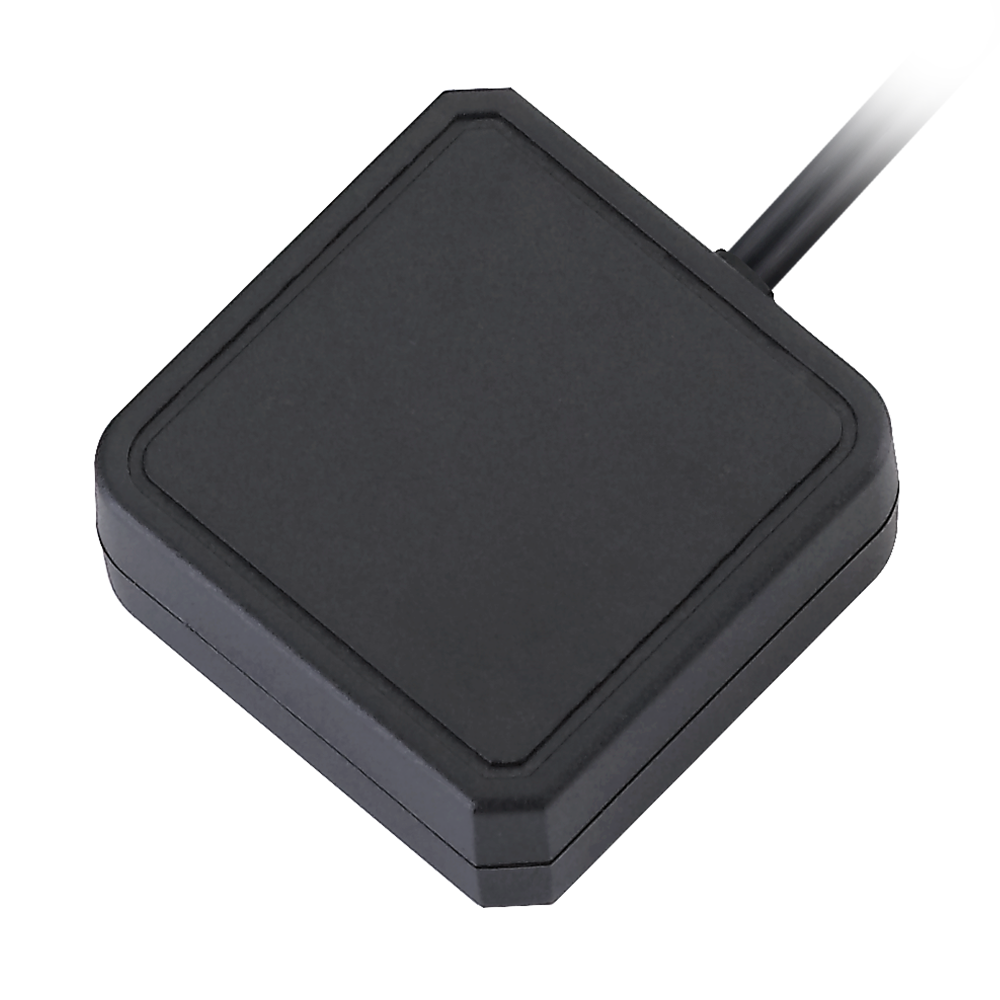

AA.180 Magnetic Mount, Low Axial Ratio Dual-Pin GNSS Patch Antenna
GPS/QZSS (L1)
Galilleo (E1)
Glonass (G1)
Beidou (B1)
 Free Space 80 1.4 24 35*35*15 98 external active single-band gps-qzss-l1 # # # galileo-e1 # # # glonass-g1 # # beidou-b1 # # # #
11
AA.180.501111

AA.180.501111

AA.180 Magnetic Mount, Low Axial Ratio Dual-Pin GNSS Patch Antenna
GPS/QZSS (L1)
Galilleo (E1)
Glonass (G1)
Beidou (B1)
 300*300 75 2 21 35*35*16 98 external active single-band gps-qzss-l1 # # # galileo-e1 # # # glonass-g1 # # beidou-b1 # # # #
12
AA.175.301111

AA.175.301111

Magma X – AA.175 – IP67 GPS L1/L2 GLONASS Magnetic Mount Antenna
GPS/QZSS (L1/L2)
Galilleo (E1/E5b)
Glonass (G1/G2)
Beidou (B1/B2b)
 300*300 100 4 24 50*50*17 98 external active dual-band gps-qzss-l1 gps-qzss-l2 # # galileo-e1 # galileo-e5b # glonass-g1 glonass-g2 # beidou-b1 # beidou-b2b # #
13
AA.171.301112

AA.171.301112

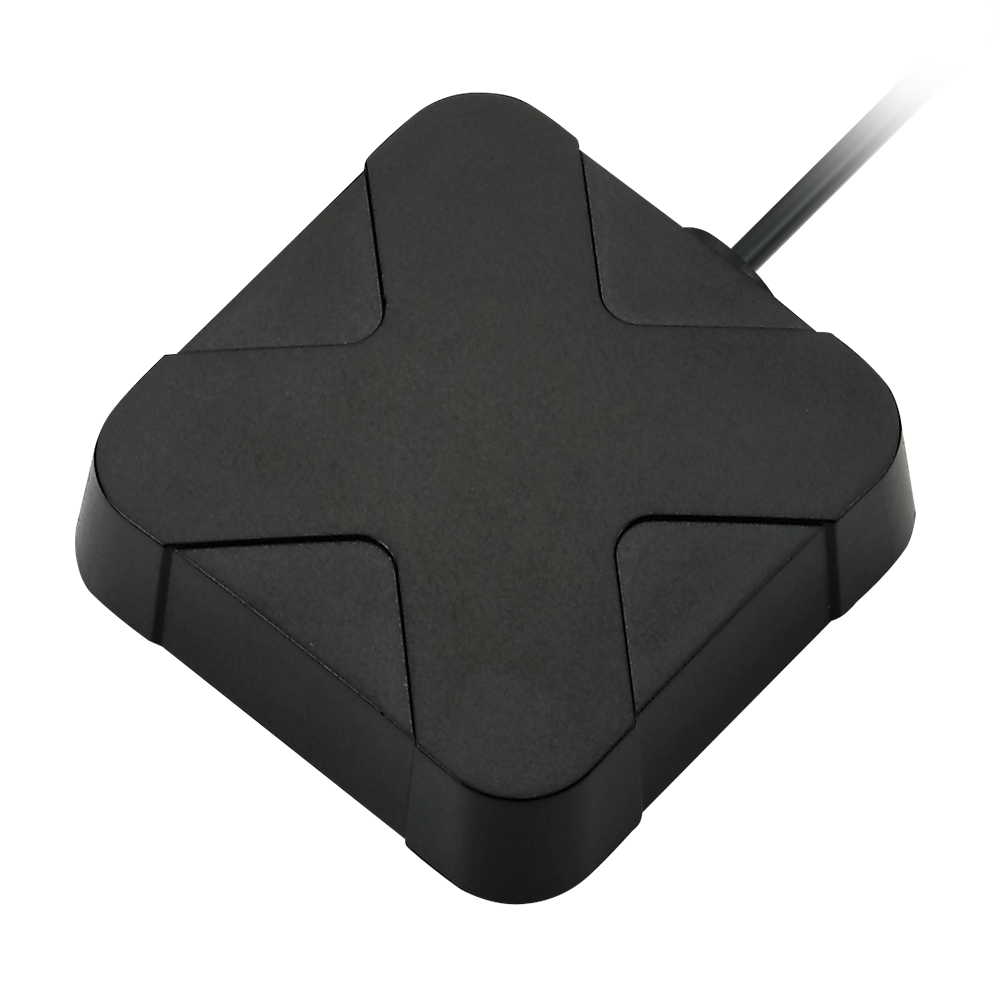

AA.171 – MagmaX IP67 GPS/GLONASS/Galileo/BeiDou Antenna Dual pin patch, 3M RG-174
GPS/QZSS (L1)
Galilleo (E1)
Glonass (G1)
Beidou (B1)
 300*300 80 1.4 20 53*50*18 90 external active single-band gps-qzss-l1 # # # galileo-e1 # # # glonass-g1 # # beidou-b1 # # # #
14
AA.171.301111

AA.171.301111

AA.171 – MagmaX IP67 GPS/GLONASS/Galileo/BeiDou Antenna Dual pin patch, 3M RG-174
GPS/QZSS (L1)
Galilleo (E1)
Glonass (G1)
Beidou (B1)
 Free Space 81 1.4 21 53*50*17 90 external active single-band gps-qzss-l1 # # # galileo-e1 # # # glonass-g1 # # beidou-b1 # # # #
15
A.80.A.101111

A.80.A.101111

Bolt A.80 GPS L1 & L2 Permanent Mount Antenna 1m RG-174, SMA(M) ST 94.3*25.4mm
GPS/QZSS (L1/L2)
Galilleo (E1/E5b)
Glonass (G1/G2)
Beidou (B1/B2b)
 Free Space 62 1.8 24 94*94*25 175 external active dual-band gps-qzss-l1 gps-qzss-l2 # # galileo-e1 # galileo-e5b # glonass-g1 glonass-g2 # beidou-b1 # beidou-b2b # #
16
A.80.A.101111

A.80.A.101111

Bolt A.80 GPS L1 & L2 Permanent Mount Antenna 1m RG-174, SMA(M) ST 94.3*25.4mm
GPS/QZSS (L1/L2)
Galilleo (E1/E5b)
Glonass (G1/G2)
Beidou (B1/B2b)
 300*300 55 1.4 22 94*94*26 175 external active dual-band gps-qzss-l1 gps-qzss-l2 # # galileo-e1 # galileo-e5b # glonass-g1 glonass-g2 # beidou-b1 # beidou-b2b # #
17
XAHP.50.A.301111

XAHP.50.A.301111

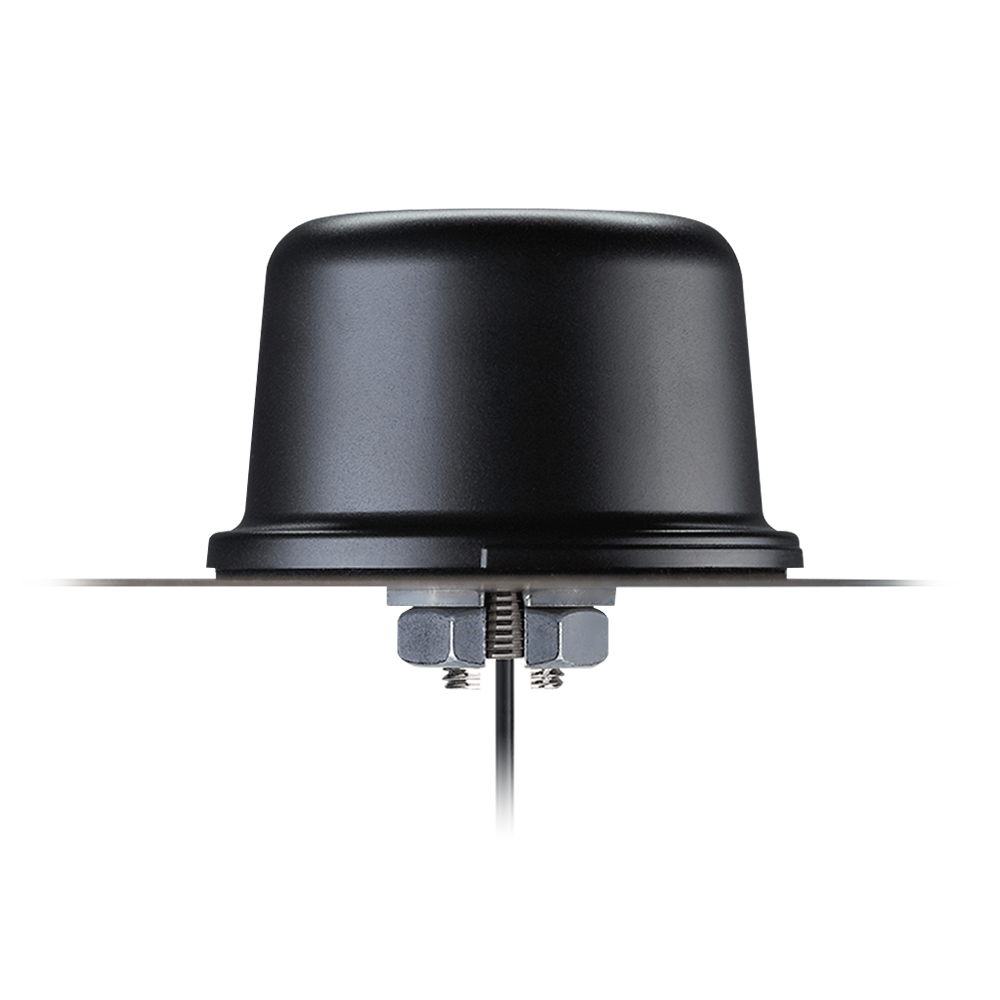

Colosseum X – XAHP.50 Active Multi-Band GNSS External Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
QZSS (L6)
Galilleo (E1/E5a/E5b,E6)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b/B3)
 Free Space 56 1.8 20 58*95 395 external active all-gnss-bands gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 qzss-l6 galileo-e1 galileo-e5a galileo-e5b galileo-e6 glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b beidou-b3 #
18
XAHP.50.A.301111

XAHP.50.A.301111

Colosseum X – XAHP.50 Active Multi-Band GNSS External Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
QZSS (L6)
Galilleo (E1/E5a/E5b,E6)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b/B3)
 300*300 54 1.1 19 58*95 395 external active all-gnss-bands gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 qzss-l6 galileo-e1 galileo-e5a galileo-e5b galileo-e6 glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b beidou-b3 #
19
AA.200.151111

AA.200.151111

Magma X2 – AA.200 – Active Multiband GNSS Magnetic Mount Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 Free Space 67.4 1.1 23 63*67*26.5 160 external active triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
20
AA.200.151111

AA.200.151111

Magma X2 – AA.200 – Active Multiband GNSS Magnetic Mount Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 300*300 45.9 0.59 19 63*67*26.5 160 external active triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
21
GPDF5012.A

GPDF5012.A

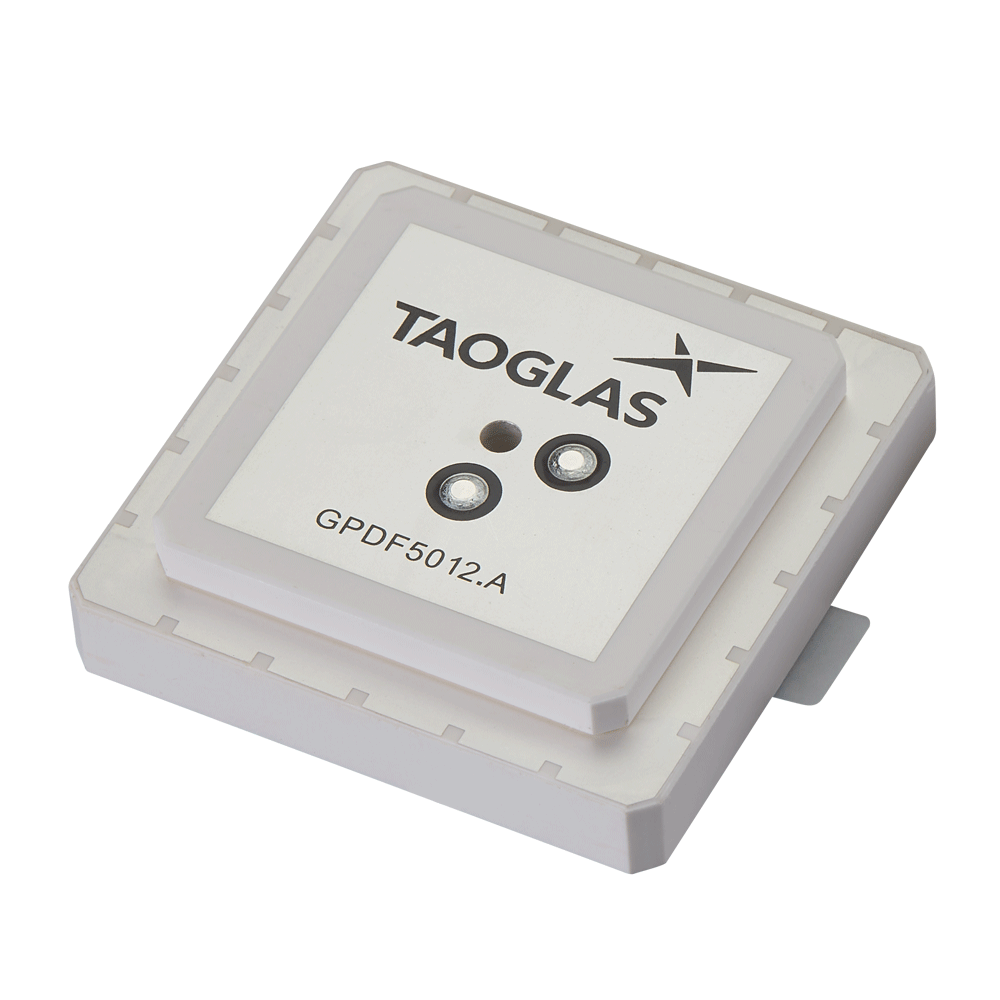

GPDF5012.A – Multiband High Precision GNSS Stacked Patch Antenna 50*50*12 mm
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 70*70 56.4 1.2 32 50*50*12 86 embedded passive triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
22
GPDF5012.A

GPDF5012.A

GPDF5012.A – Multiband High Precision GNSS Stacked Patch Antenna 50*50*12 mm
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b/E6)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b/B3)
 70*70 247.06 40.08 27 50*50*12 86 embedded passive triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
23
GPDF6010.A

GPDF6010.A

GPDF6010.A – All-band High Precision GNSS Stacked Patch Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 100 diameter 153.86 94.93 33 50*50*12 86 embedded passive triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
24
GVLB258.A

GVLB258.A

GVLB258.A – Accura GNSS L1/L5 Stacked Patch Multi-Band Antenna
GPS/QZSS (L1)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a)
Glonass (G1)
Beidou (B1)
 70*70 107.98 23.42 25 25*25*8 24 embedded passive dual-band gps-qzss-l1 # gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # # # # # # # # #
25
AGVLB.25A

AGVLB.25A

AGVLB.25A – GNSS L1 / L5 Active Stacked Patch Antenna
GPS/QZSS (L1)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a)
Glonass (G1)
Beidou (B1)
 70*70 109.02 42.47 18 25*25*11.9 25 embedded active dual-band gps-qzss-l1 # gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # # # # # # # # #
26
GGBLA.125.A

GGBLA.125.A

GGBLA.125.A – GPS L1/L2/L5/L6, GLONASS, BeiDou Ceramic Loop Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
QZSS (L6)
Galilleo (E1/E5a/E5b,E6)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b/B3)
 40*80 174.61 28.76 23 10*3*1.5 0.17 embedded passive all-gnss-bands gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 qzss-l6 galileo-e1 galileo-e5a galileo-e5b galileo-e6 glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b beidou-b3 #
27
AA.200.151111

AA.200.151111

Magma X2 – AA.200 – Active Multiband GNSS Magnetic Mount Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 Free Space 121.53 31.73 23 63*67*26.5 160 external active triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
28
AA.200.151111

AA.200.151111

Magma X2 – AA.200 – Active Multiband GNSS Magnetic Mount Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 300*300 81.66 20.7 21 63*67*26.5 160 external active triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
29
ADFGP.50A.07.0100C

ADFGP.50A.07.0100C

ADFGP.50A – Embedded Active GNSS Dual Stacked Patch Antenna, I-PEX MHF® I (U.FL)
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 Free Space 113.73 63.35 21 50*50*16.8 95.5 embedded active triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
30
ADFGP.50A.07.0100C

ADFGP.50A.07.0100C

ADFGP.50A – Embedded Active GNSS Dual Stacked Patch Antenna, I-PEX MHF® I (U.FL)
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
 300*300 76.17 7.86 24 50*50*16.8 95.5 embedded active triple-band gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 # galileo-e1 galileo-e5a galileo-e5b # glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b # #
31
ADFGP.60A.01.0150D

ADFGP.60A.01.0150D

ADFGP.60A – Active All Band GNSS High Precision Patch Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
L-Band
 Free Space 122.84 34 22 80*80*19.1 73 embedded active gnss-bands-l-band-30–15 gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 qzss-l6 galileo-e1 galileo-e5a galileo-e5b galileo-e6 glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b beidou-b3 l-band
32
ADFGP.60A.01.0150D

ADFGP.60A.01.0150D

ADFGP.60A – Active All Band GNSS High Precision Patch Antenna
GPS/QZSS (L1/L2)
GPS/QZSS/IRNSS (L5)
Galilleo (E1/E5a/E5b)
Glonass (G1/G2/G3)
Beidou (B1/B2a/B2b)
L-Band
 150 diameter 113.34 12.48 22 80*80*19.1 73 embedded active gnss-bands-l-band-30–15 gps-qzss-l1 gps-qzss-l2 gps-qzss-irnss-l5 qzss-l6 galileo-e1 galileo-e5a galileo-e5b galileo-e6 glonass-g1 glonass-g2 glonass-g3 beidou-b1 beidou-b2a beidou-b2b beidou-b3 l-band
